G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Service and Repair
>>
Exploded View
Exploded View

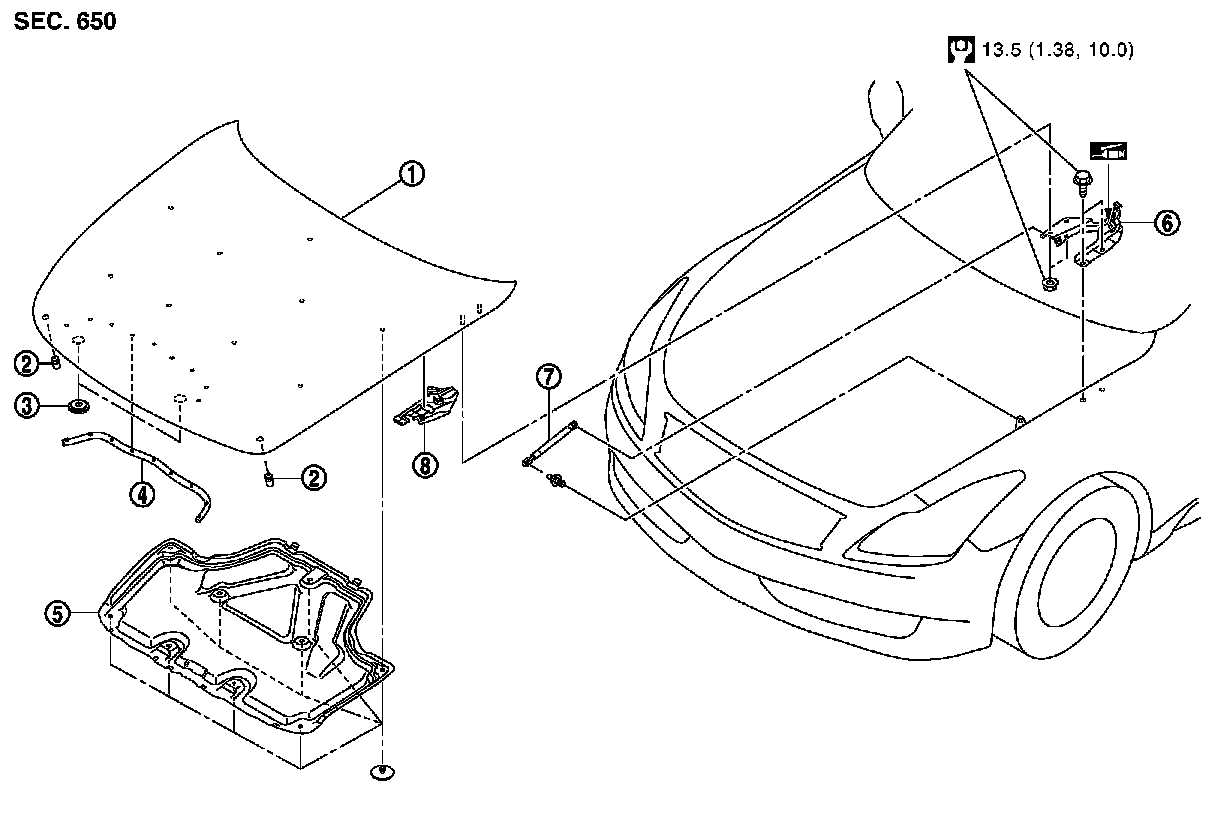

HOOD
HOOD

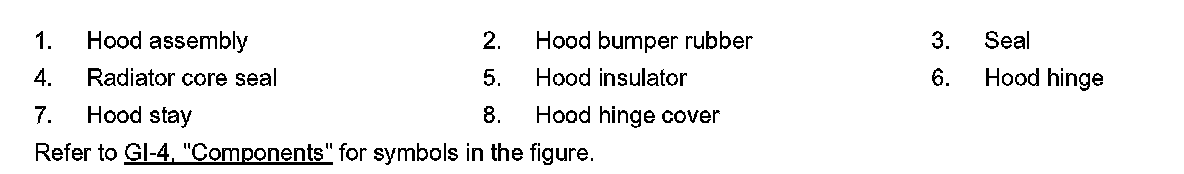

ASSEMBLY : Exploded View
