Combination Switch: Locations
TURN SIGNAL AND HAZARD WARNING LAMPS

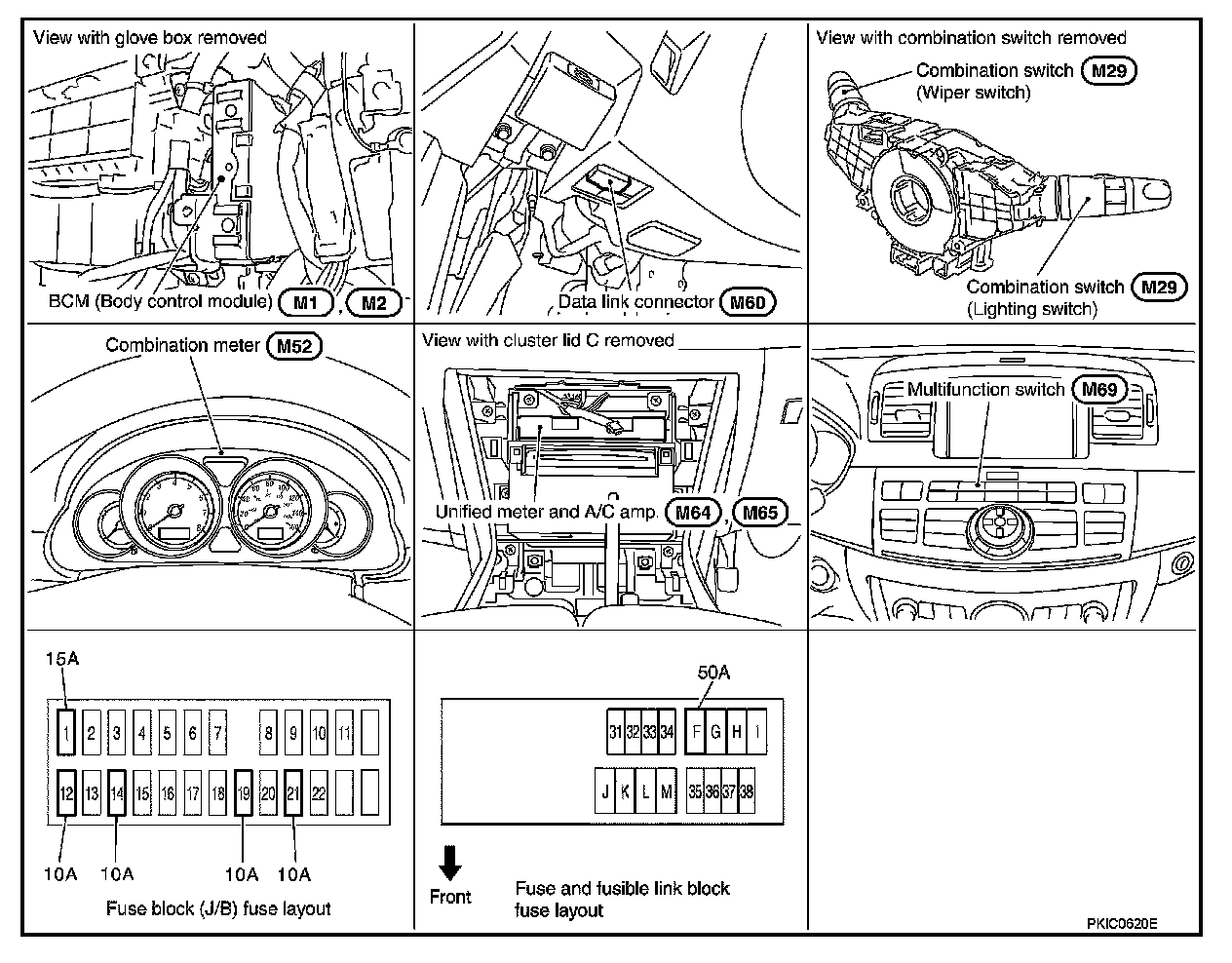

Component Parts and Harness Connector Location
