Home
>>
Infiniti
>>
2009
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Engine Lubrication
>>

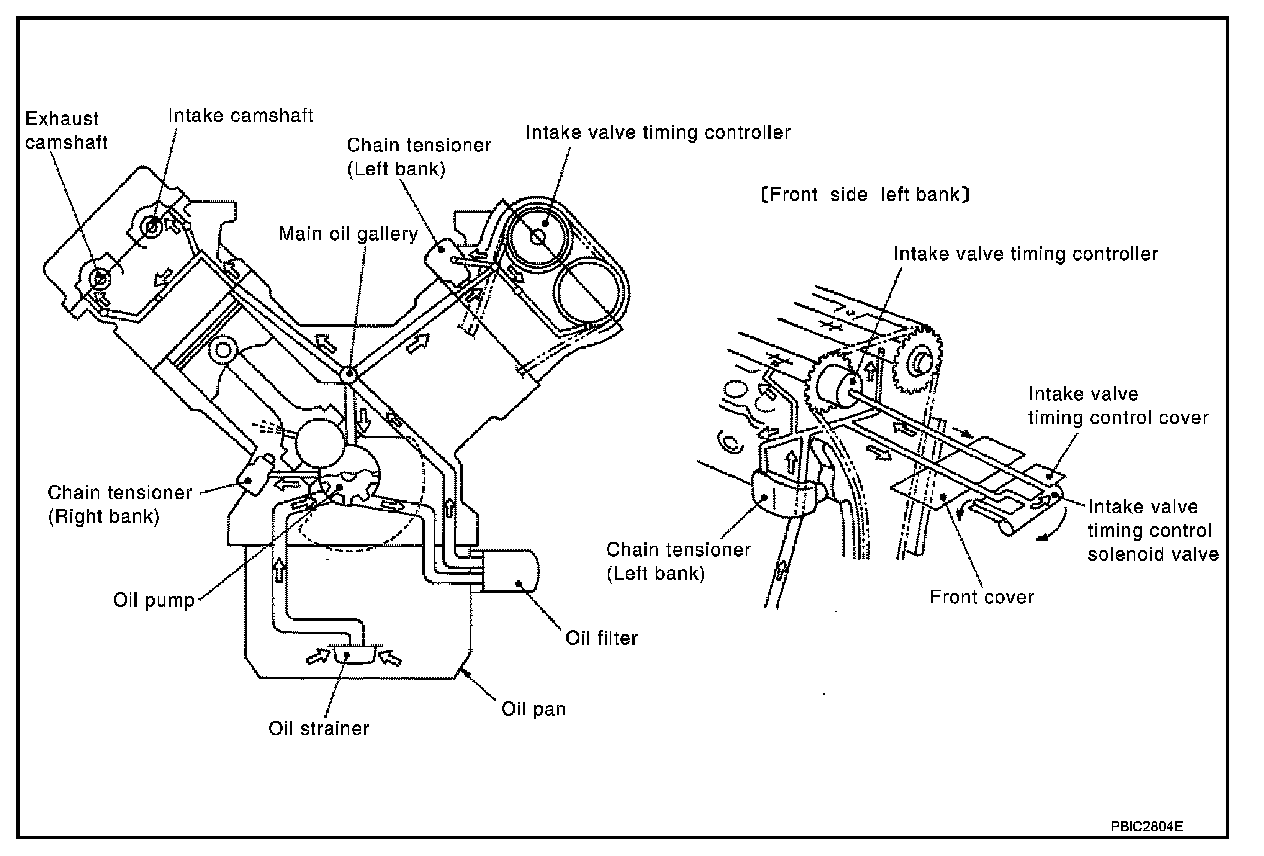

Lubrication Circuit
Lubrication Circuit
LUBRICATION SYSTEM
Lubrication Circuit
