Home
>>
Infiniti
>>
2009
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Service and Repair
>>
Video Distributor
>>
Reference Value
Reference Value
VIDEO DISTRIBUTOR
Reference Value

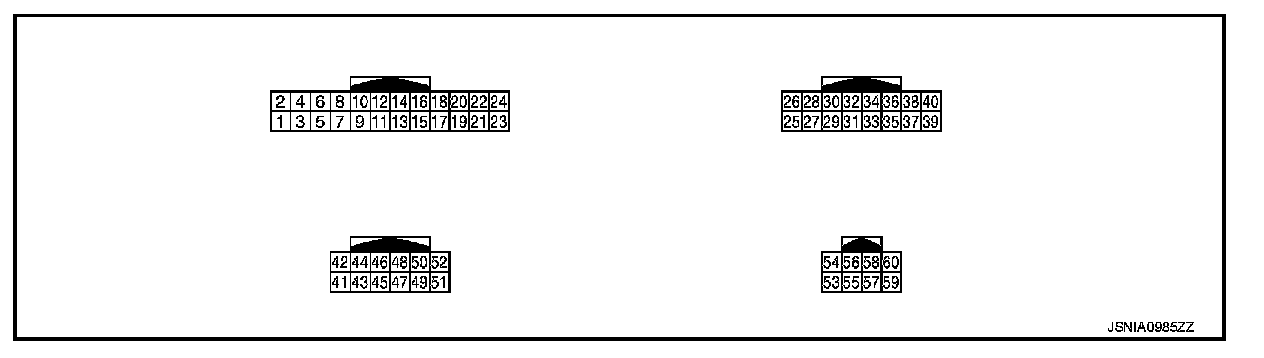

TERMINAL LAYOUT

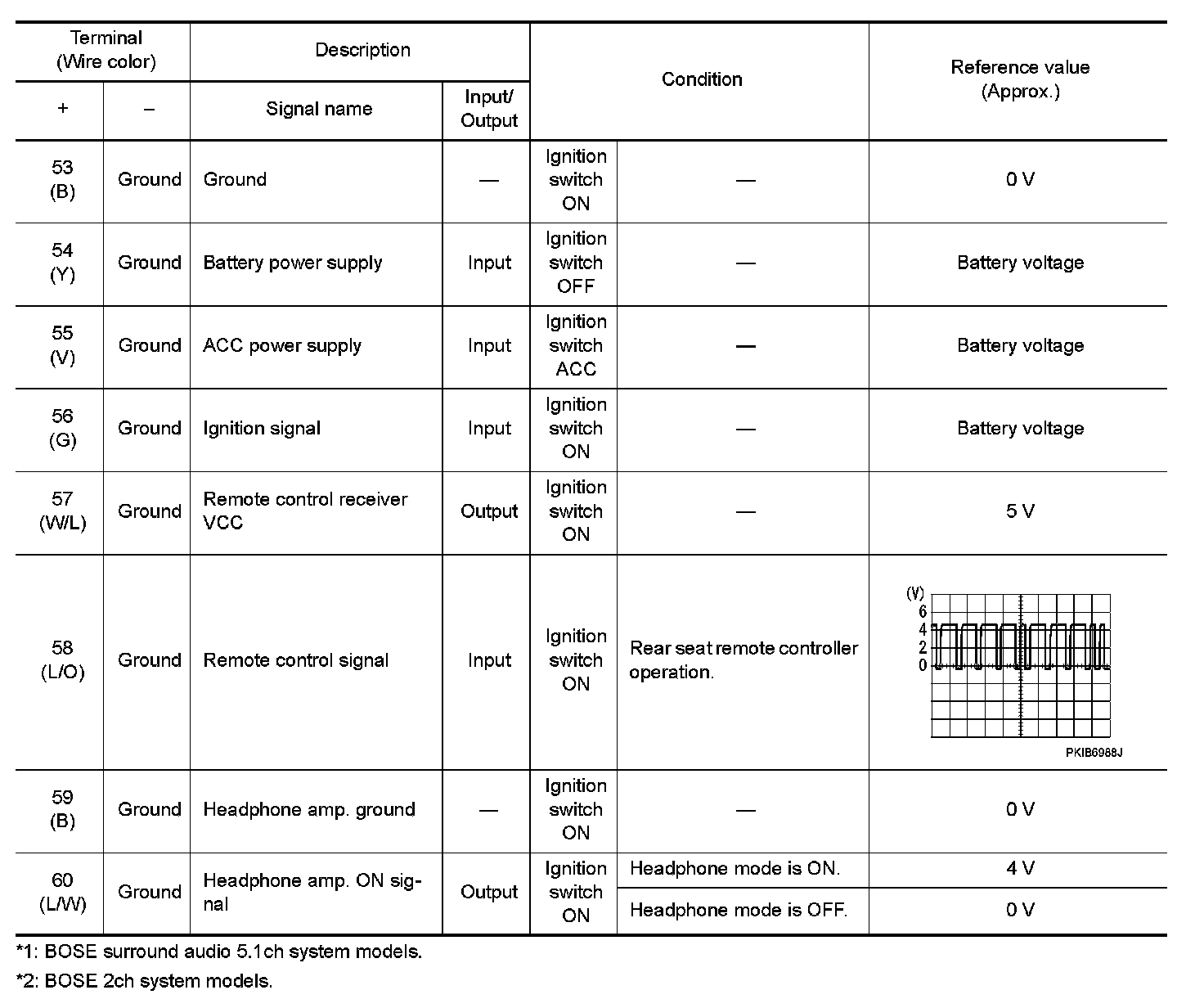

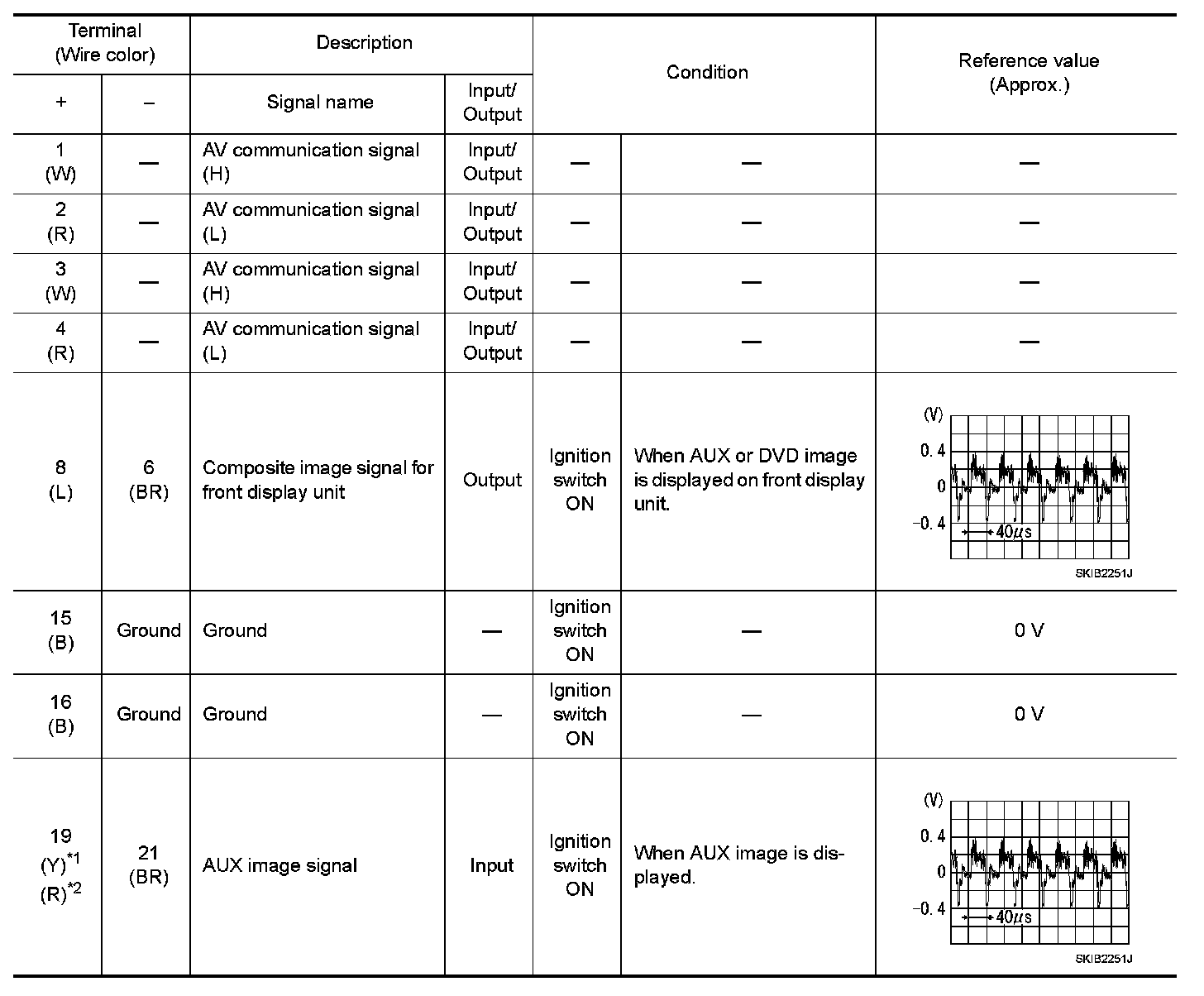

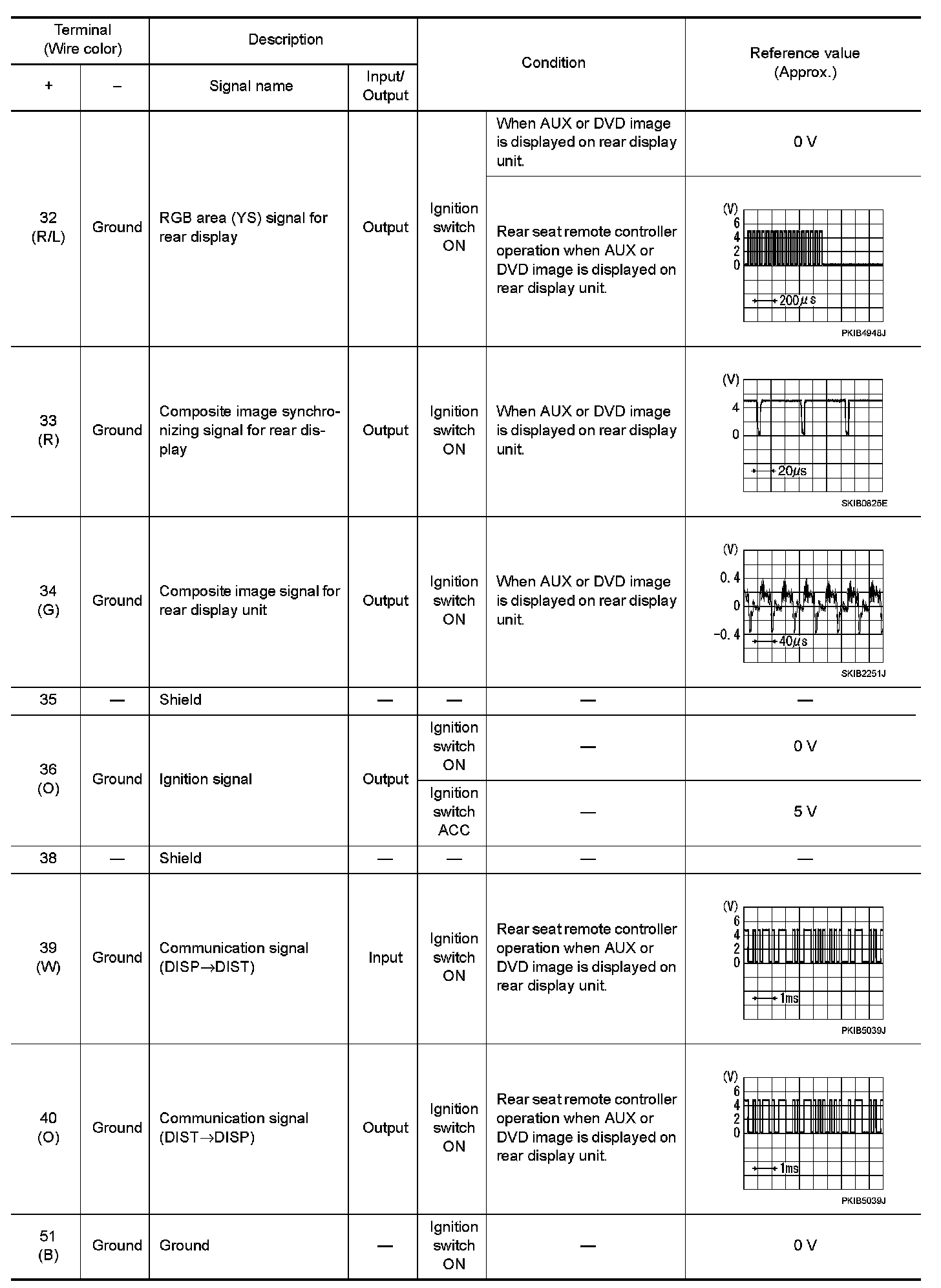

PHYSICAL VALUES
