Home
>>
Infiniti
>>
2009
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Front Display Unit
>>
Without Mobile Entertainment System
>>
With Navigation
With Navigation
FRONT DISPLAY UNIT
WITH NAVIGATION : Reference Value

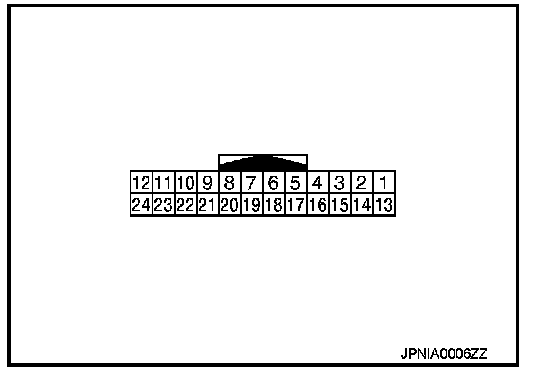

TERMINAL LAYOUT

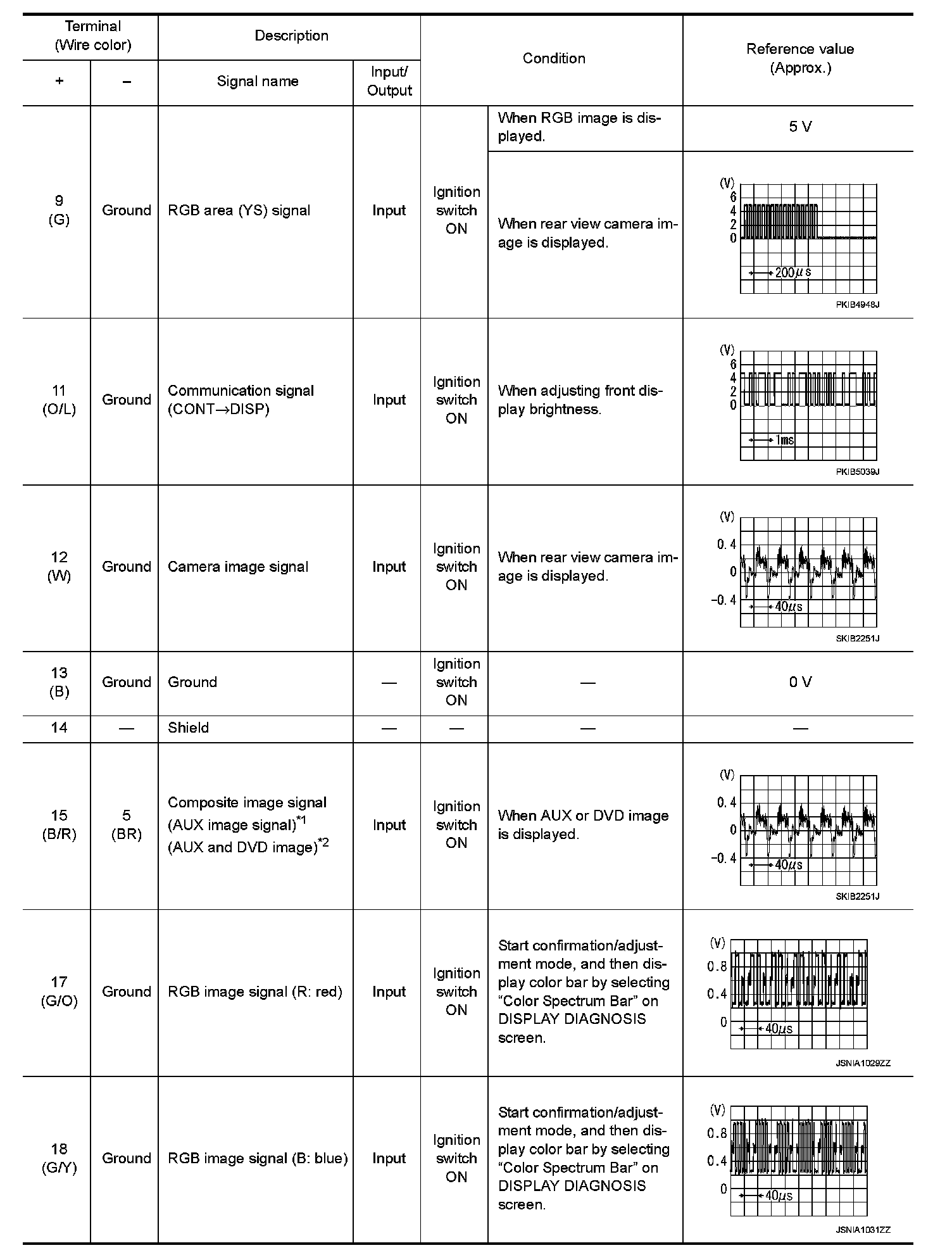

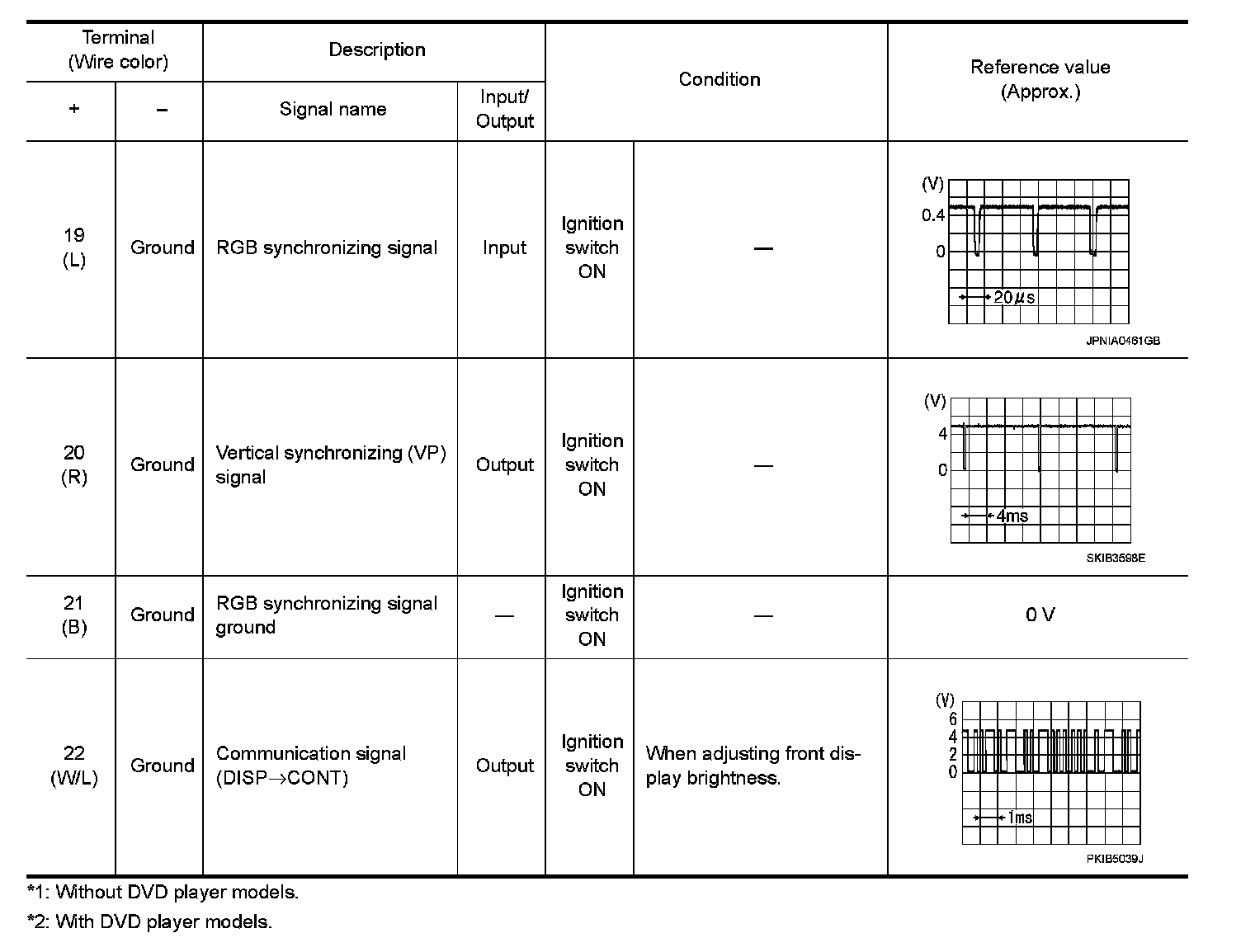

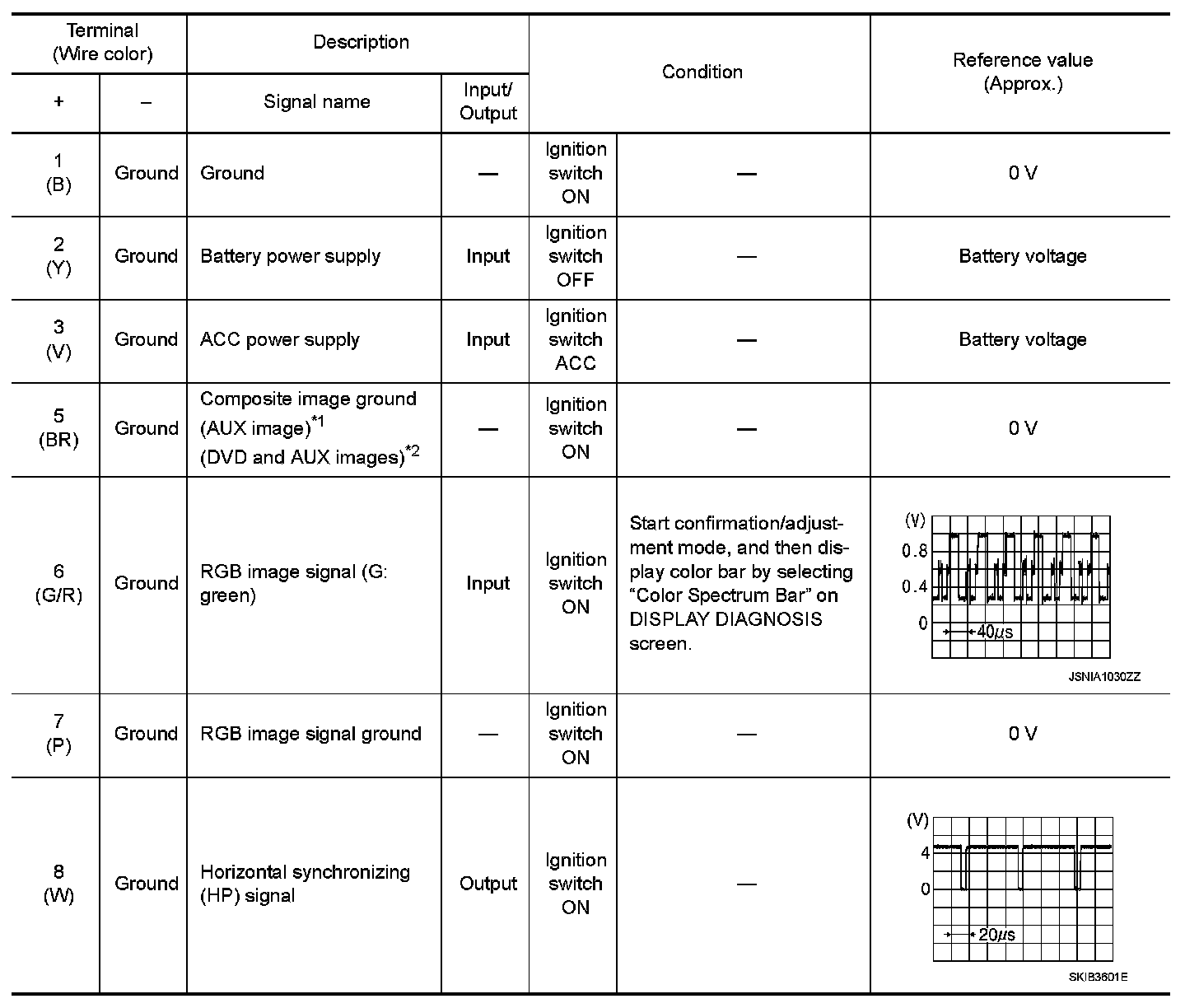

PHYSICAL VALUES
