With Mobile Entertainment System





FRONT DISPLAY UNIT


Reference Value
TERMINAL LAYOUT

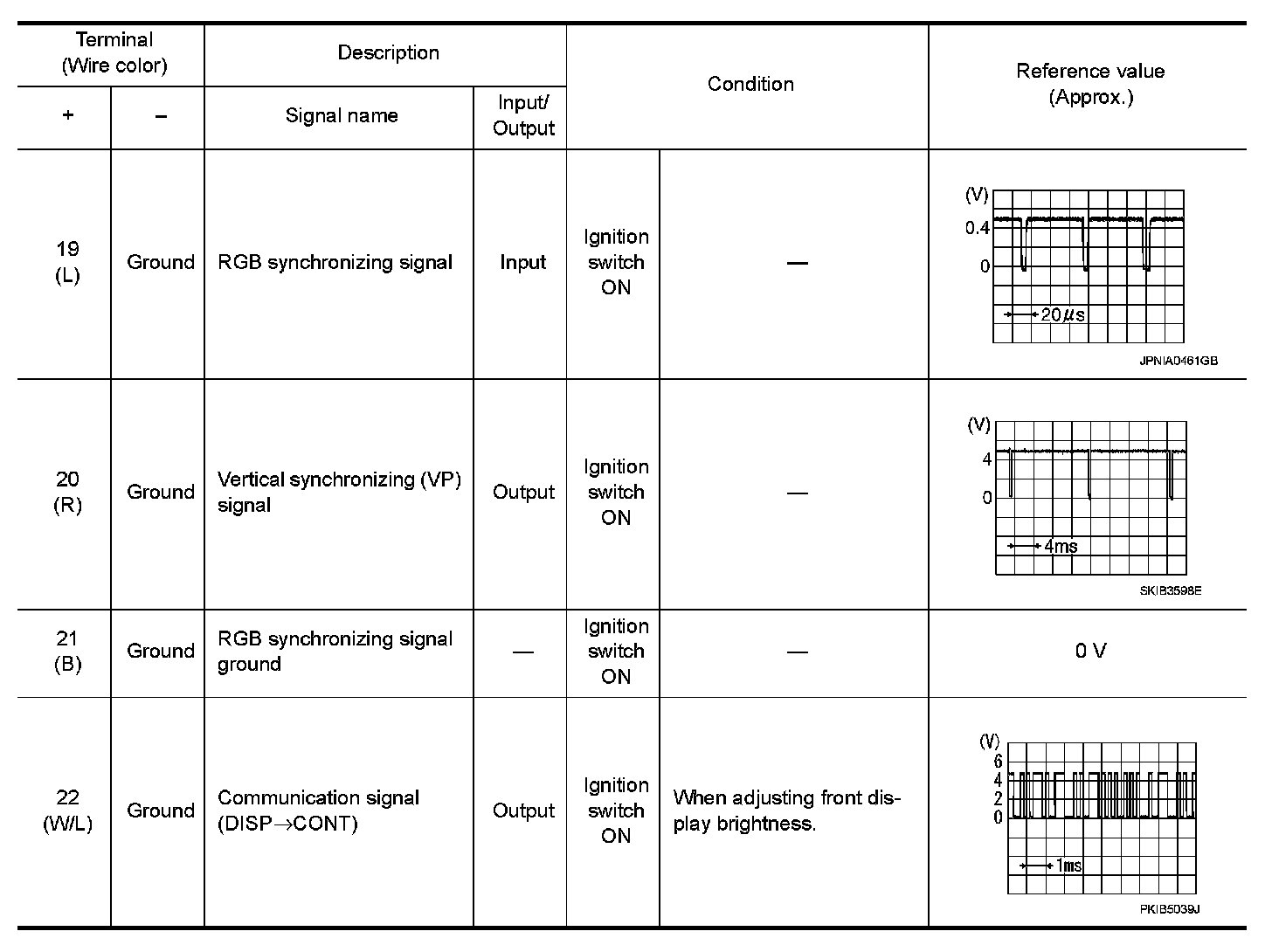

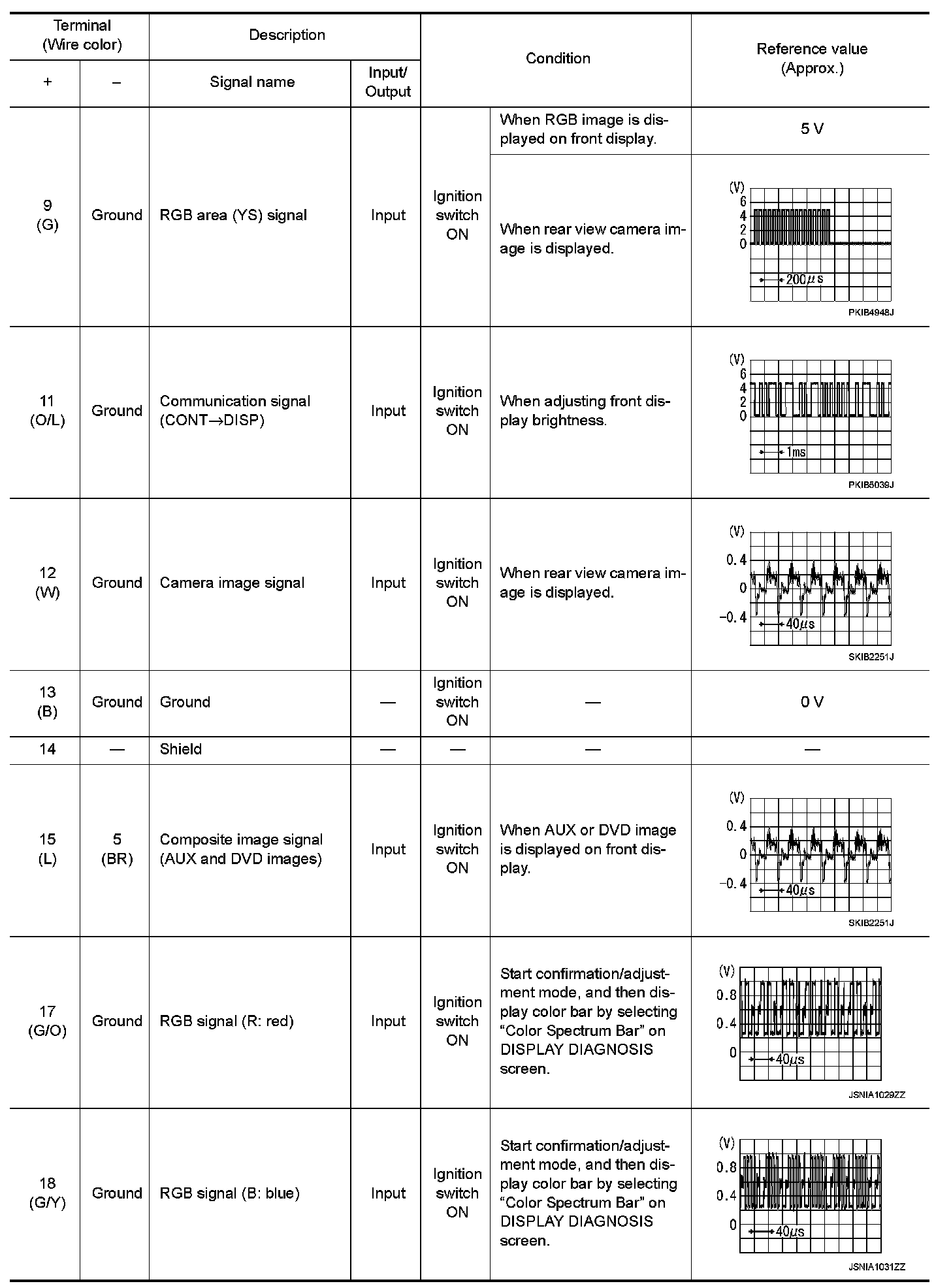

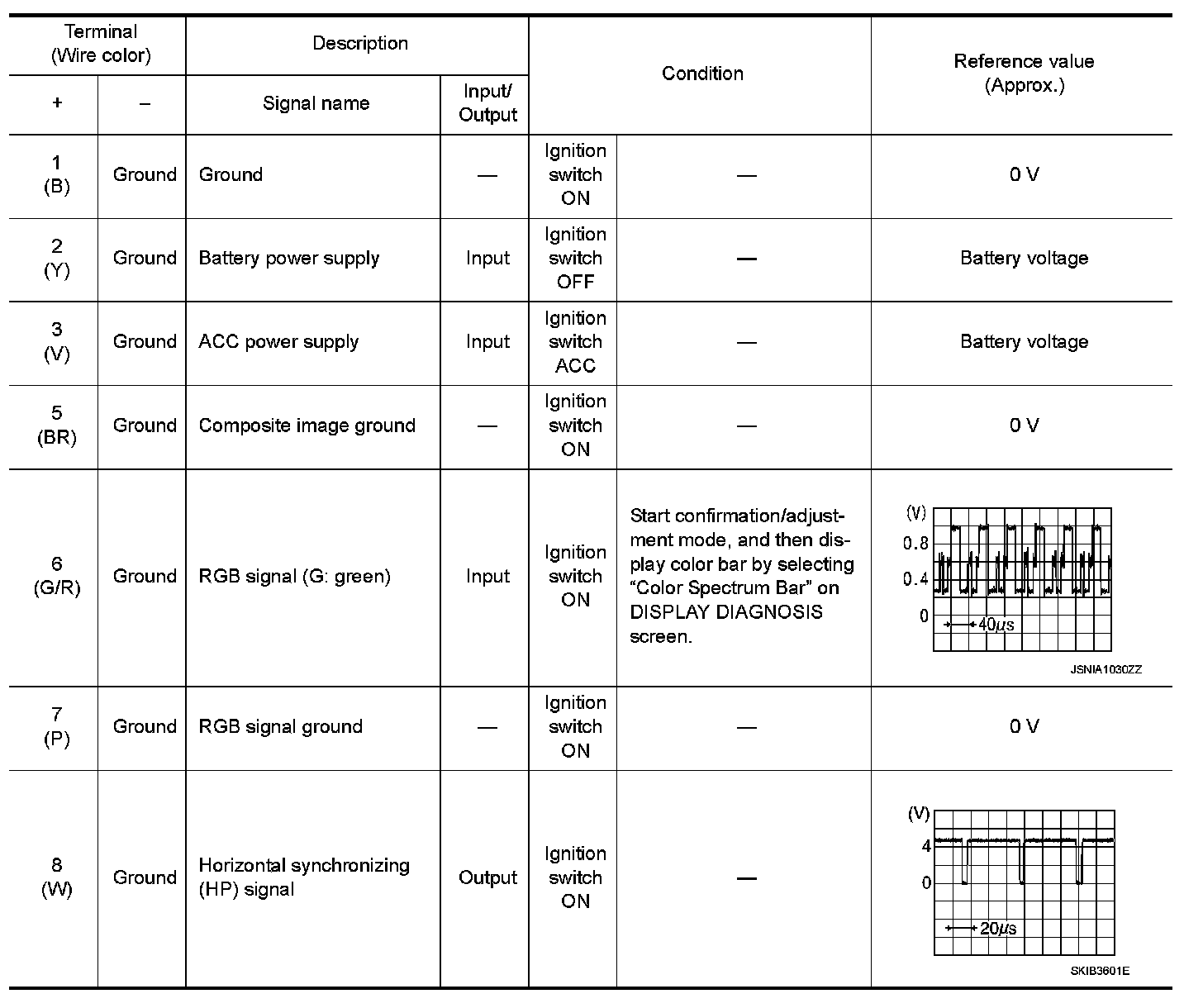

PHYSICAL VALUES
