Schematic - Bose Audio 2CH System
Schematic - Bose Audio 2CH System
REAR DISPLAY UNIT

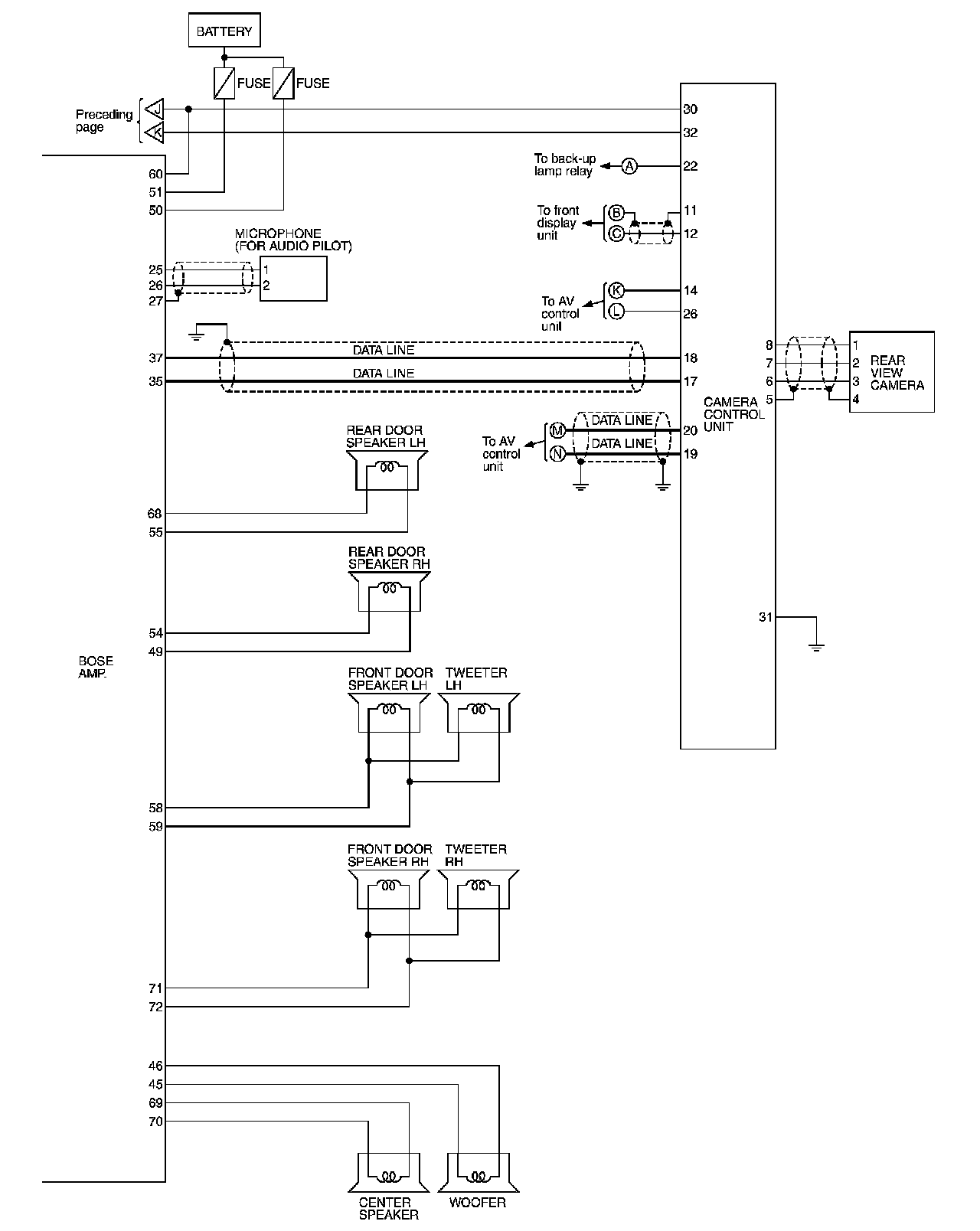

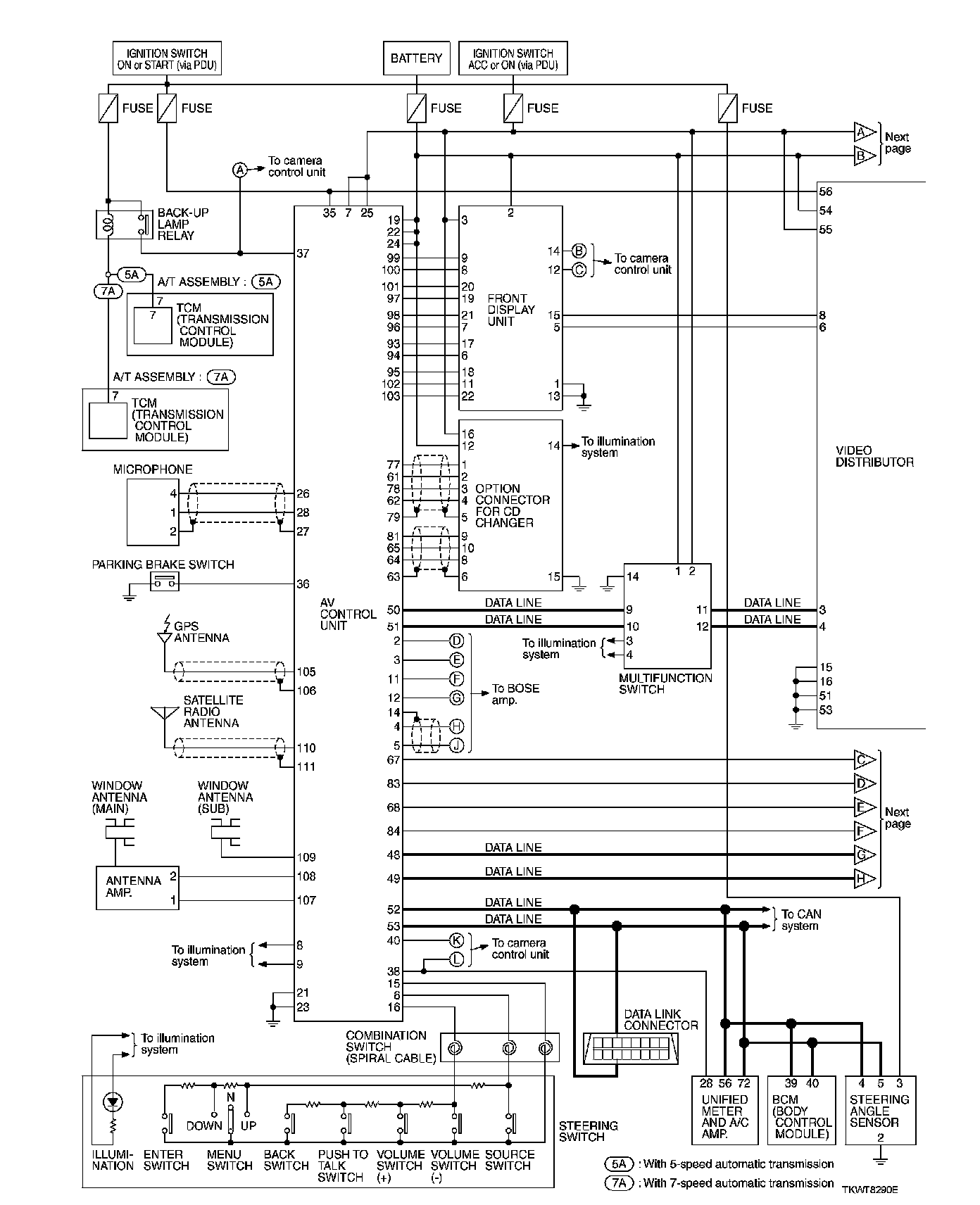

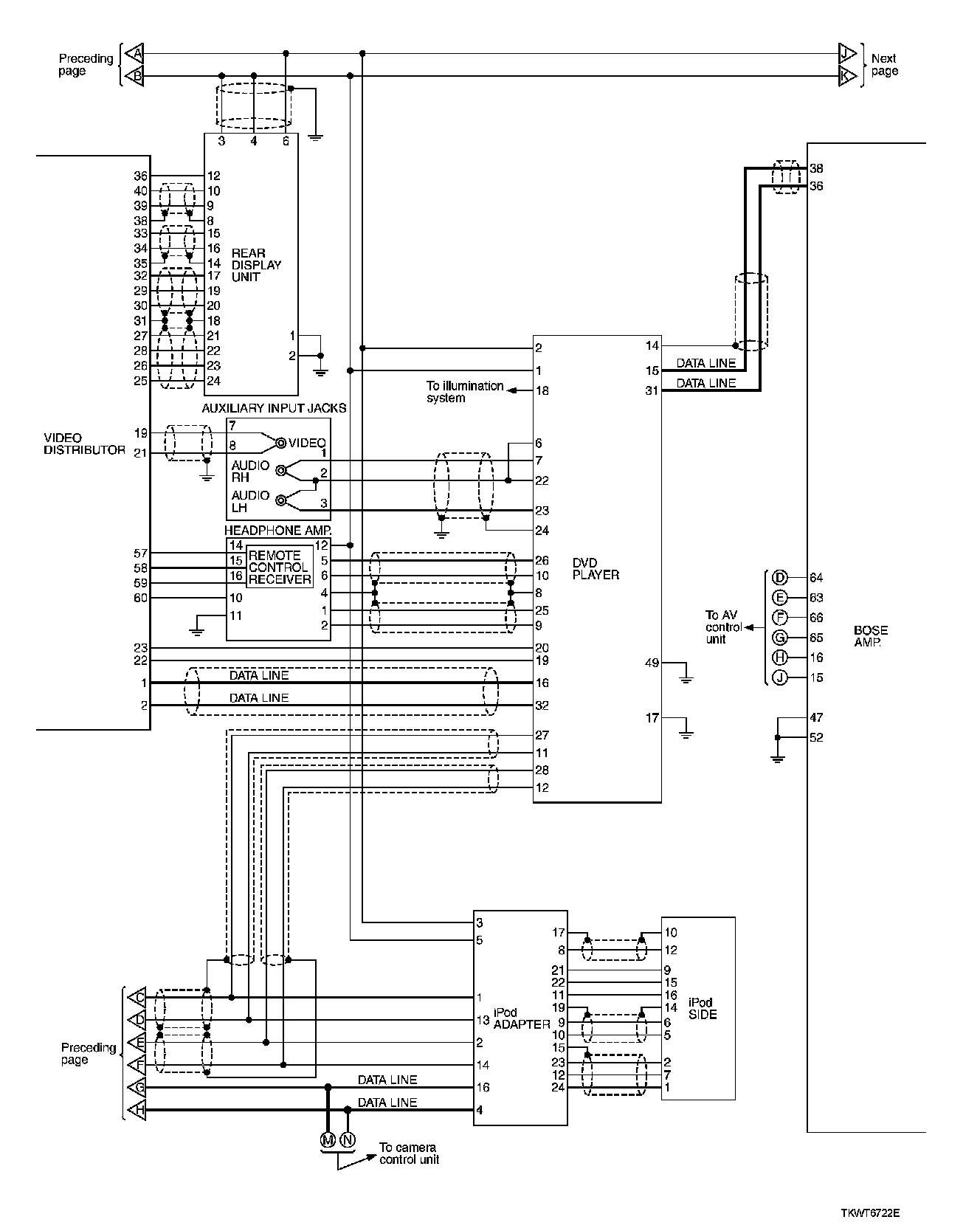

Schematic - BOSE Audio 2ch System-
