Infiniti
>>
2009
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>
Description and Operation
>>
Front Display Unit
>>
Without Navigation
Without Navigation
FRONT DISPLAY UNIT

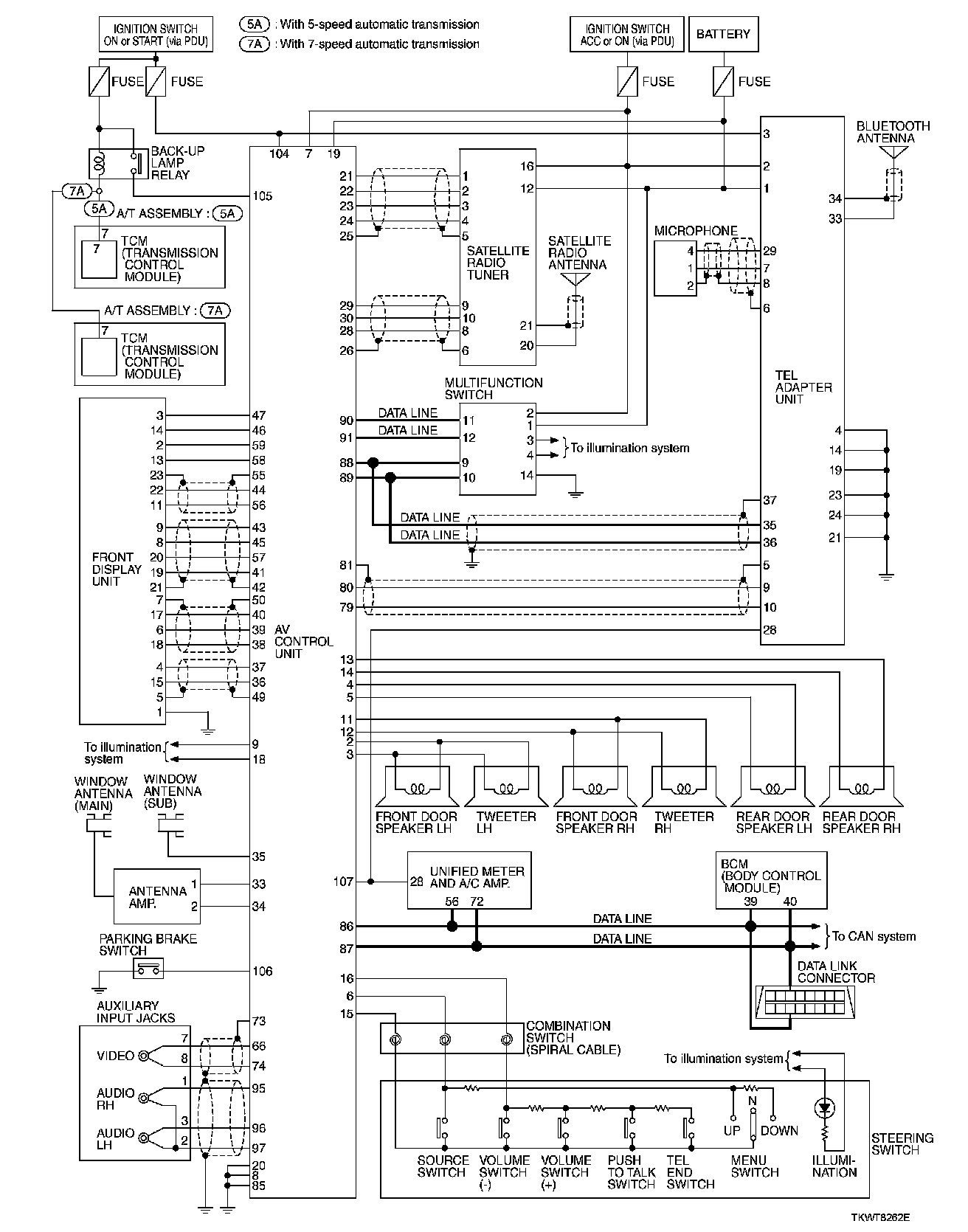

WITHOUT NAVIGATION : Schematic - Base Audio System -
