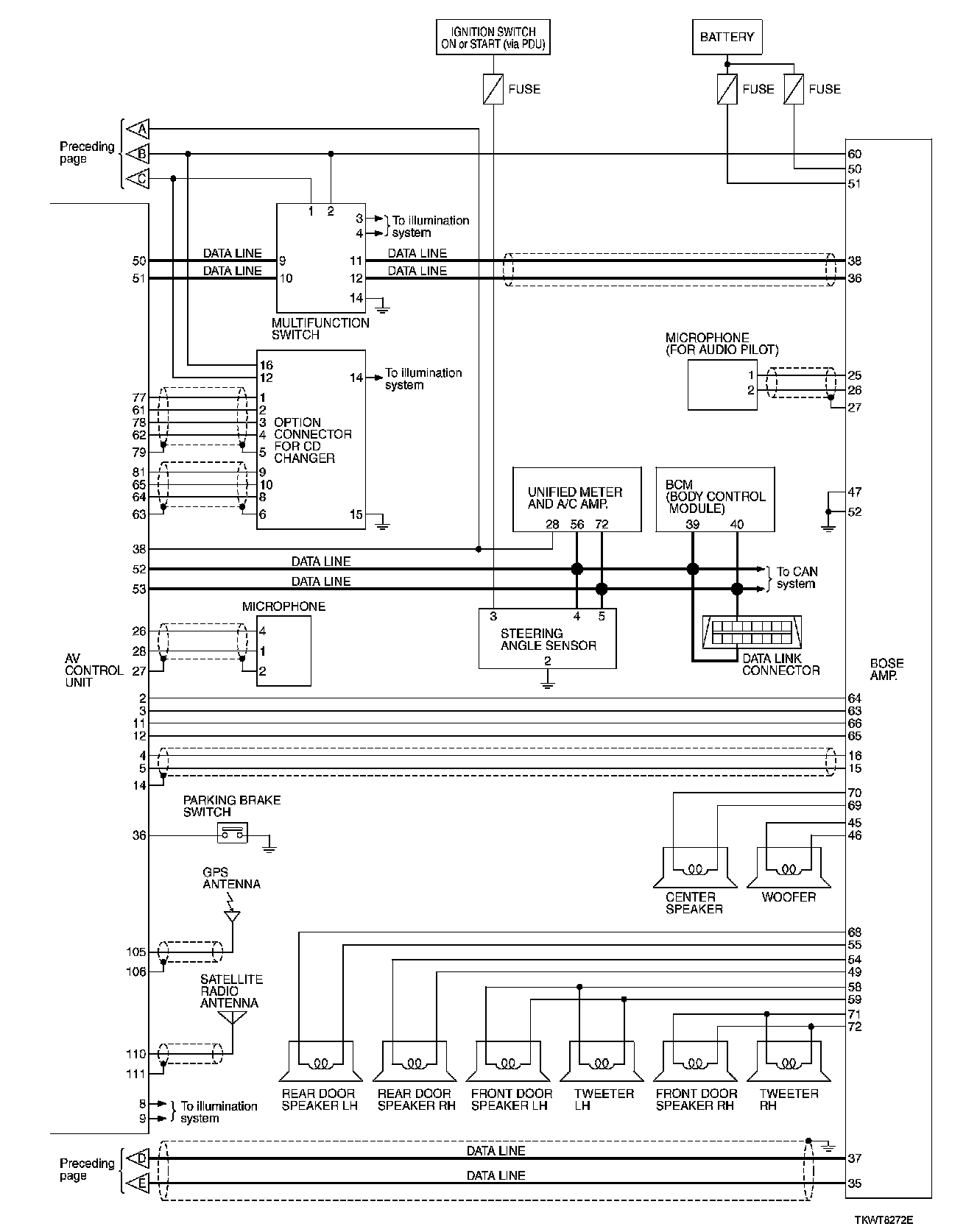

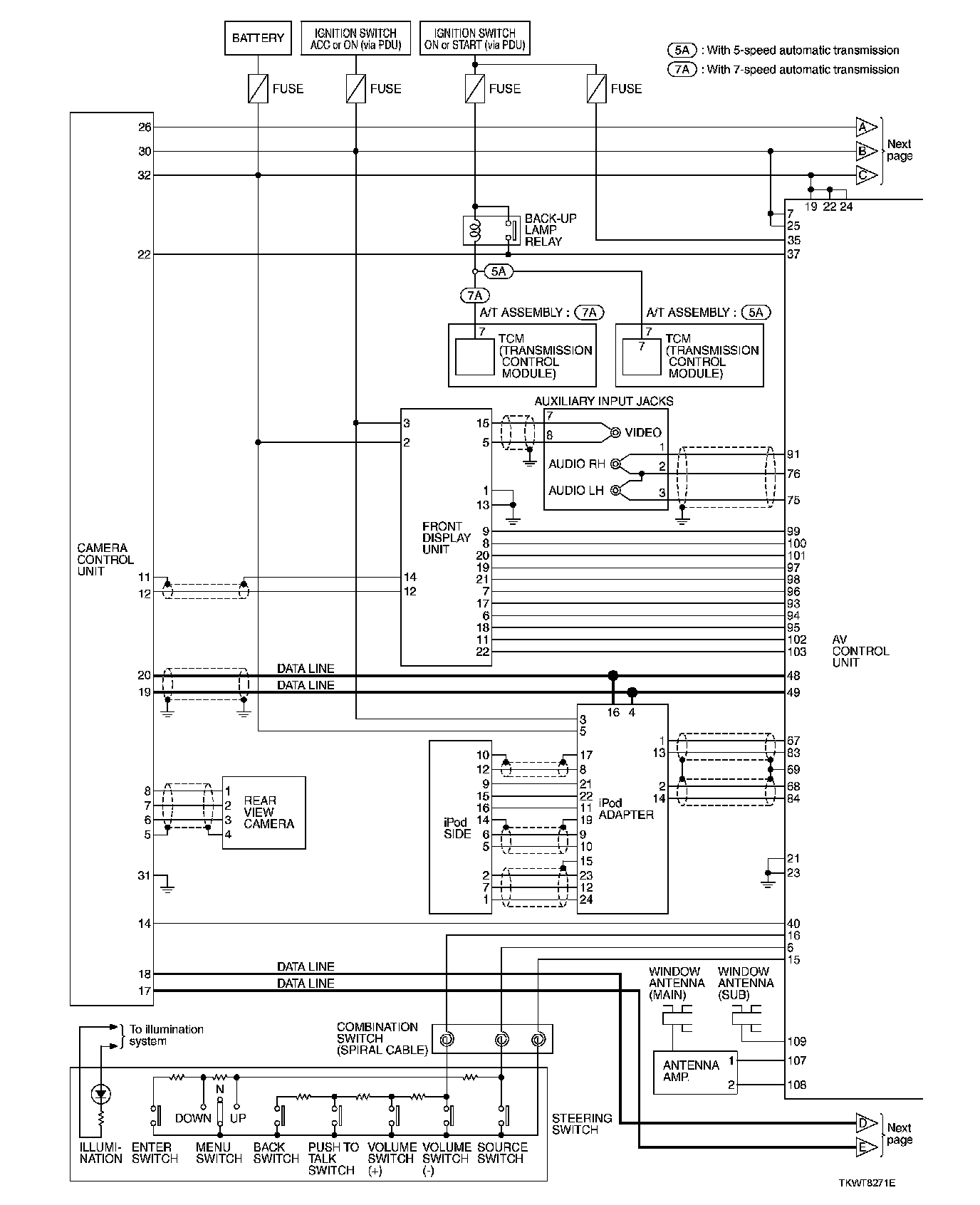

Schematic - Bose Audio 2CH System
Schematic - Bose Audio 2CH System
FRONT DISPLAY UNIT
WITH NAVIGATION : Schematic - BOSE Audio 2ch System -
