Without Mobile Entertainment System

MICROPHONE


Removal and Installation


REMOVAL
1. Remove headlining. Refer to Locations.
2. Remove connector.

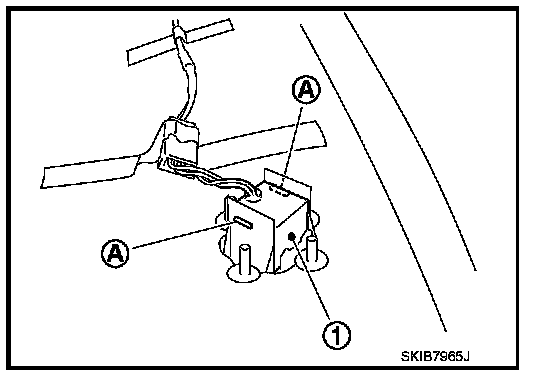

3. Raise tab (A) and remove microphone (1).

INSTALLATION
Install in the reverse order of removal.
