Windshield Washer Spray Nozzle: Service and Repair

FRONT WASHER NOZZLE AND TUBE


Removal and Installation


REMOVAL
1. Open the hood.

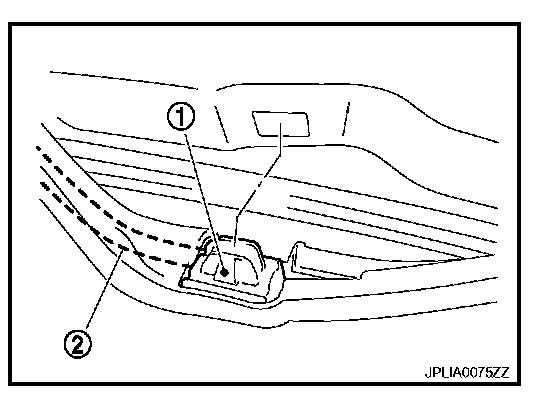

2. Use the stop point of washer nozzle (1) as the support point and rotate nozzle to remove it from body, while pushing nozzle spray point side along the hood.

CAUTION:
Never break the seal rubber bonded to the washer nozzle.
3. Remove the seal rubber from the washer nozzle.
4. Remove the washer tube (2) from the washer nozzle.

INSTALLATION
1. Install washer tube into the washer nozzle.
2. Install the seal rubber.

NOTE:
When the washer nozzle is removed, bond the seal rubber to the washer nozzle using commercially available instantaneous adhesive.
3. Install the washer nozzle to the hood.
4. Adjust the washer nozzle spray position. Refer to Testing and Inspection.

CAUTION:
The spray positions differ. Check that left and right nozzles are installed correctly.
