Front Window Anti-Pinch





FRONT POWER WINDOW SWITCH


Reference Value

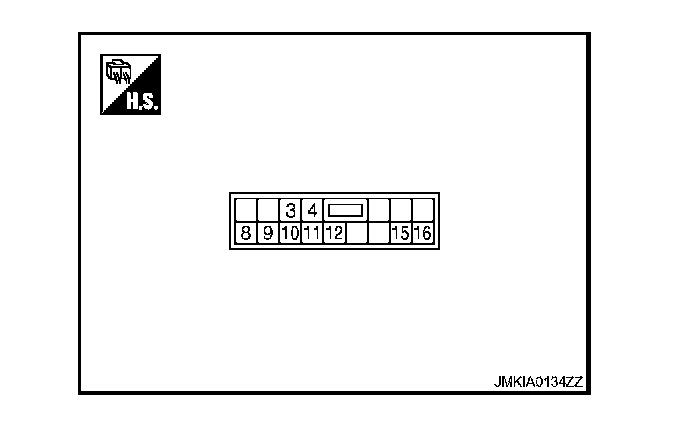

TERMINAL LAYOUT

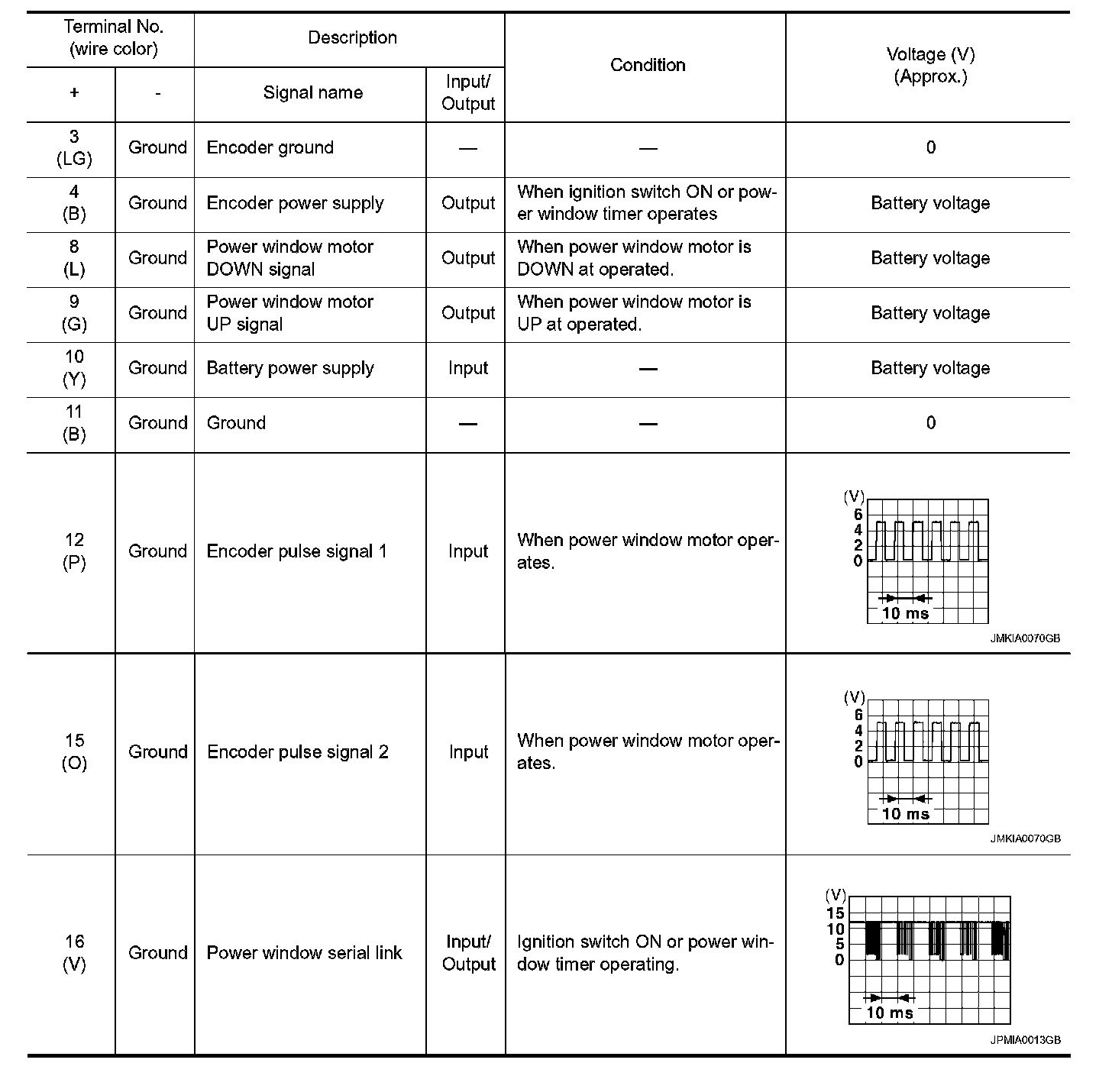

PHYSICAL VALUES
FRONT POWER WINDOW SWITCH
