Diagnosis Procedure

ENCODER


REAR RH : Diagnosis Procedure

1.CHECK ENCORDER SIGNAL
1. Turn ignition switch ON.

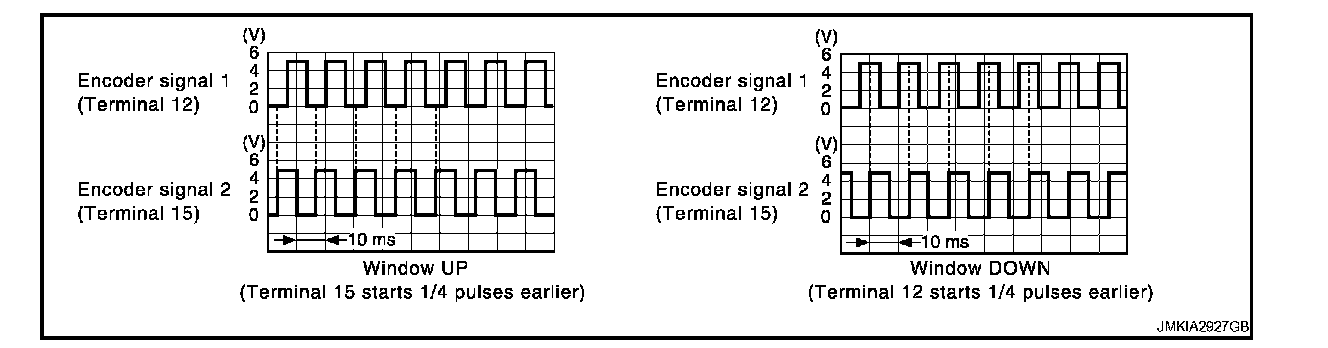

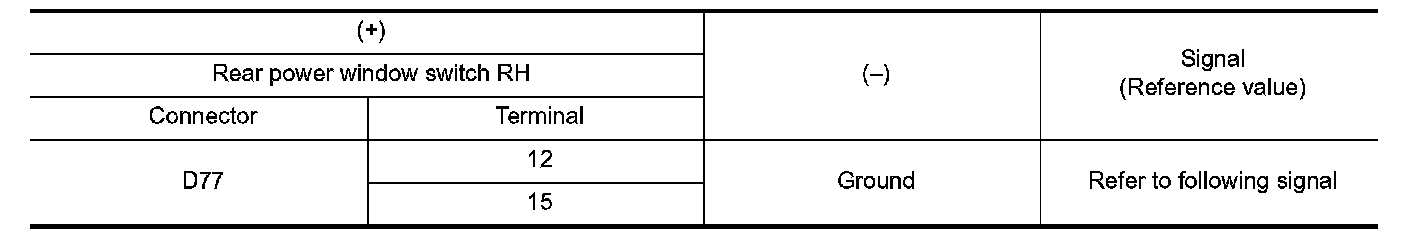

2. Check signal between rear power window switch RH harness connector and ground using oscilloscope.










Is the inspection result normal?
YES - Replace rear power window switch RH. Refer to Front and Rear Window Anti-Pinch.
NO - GO TO 2.
2.CHECK ENCORDER SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH connector and rear power window motor RH connector.

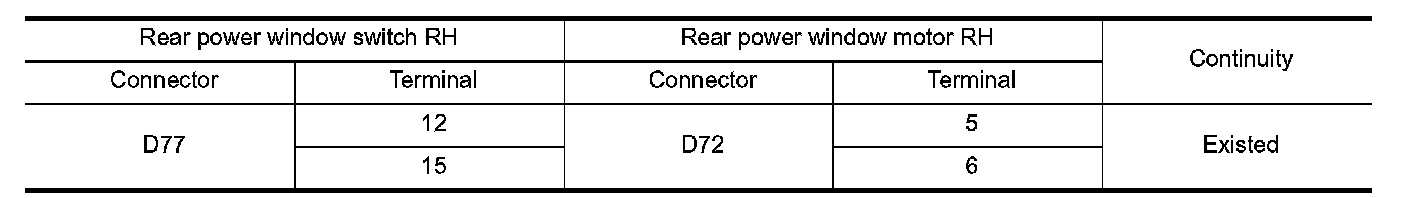

3. Check continuity between rear power window switch RH harness connector and rear power window motor
RH harness connector.

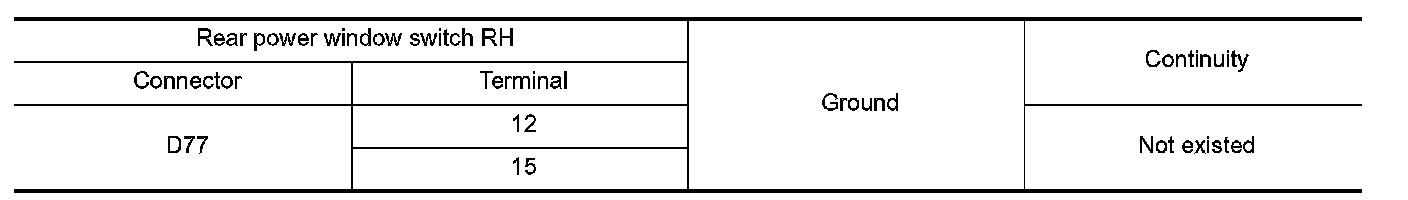

4. Check continuity rear power window switch RH harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK ENCORDER POWER SUPPLY CIRCUIT 1
1. Connect rear power window switch RH connector.
2. Turn ignition switch ON.
3. Check voltage between rear power window motor RH harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4.
4.CHECK ENCORDER POWER SUPPLY CIRCUIT 2
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH connector.

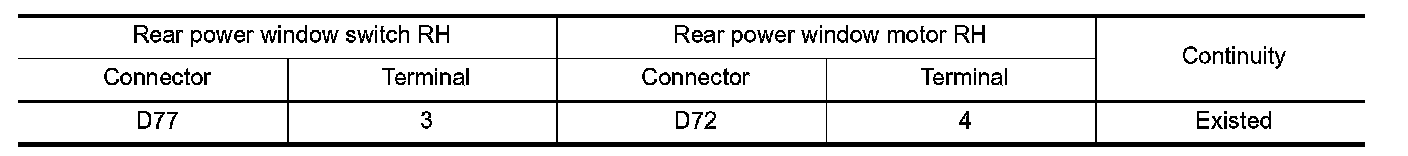

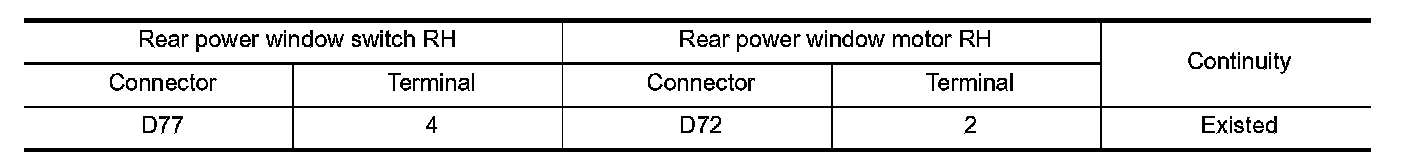

3. Check continuity between rear power window switch RH harness connector and rear power window motor
RH harness connector.

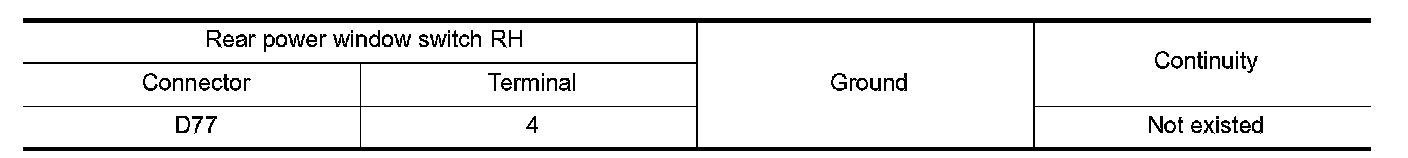

4. Check continuity between rear power window switch RH harness connector and ground.





Is the inspection result normal?
YES - Replace rear power window switch RH. Refer to Front and Rear Window Anti-Pinch.
NO - Repair or replace harness.
5.CHECK GROUND CIRCUIT 1
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH harness connector.
3. Check continuity between rear power window switch RH harness connector and rear power window motor
RH harness connector.





Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace harness.
6.CHECK GROUND CIRCUIT 2
1. Connect rear power window switch RH harness connector.
2. Check continuity between rear power window switch RH harness connector and ground.





Is the inspection result normal?
YES - Replace rear power window motor RH. Refer to Removal and Installation.
NO - Replace rear power window switch RH. Refer to Front and Rear Window Anti-Pinch.
