Unified Meter and A/C AMP.





UNIFIED METER AND A/C AMP.


Reference Value

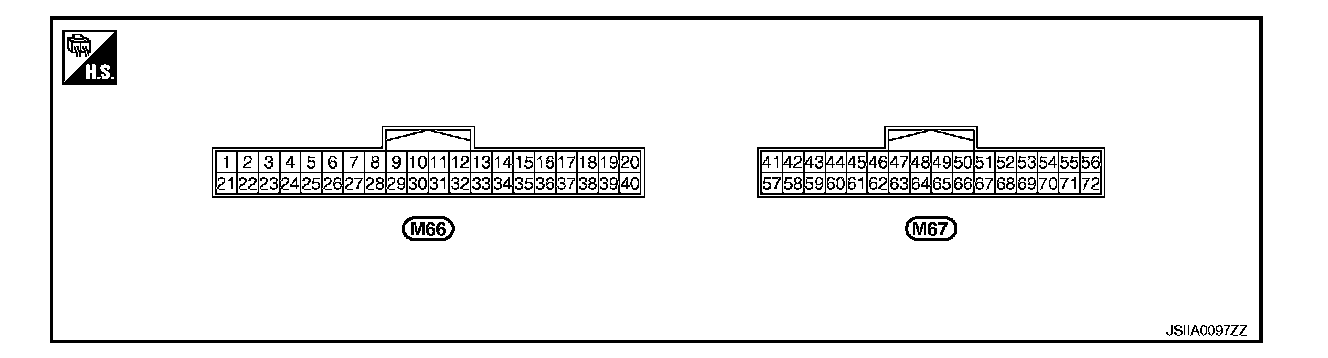

TERMINAL LAYOUT

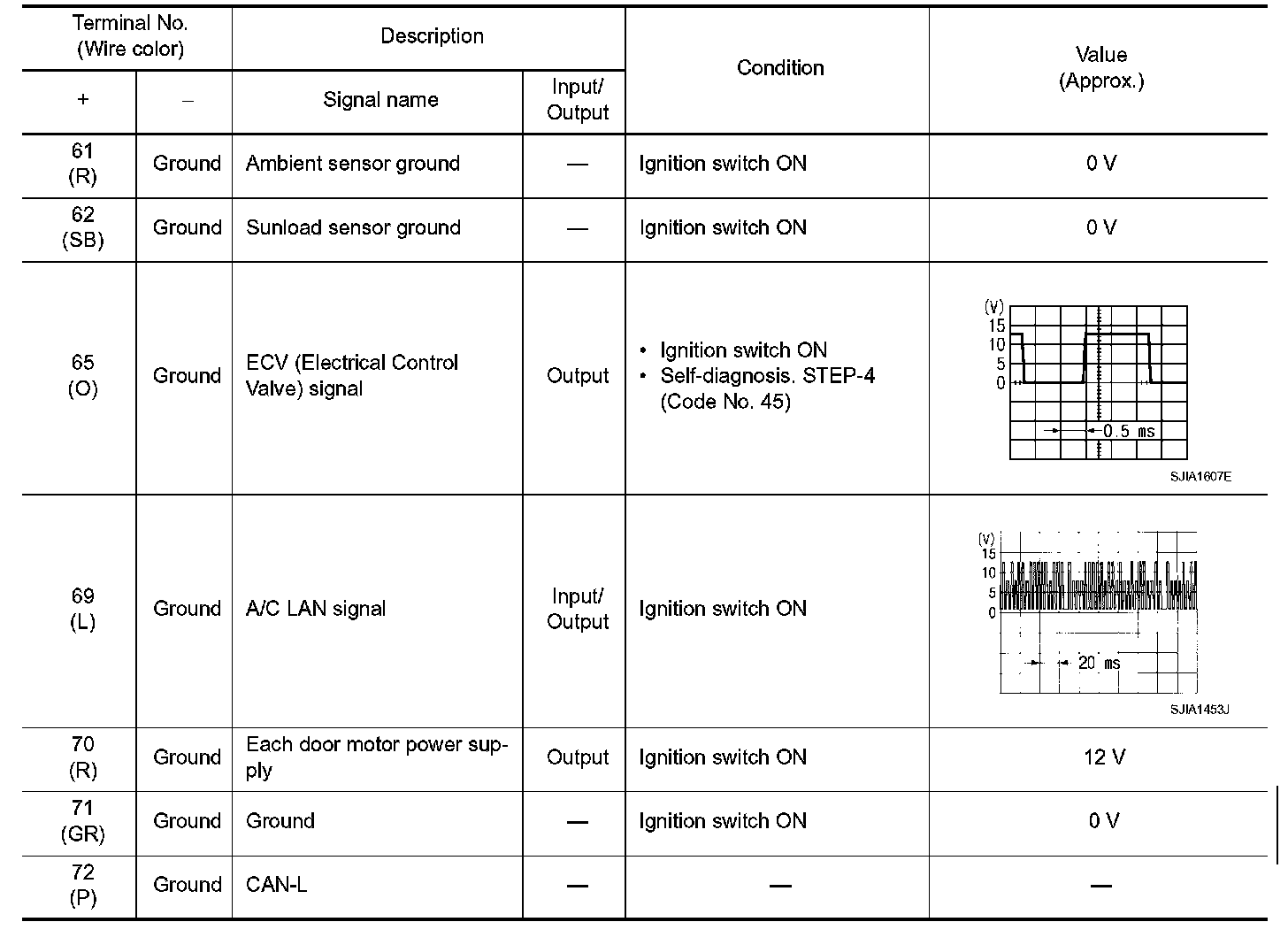

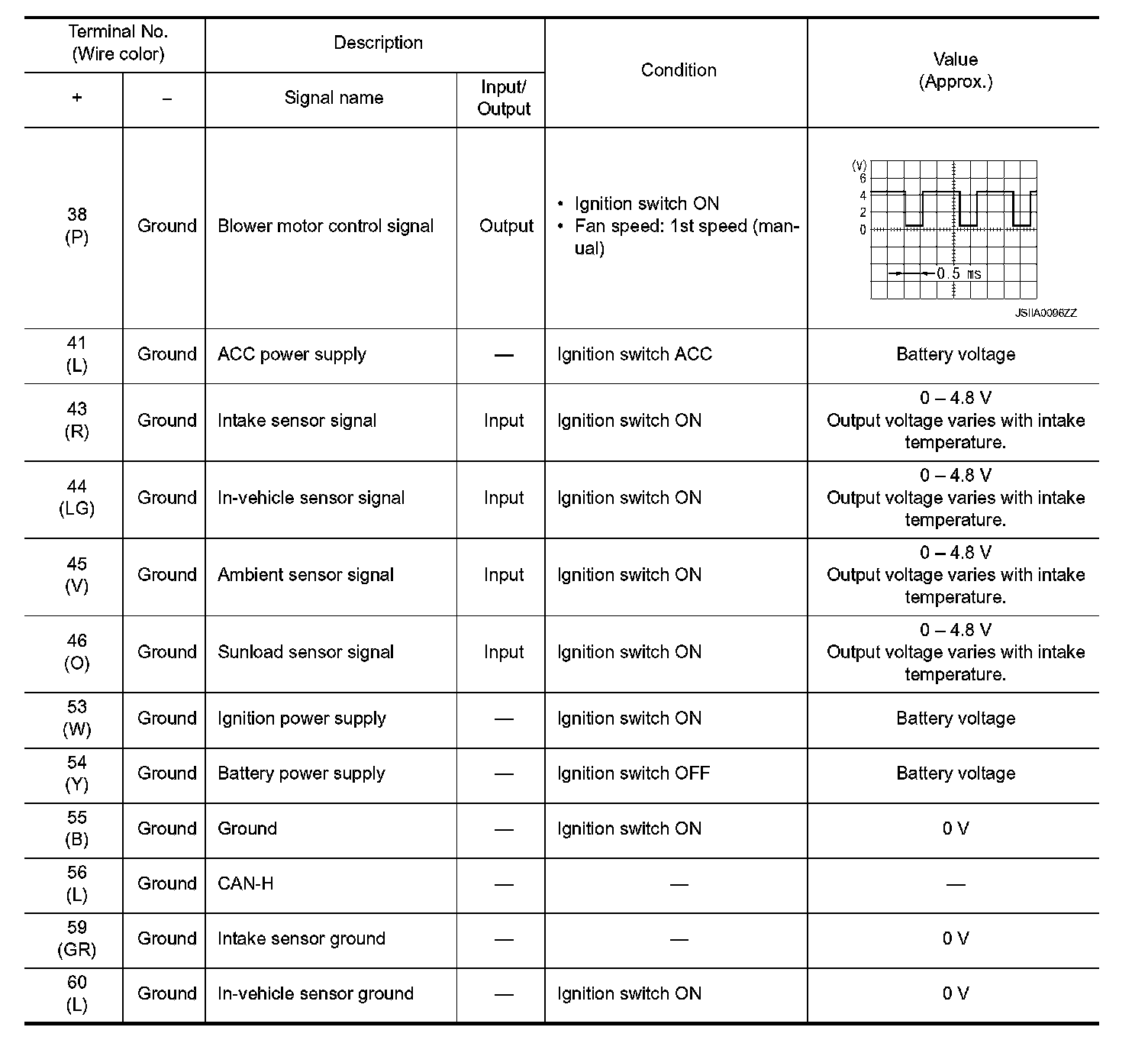

PHYSICAL VALUES
