Rear Condenser

CONDENSER


Removal and Installation


REMOVAL
1. Remove the rear seat cushion and the rear seatback. Refer to Removal and Installation
2. Remove the rear kicking plate, rear wheel well garnish and the rear pillar finisher. Refer to Body Side Trim

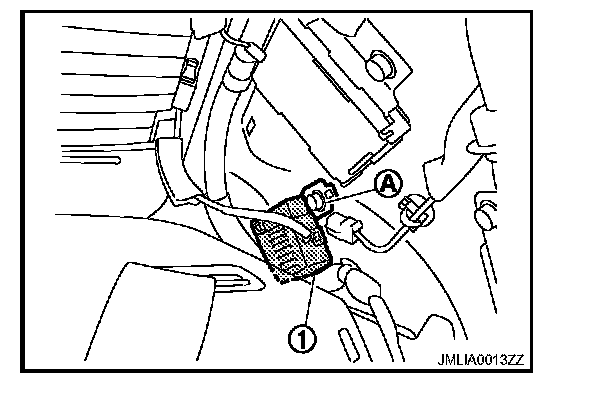

3. Remove bolt (A), and then remove condenser (1) from the vehicle body.

INSTALLATION
Install in the reverse order of removal.
