Lumbar Support Switch

LUMBAR SUPPORT SWITCH


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

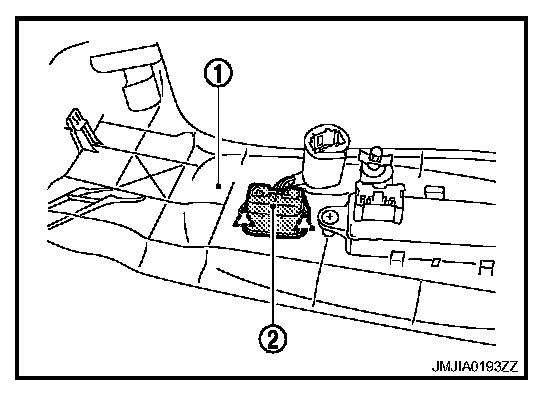

1. Remove the seat cushion outer finisher (1). Refer to Removal and Installation
2. Remove lumbar support switch (2).

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Be sure to clamp the harness to the right place.
