Driver Seat Control Unit





DRIVER SEAT CONTROL UNIT


Reference Value

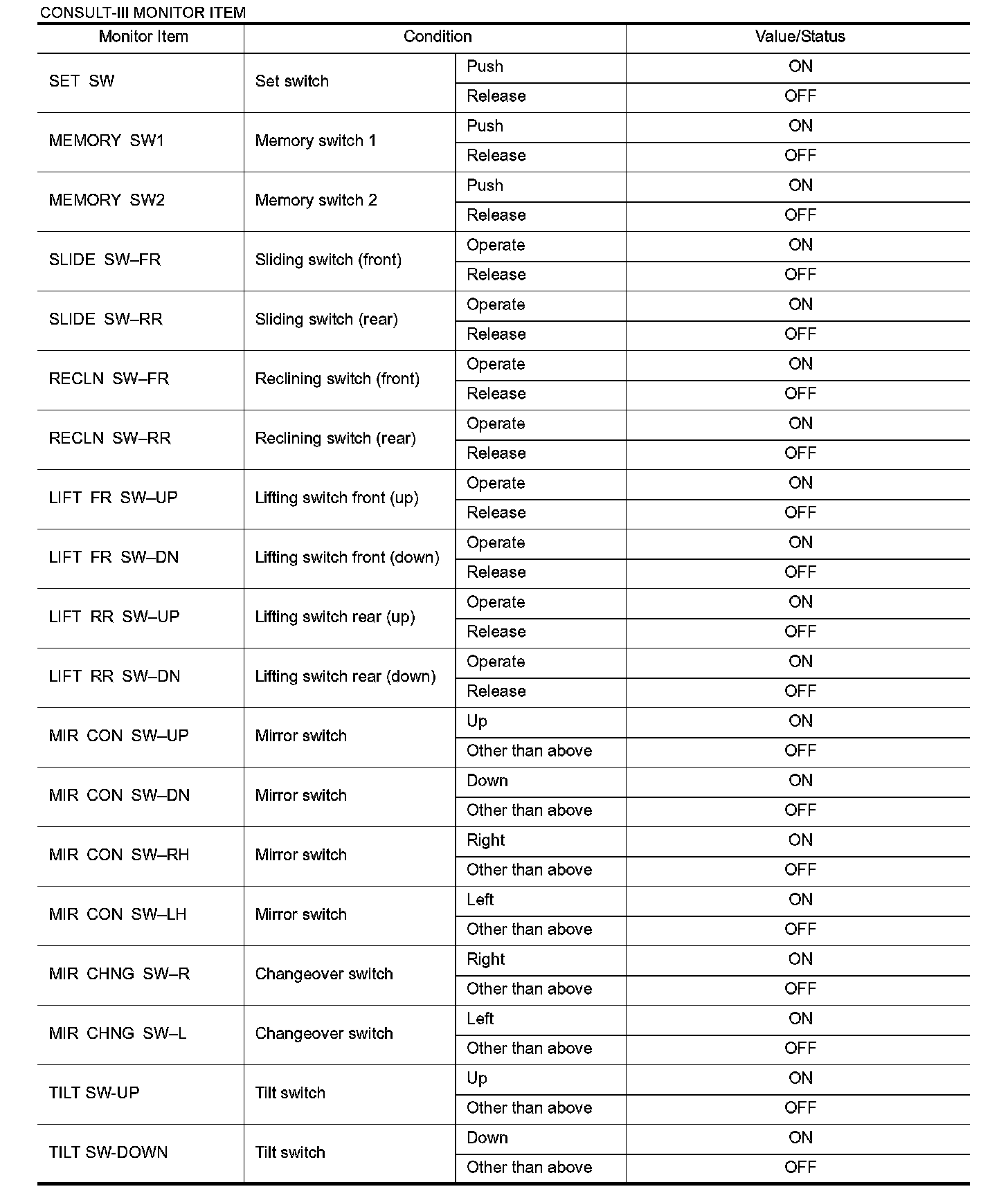

VALUES ON THE DIAGNOSIS TOOL











TERMINAL LAYOUT






PHYSICAL VALUES
