Pinout Values and Diagnostic Parameters





BCM (BODY CONTROL MODULE)


Reference Value

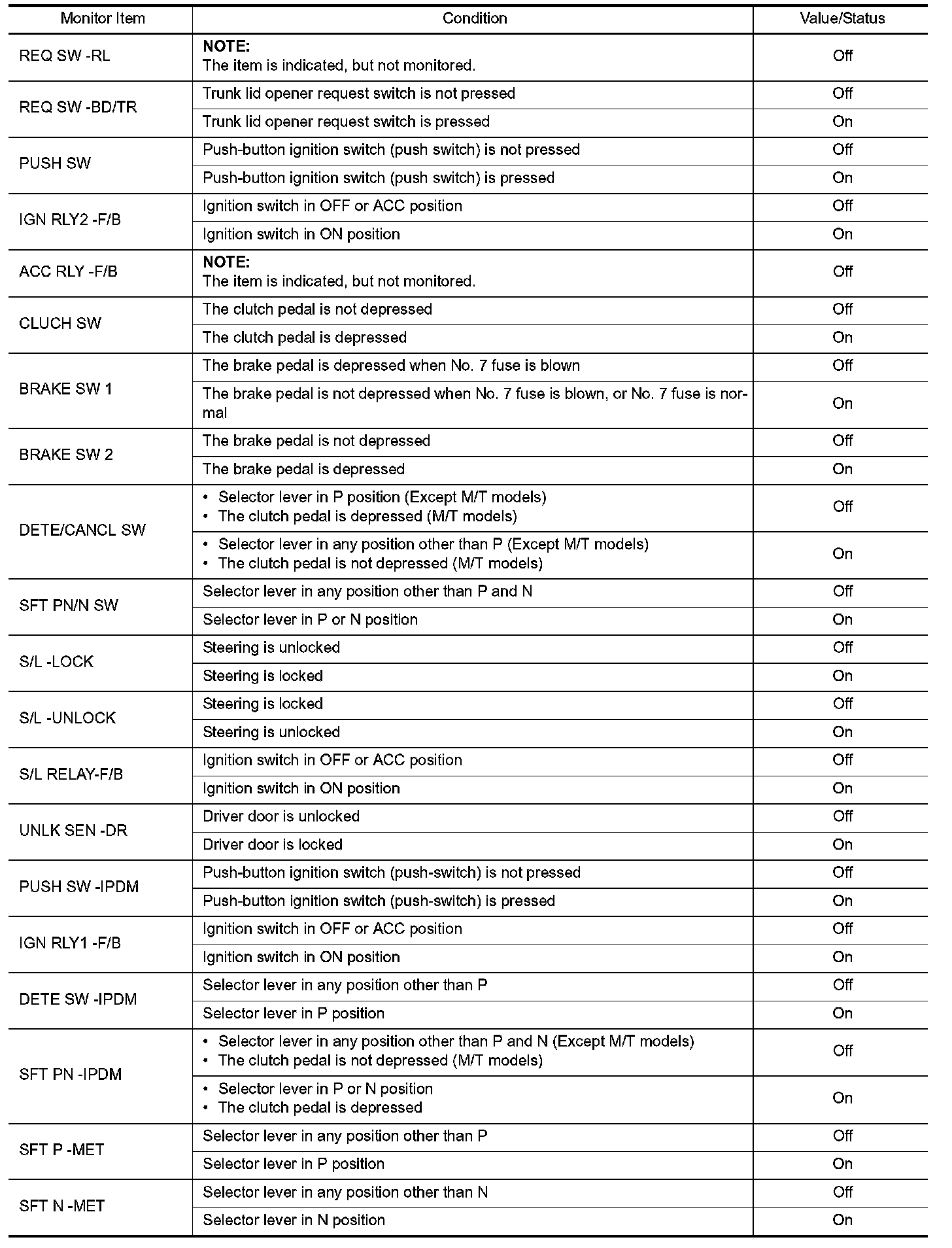

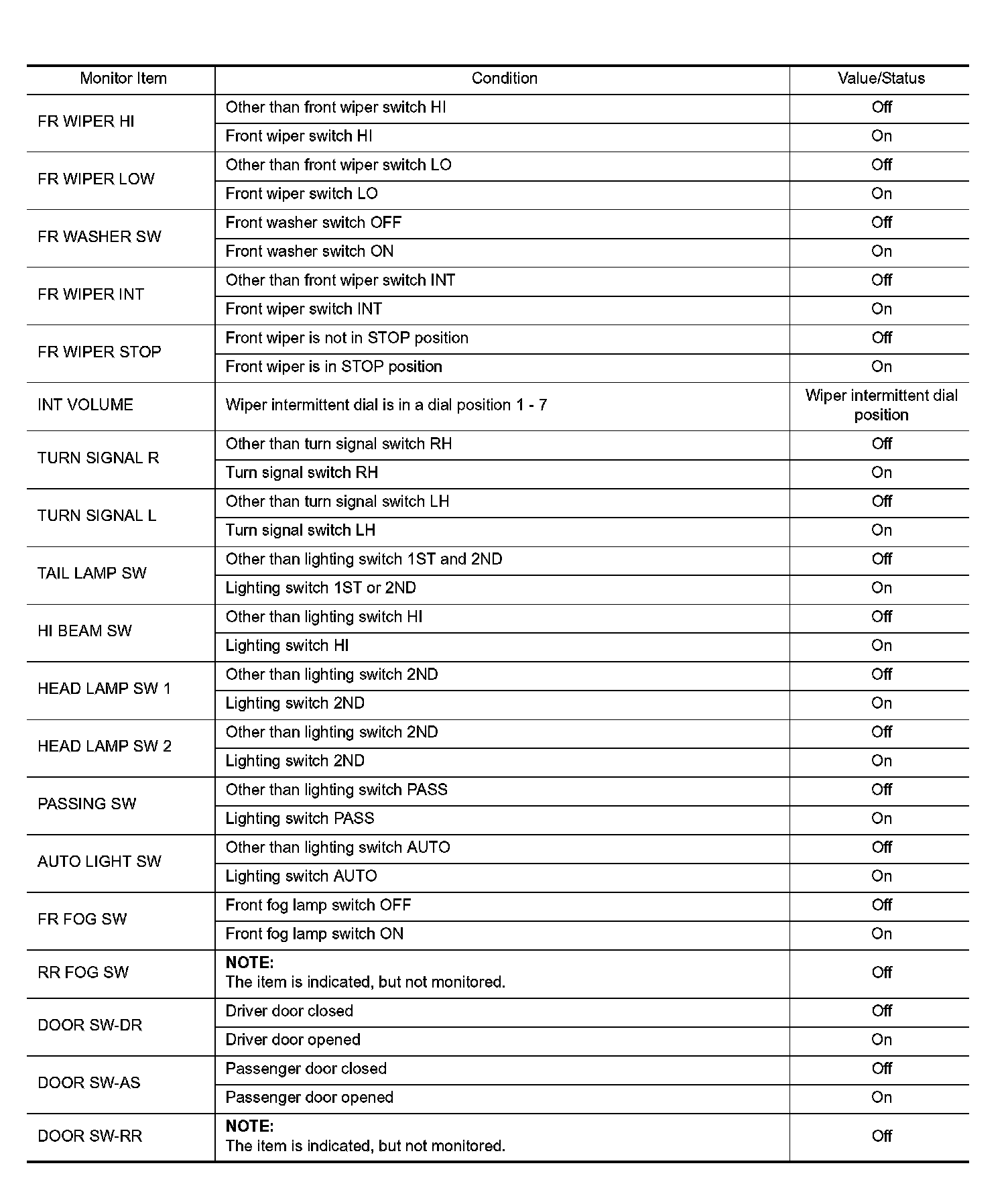

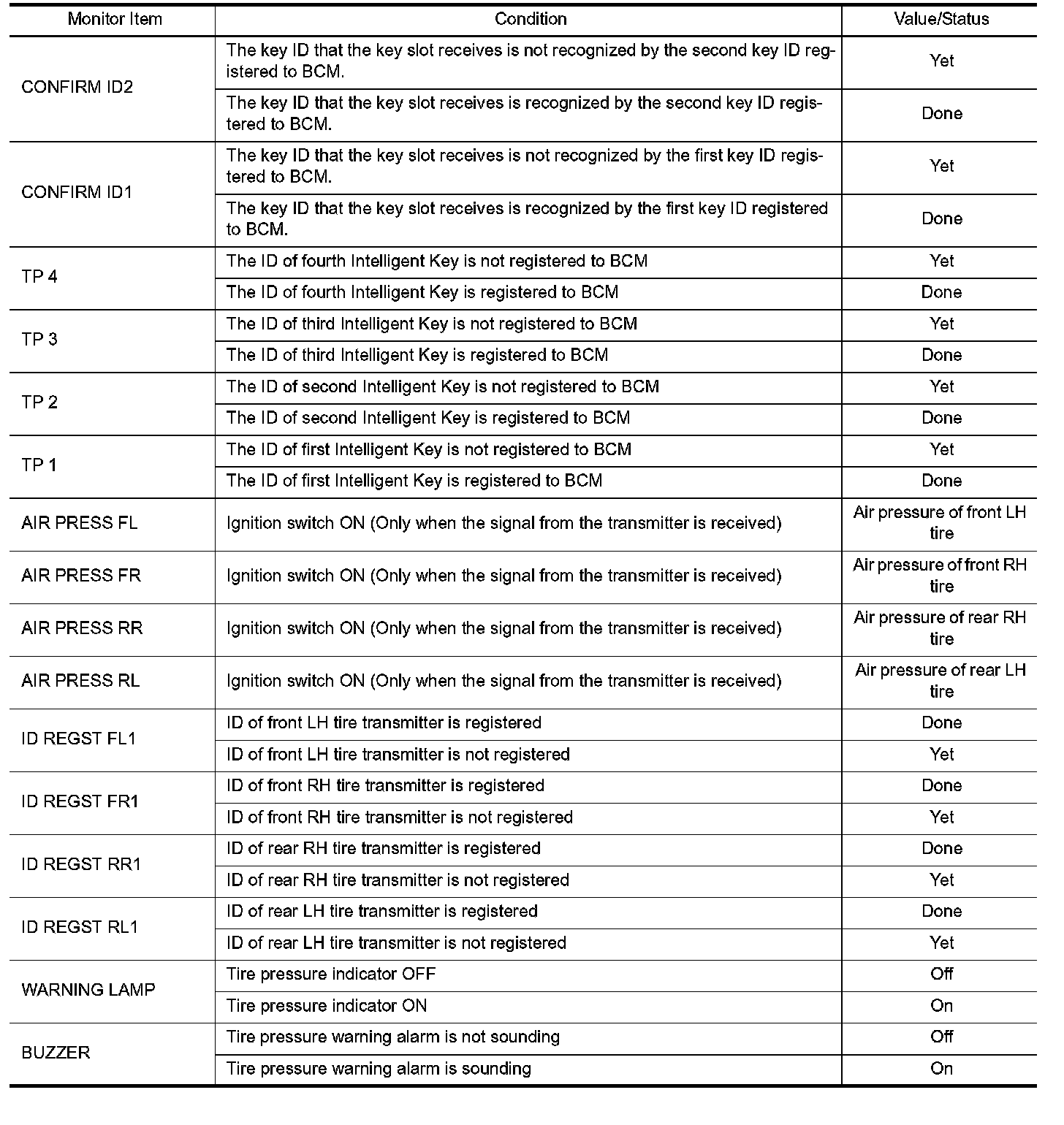

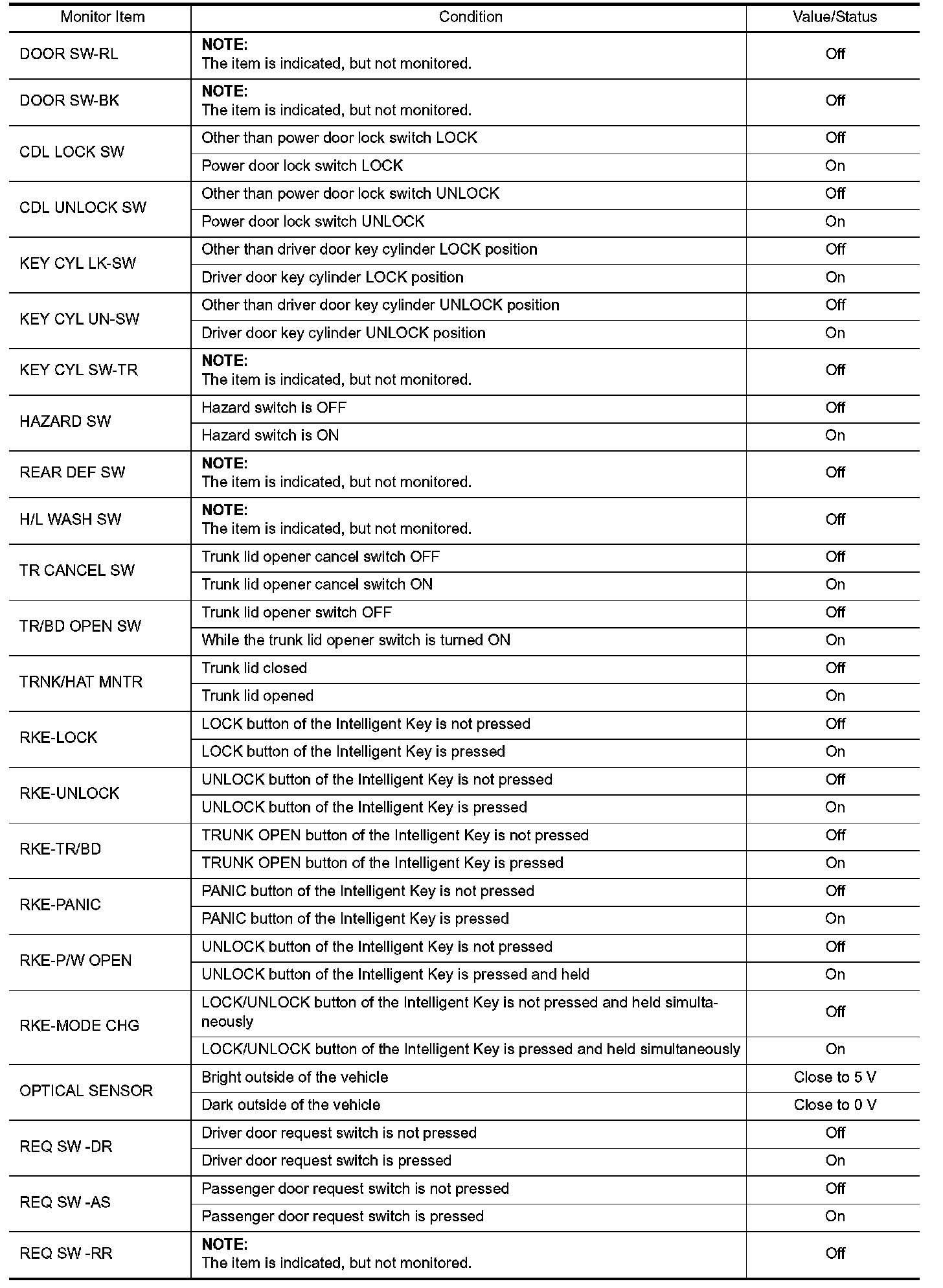

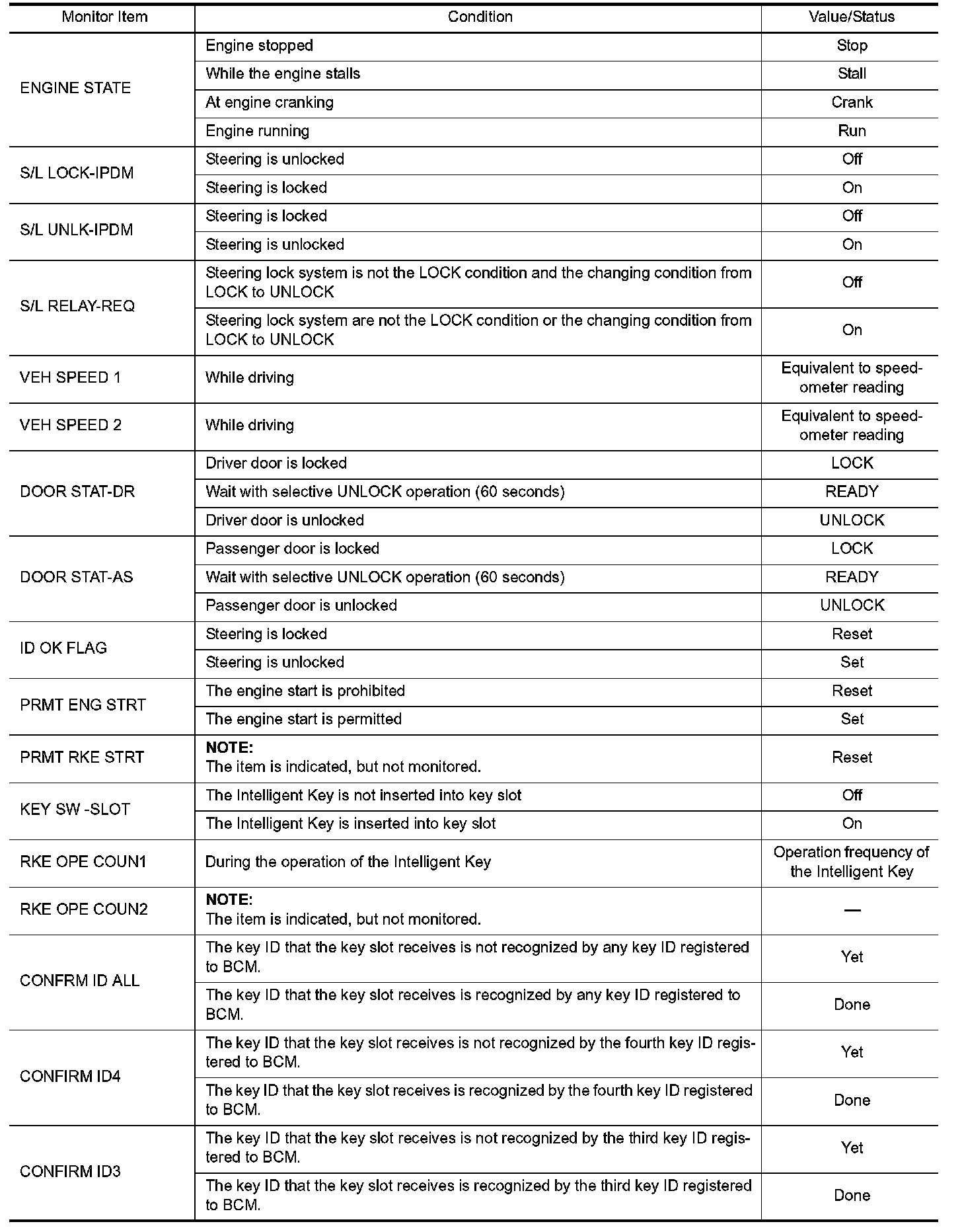

VALUES ON THE DIAGNOSIS TOOL

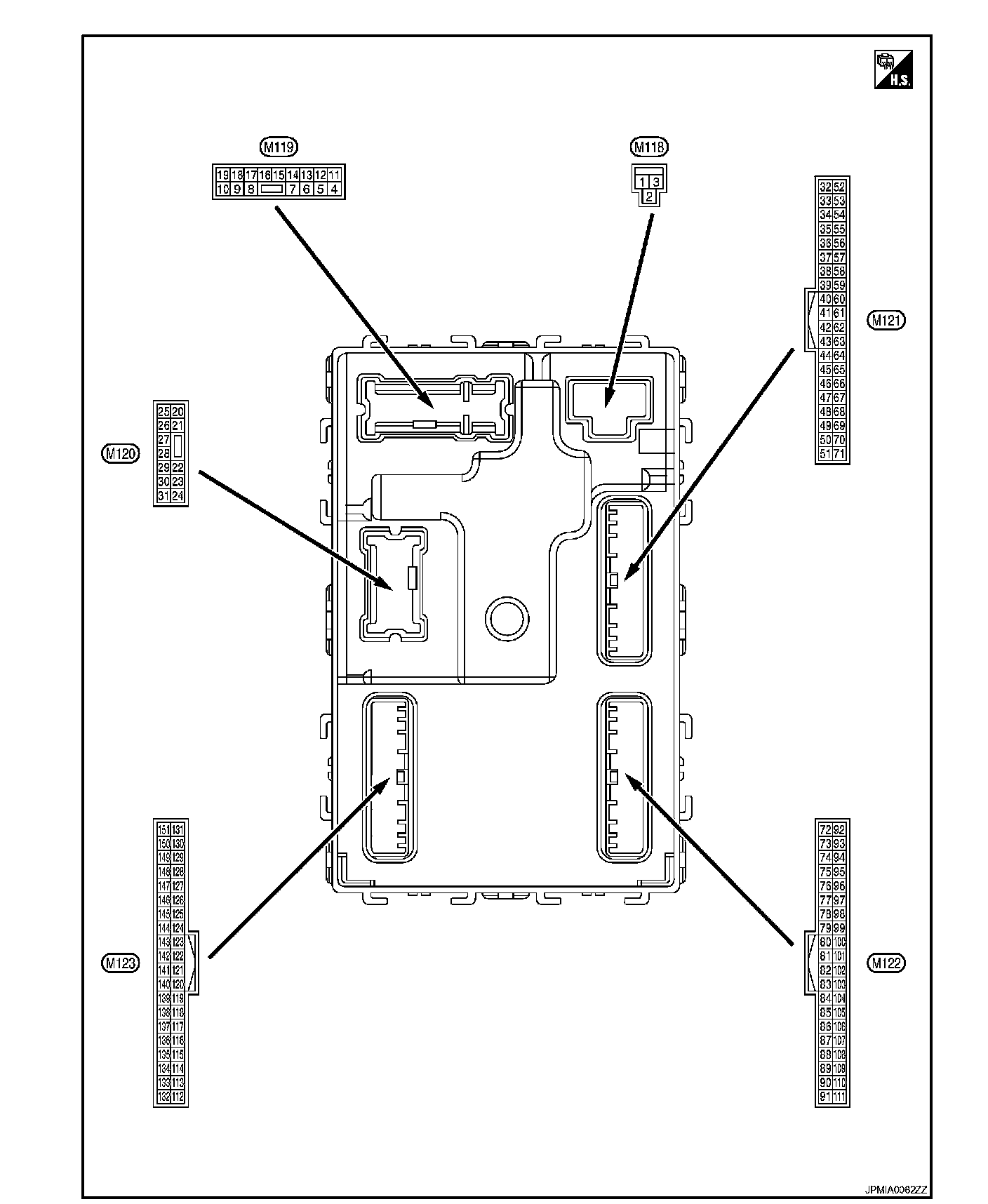

TERMINAL LAYOUT

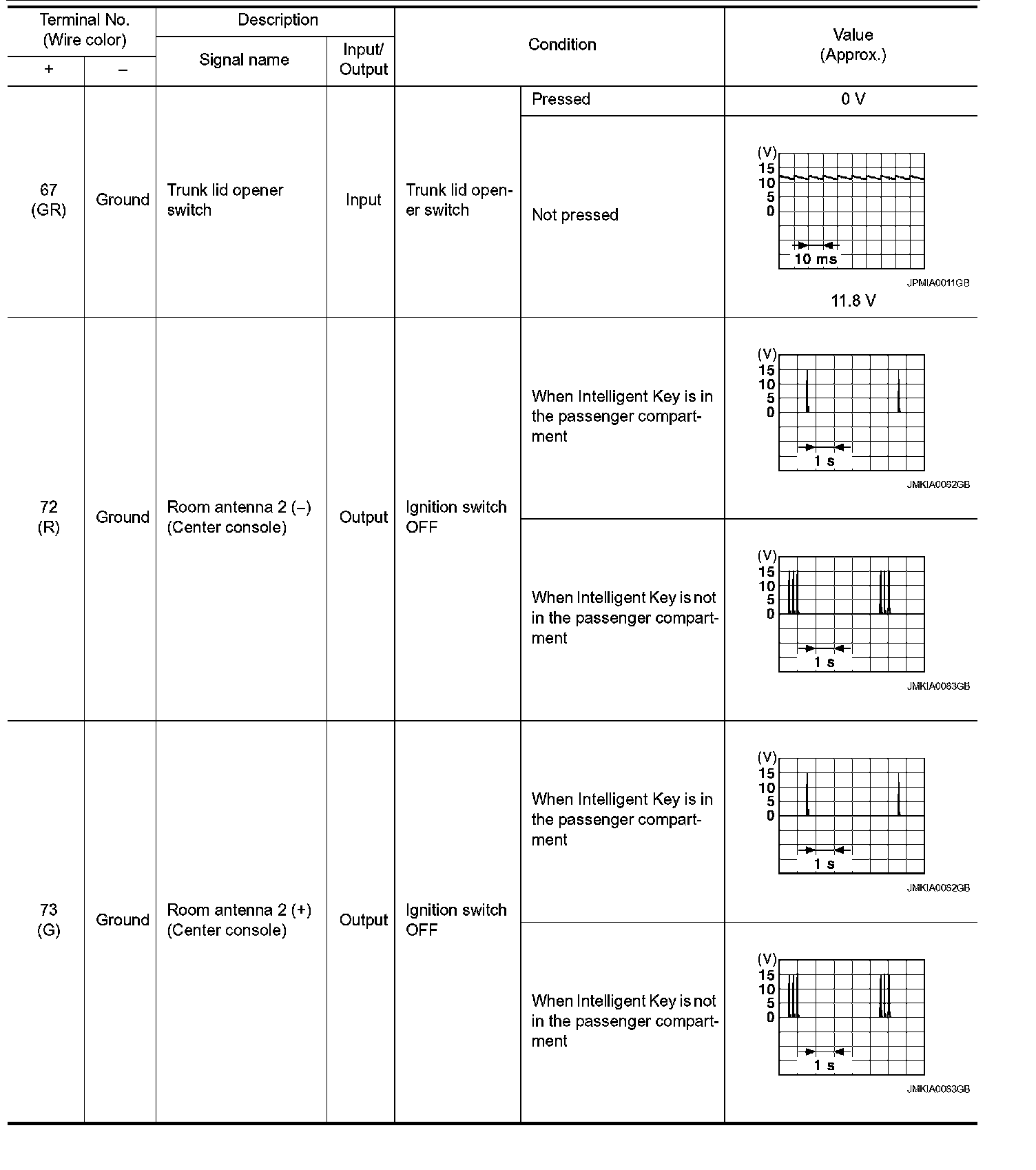

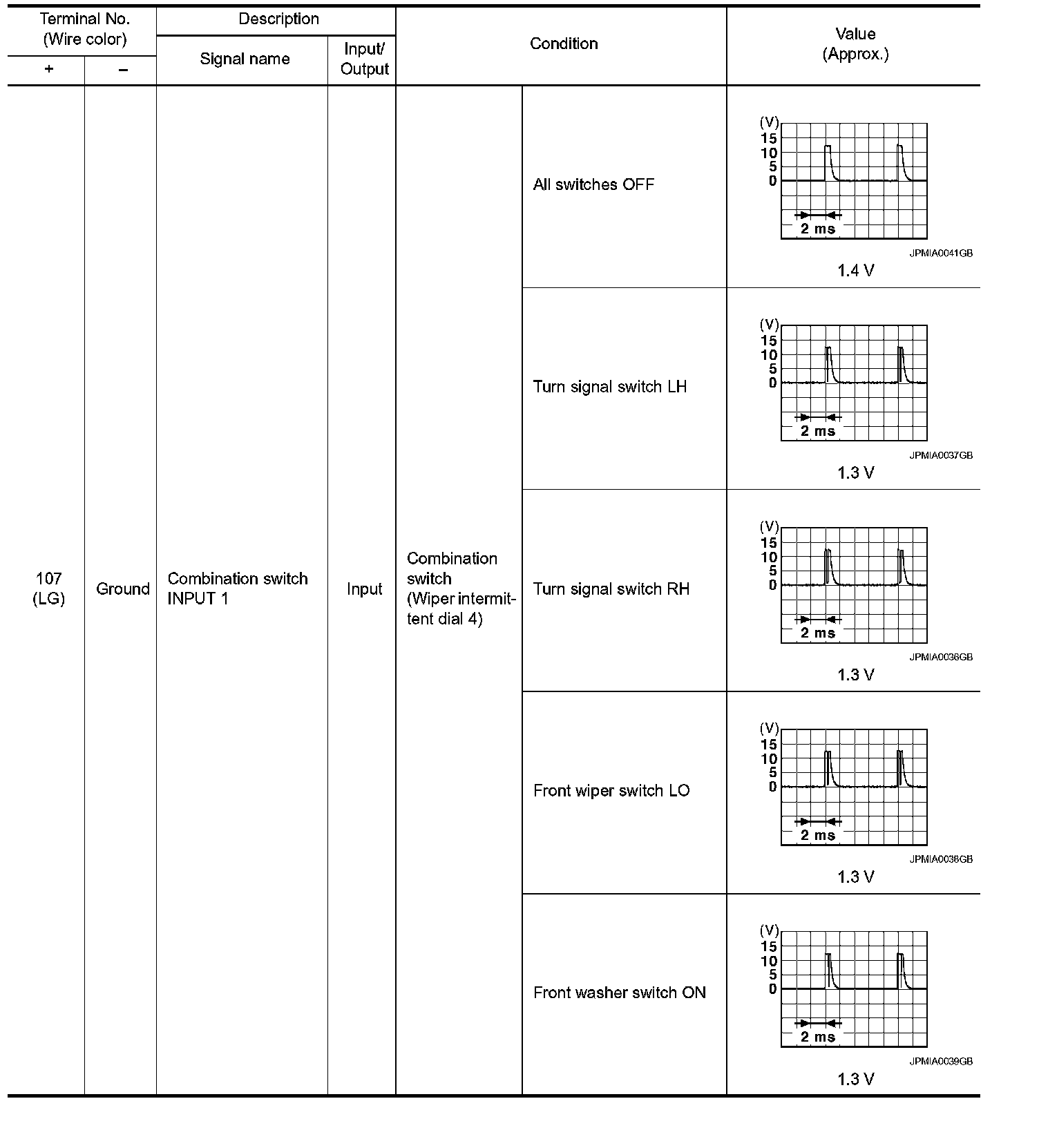

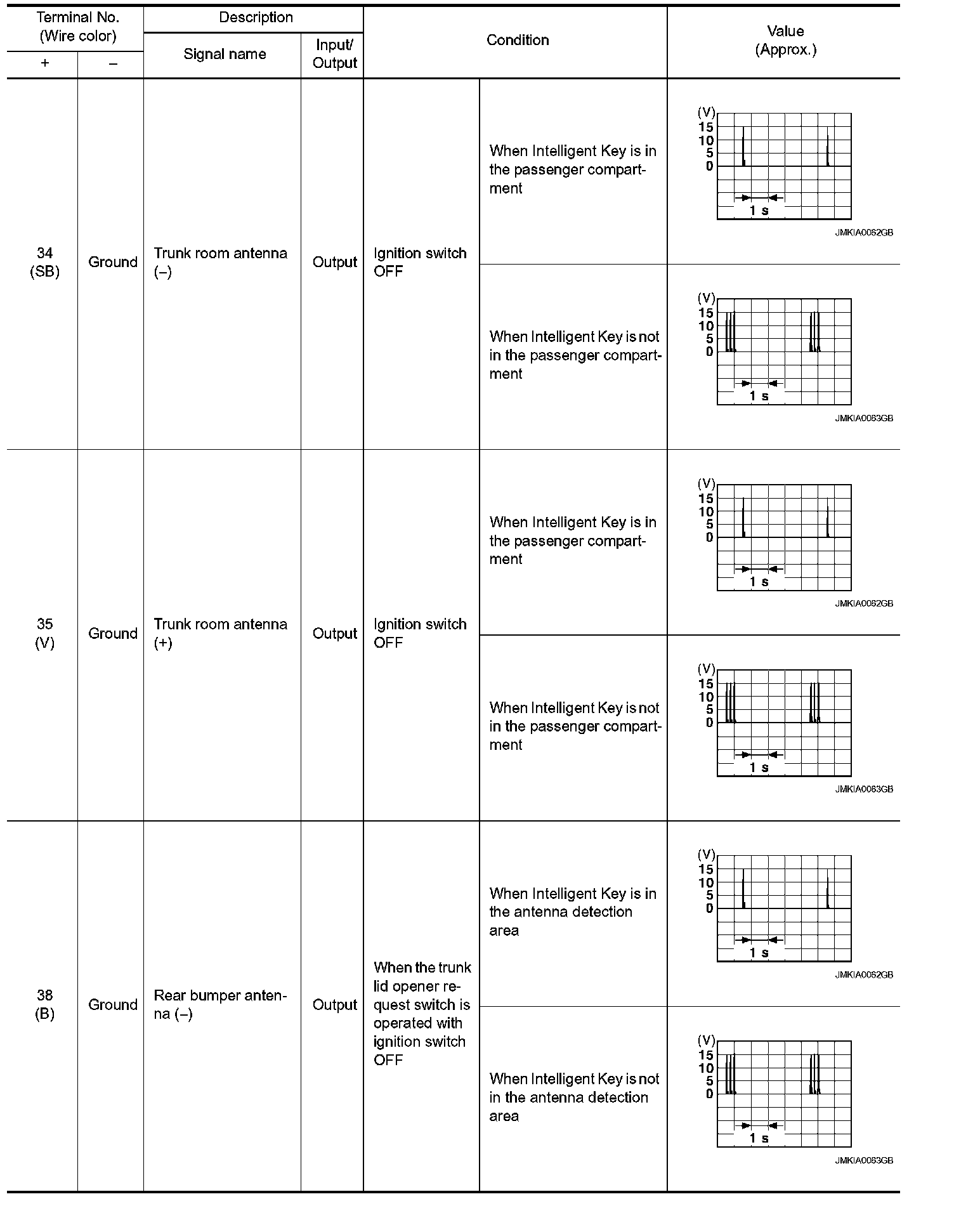

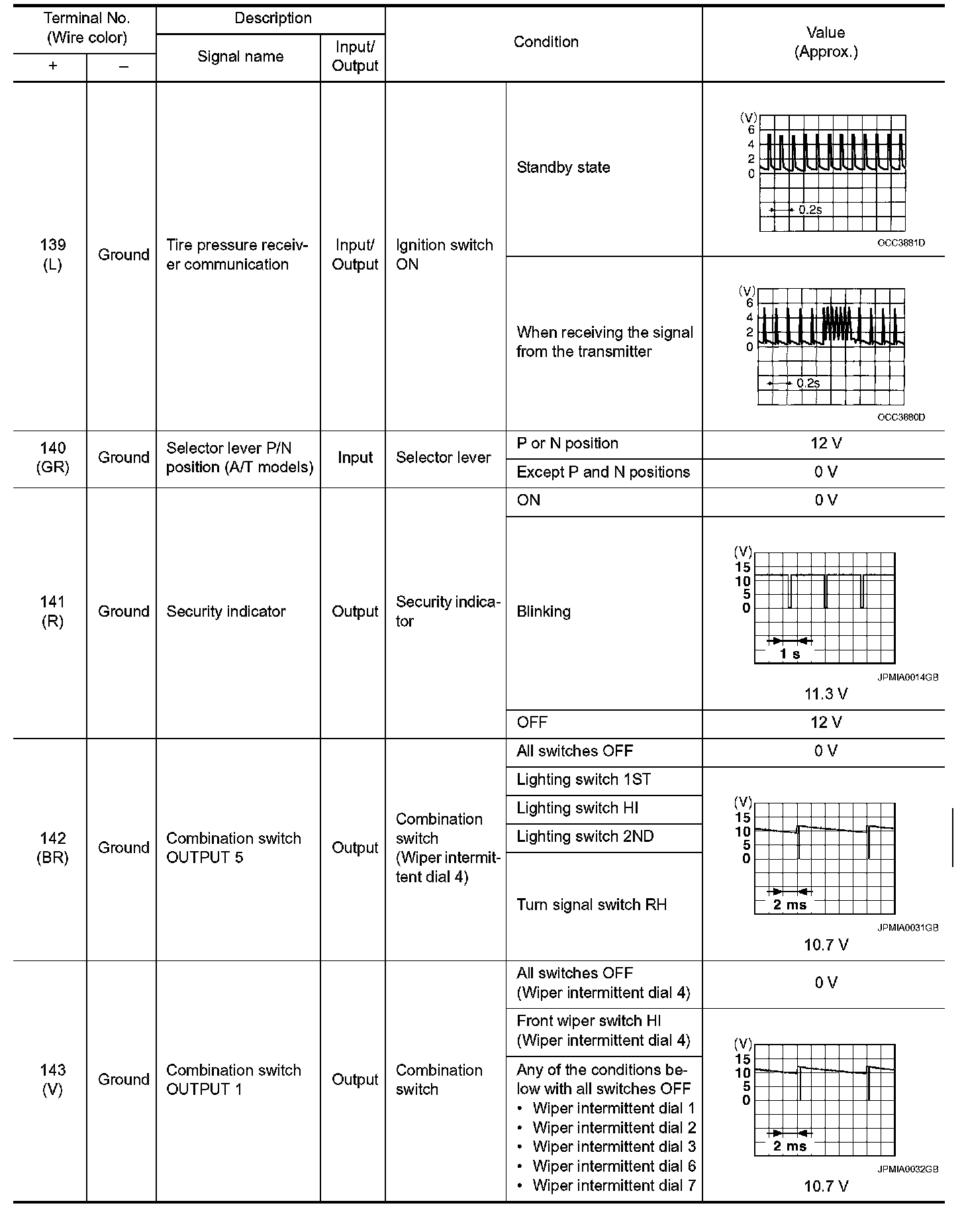

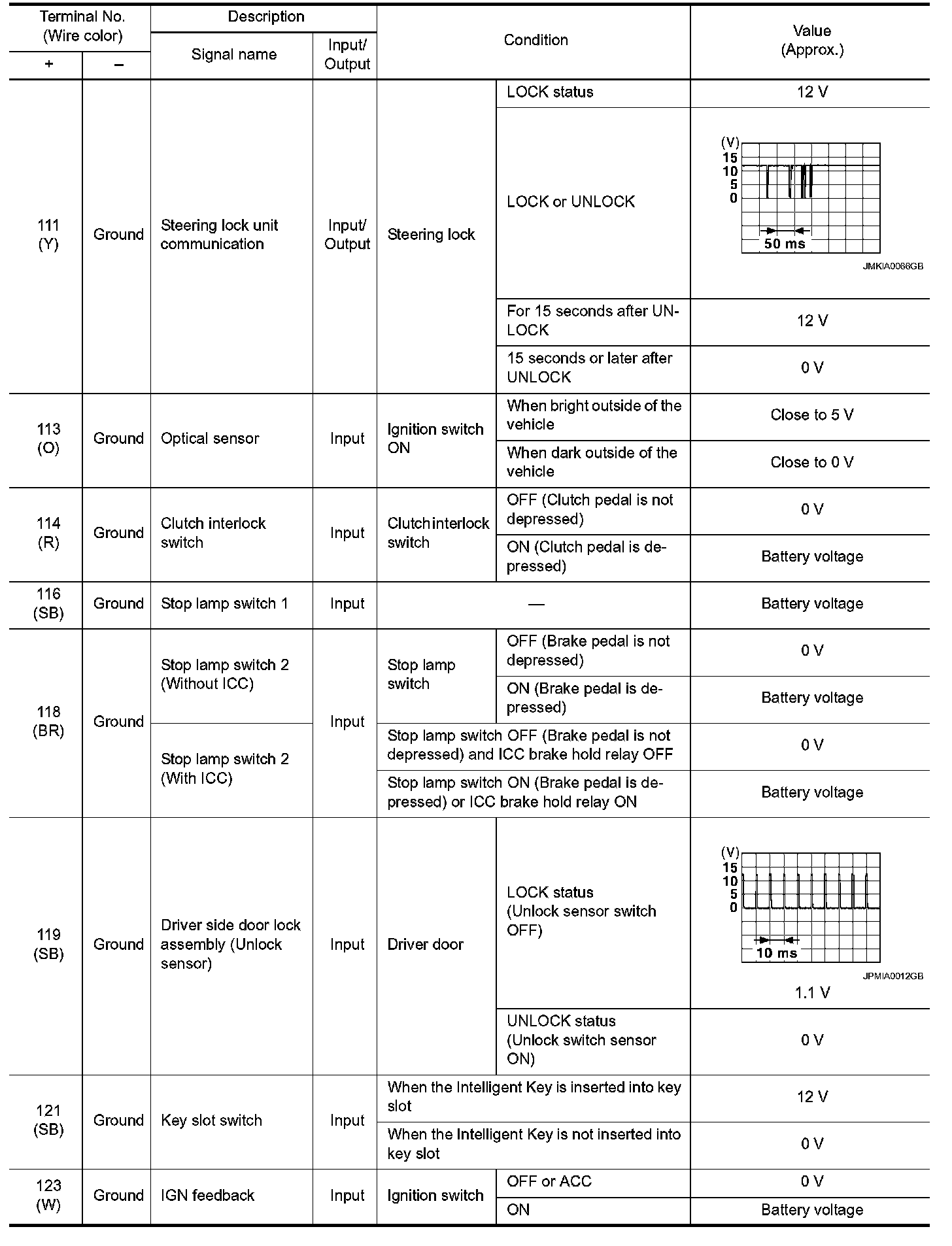

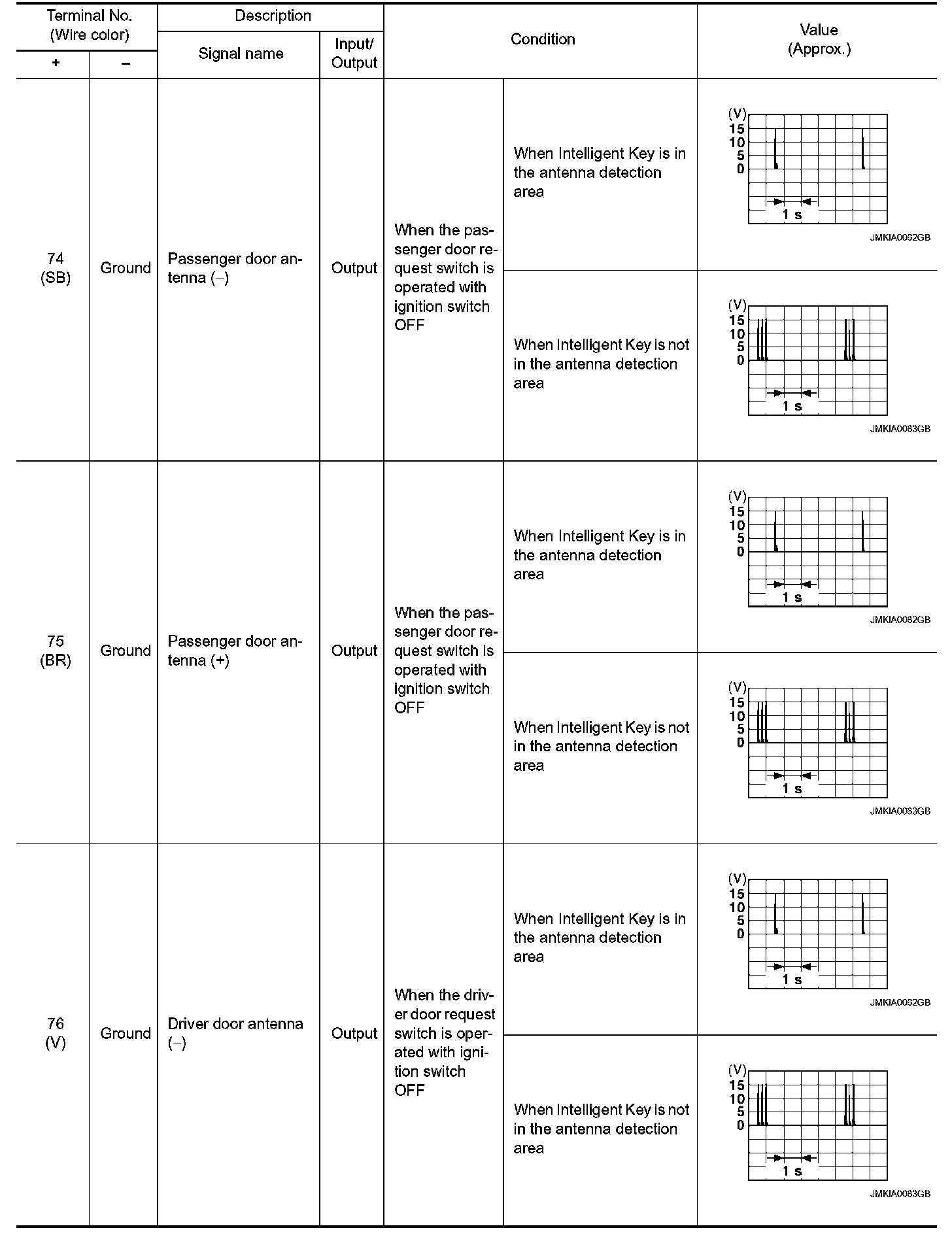

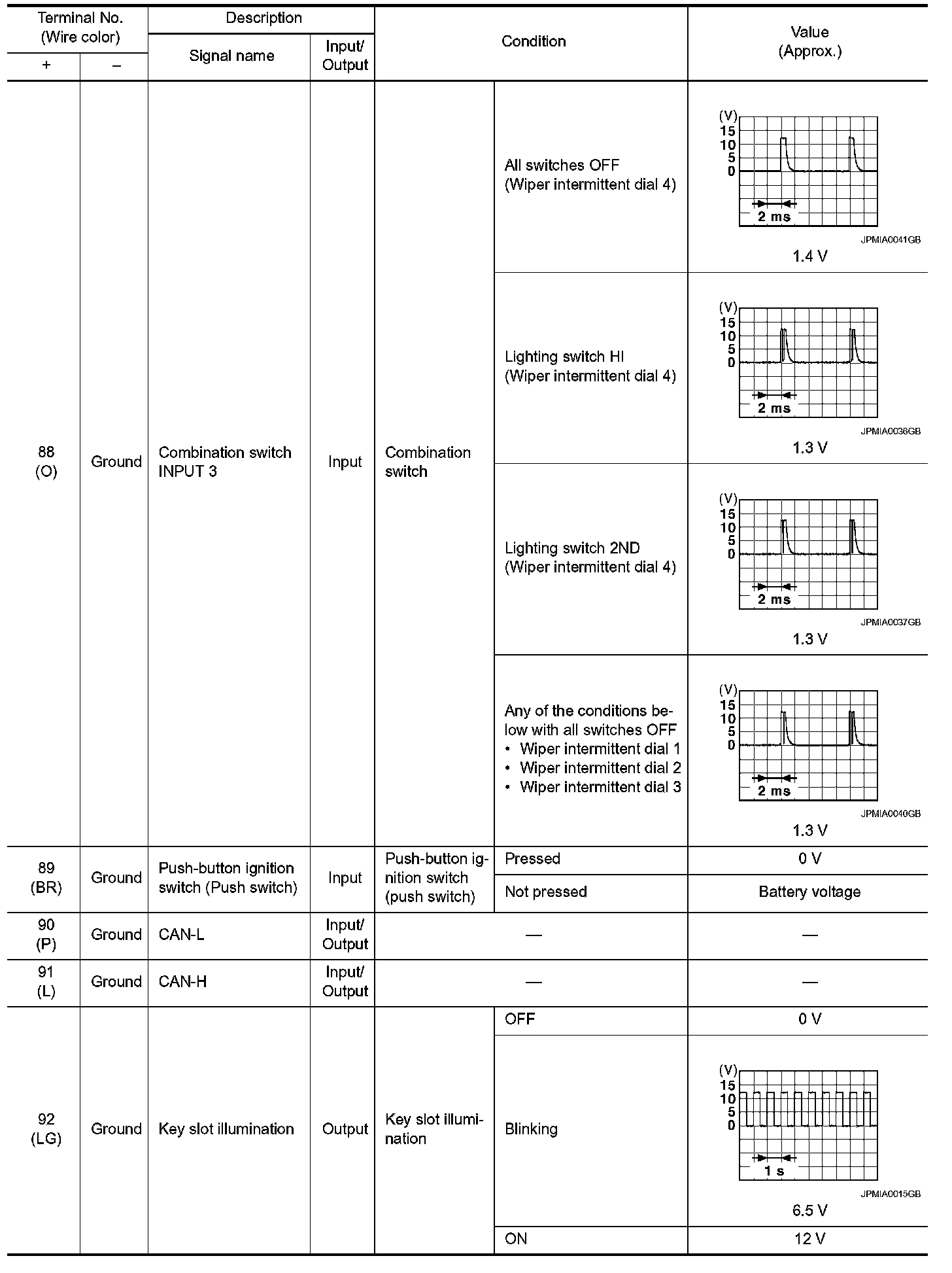

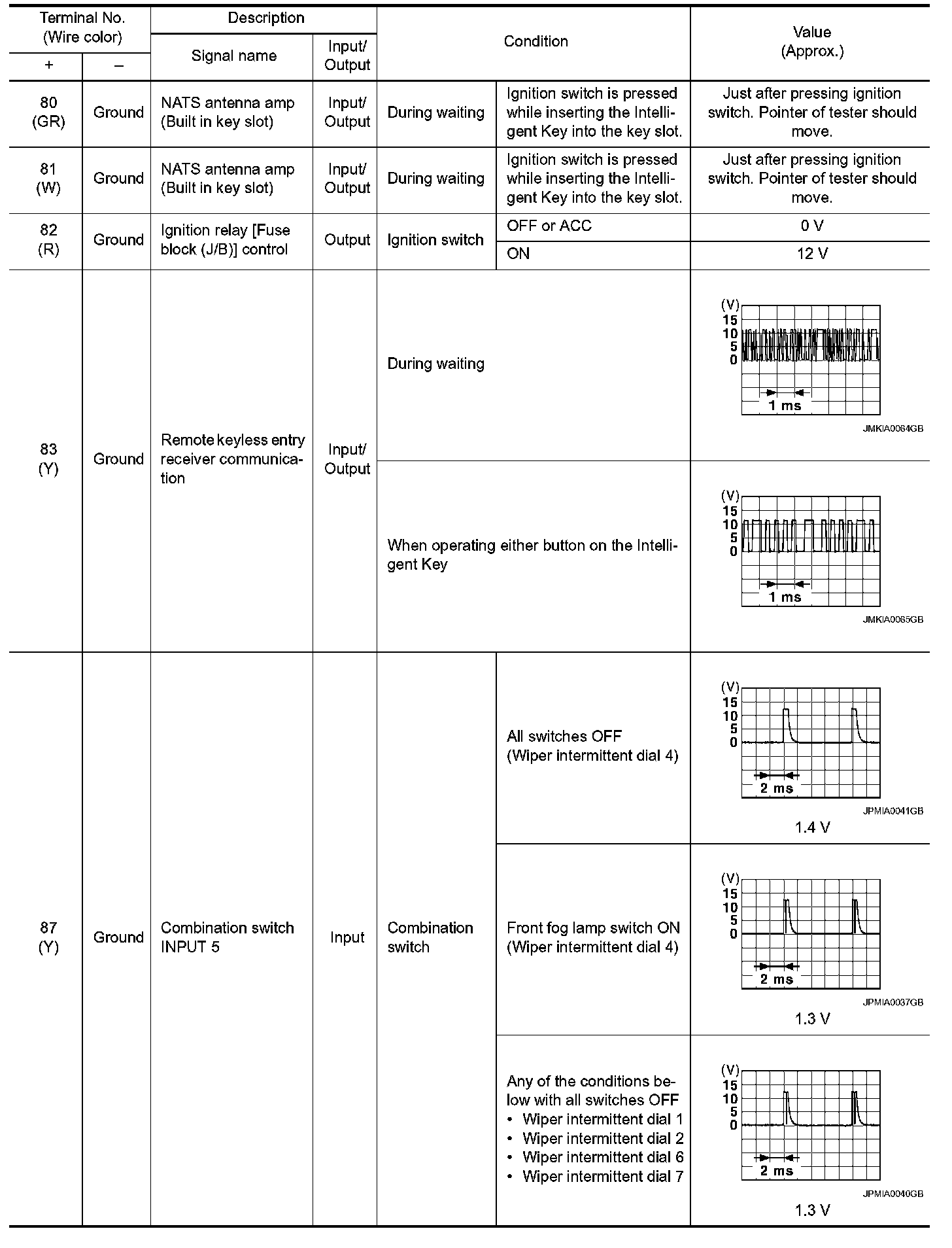

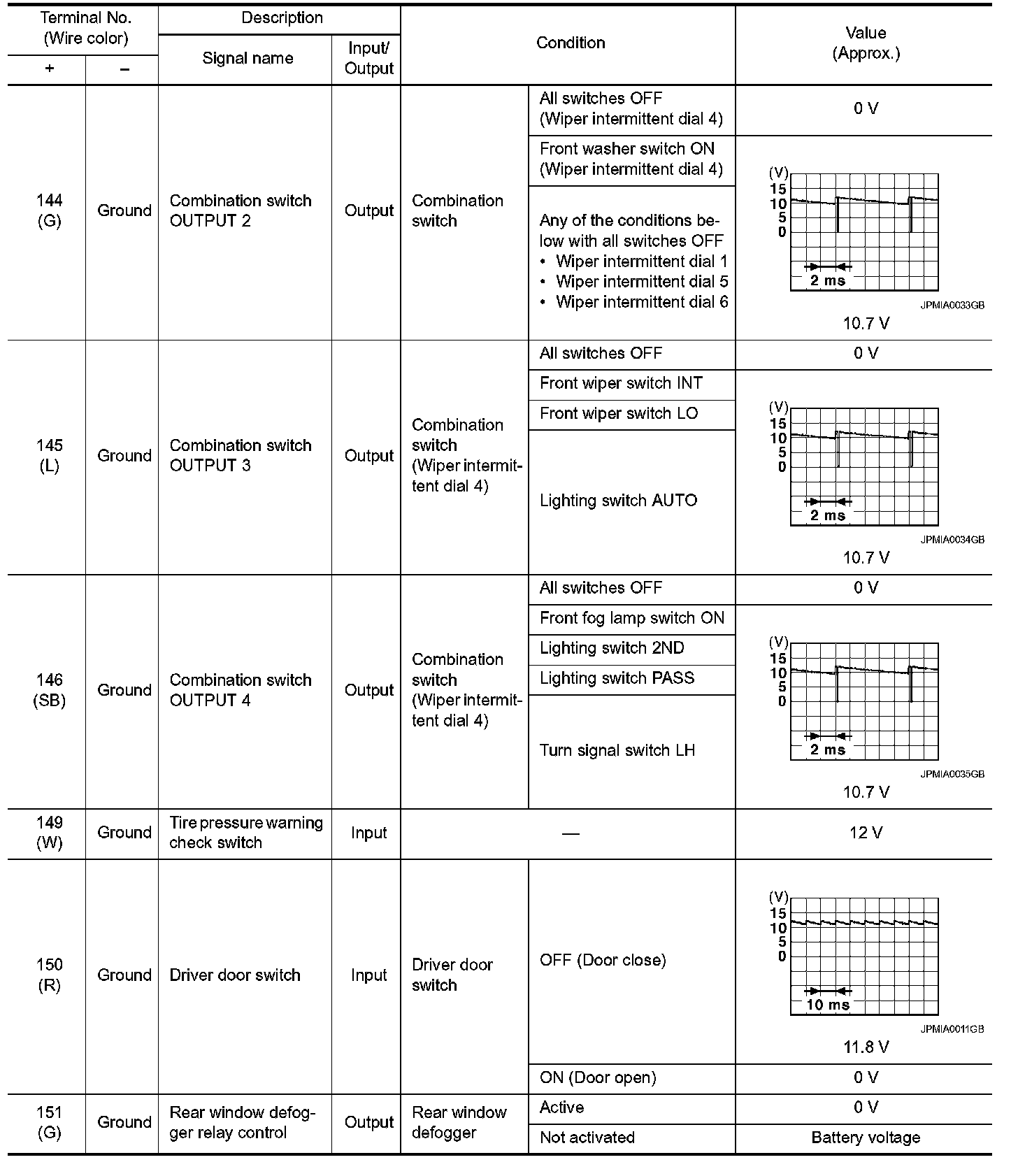

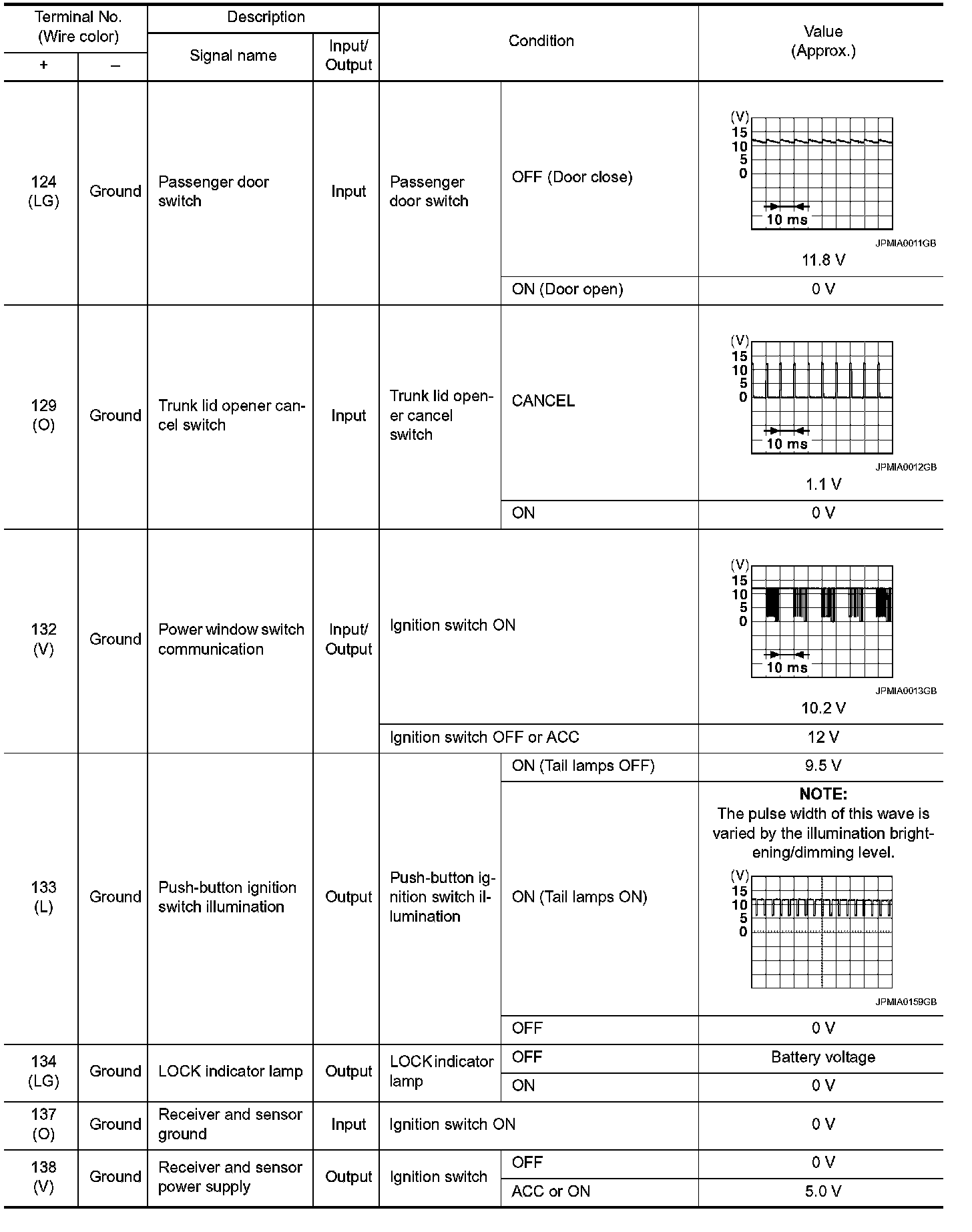

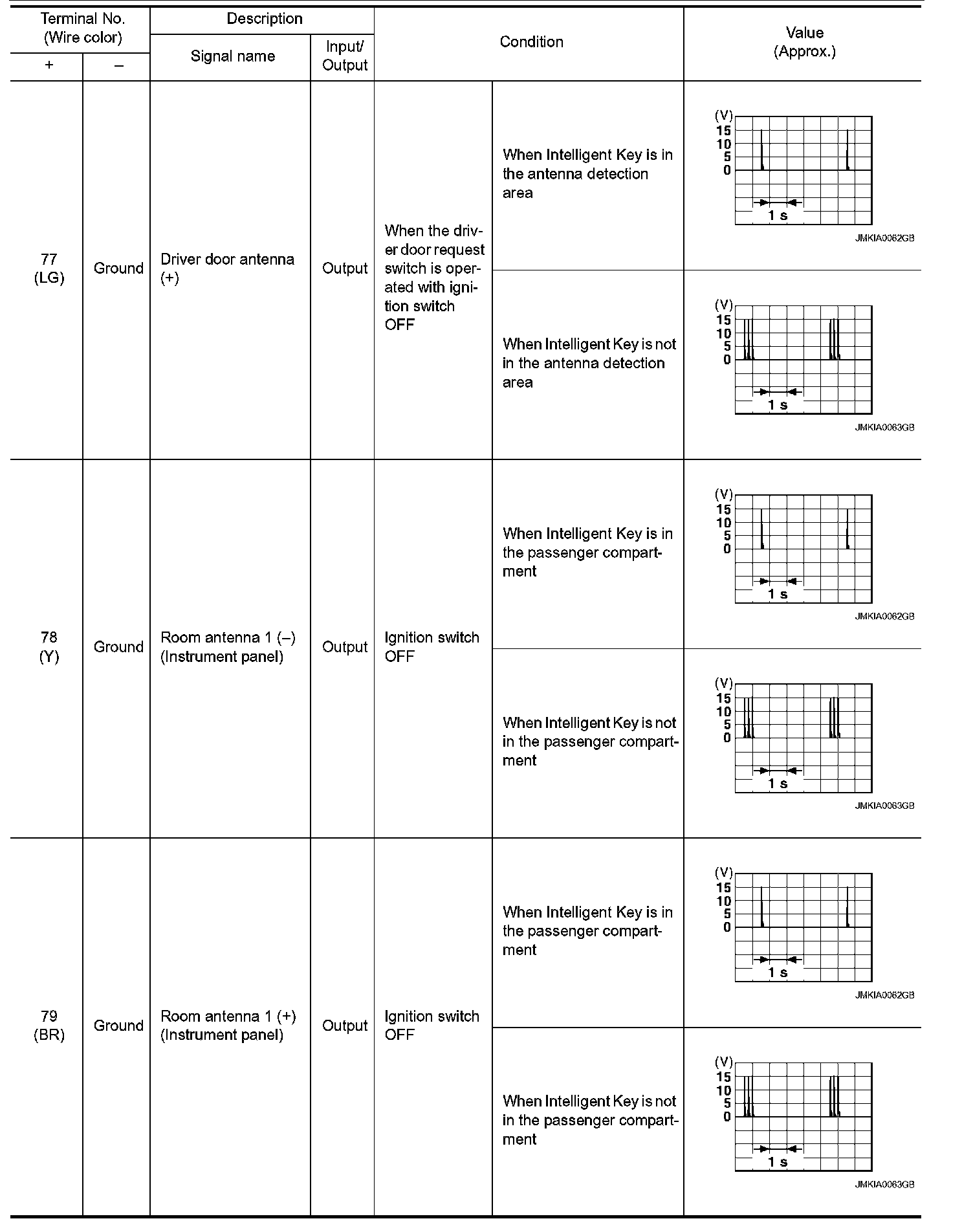

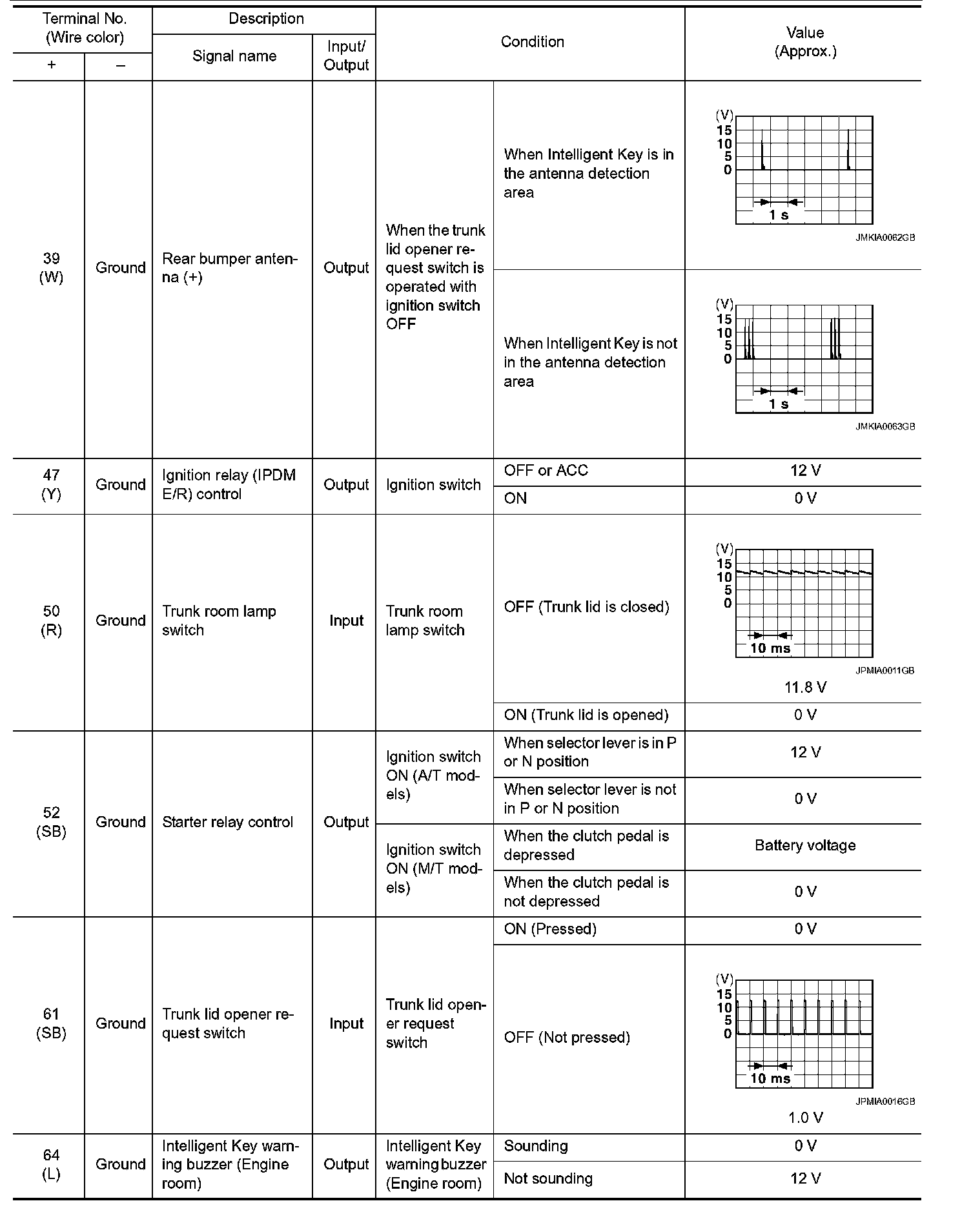

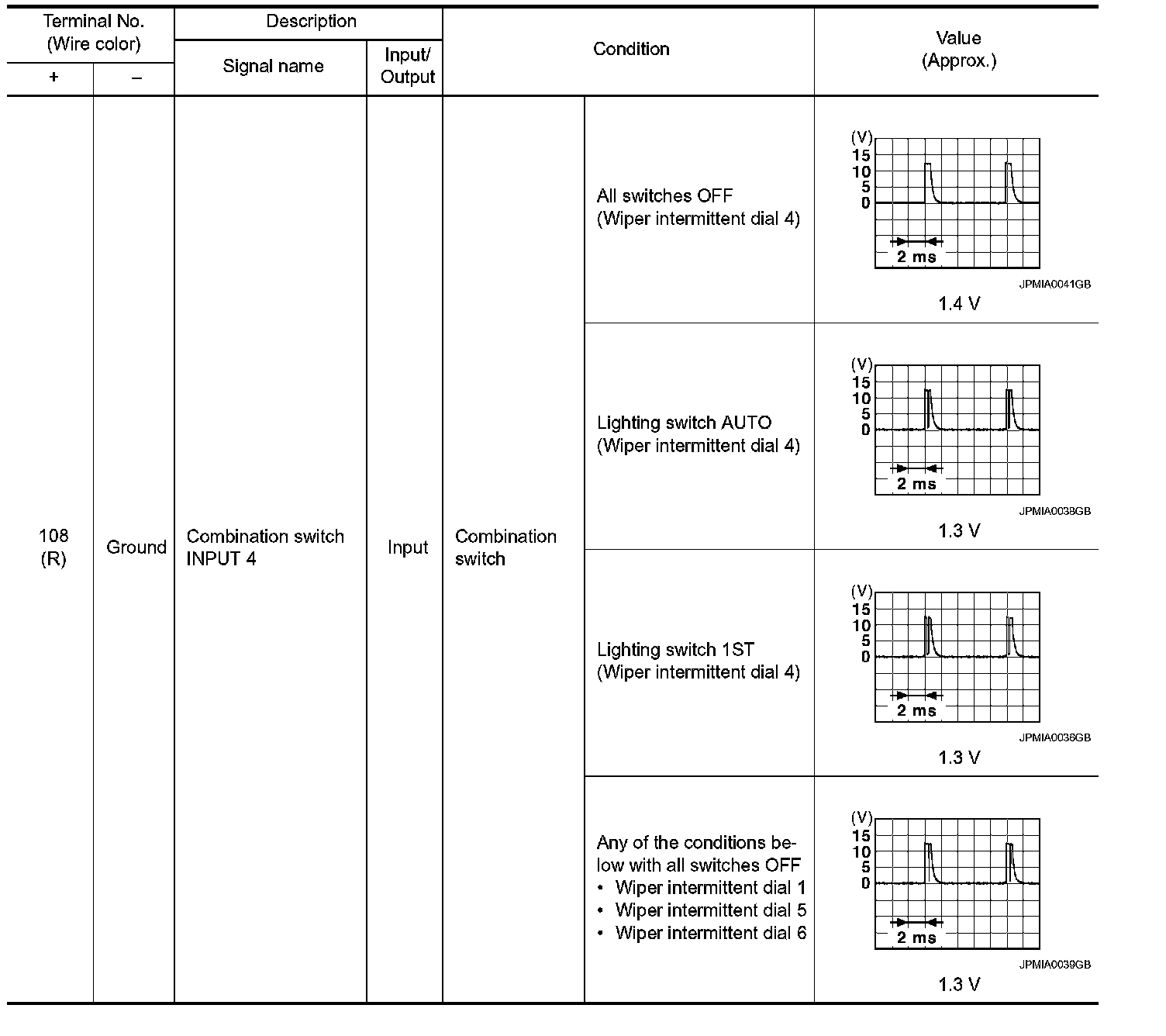

PHYSICAL VALUES
