Crankshaft Main Bearing

SERVICE DATA AND SPECIFICATIONS (SDS)

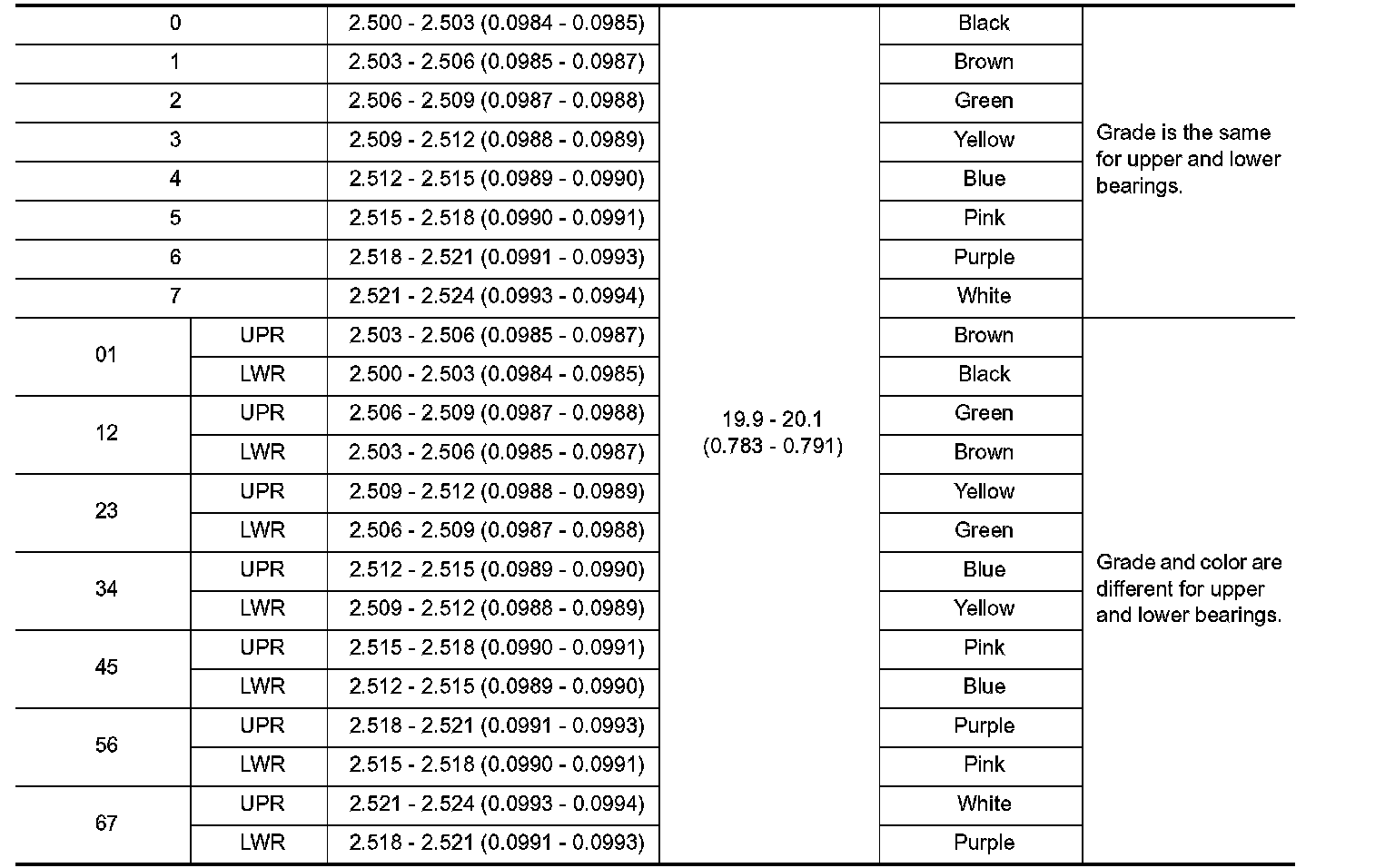

Main Bearing


MAIN BEARING














UNDERSIZE






MAIN BEARING OIL CLEARANCE





Lower cylinder block bolts





1. Tighten bolts (No. 17 to 26) 25.0 Nm (2.6 kg-m, 18 ft-lb)
2. Repeat step





3. Tighten bolts (No. 1 to 16) 35.3 Nm (3.6 kg-m, 26 ft-lb)

4. Turn bolts (No. 1 to 16) 90 degrees
