Wiring Diagram - 4WAS System
>>
4WAS Main Control Unit
4WAS Main Control Unit
4WAS MAIN CONTROL UNIT

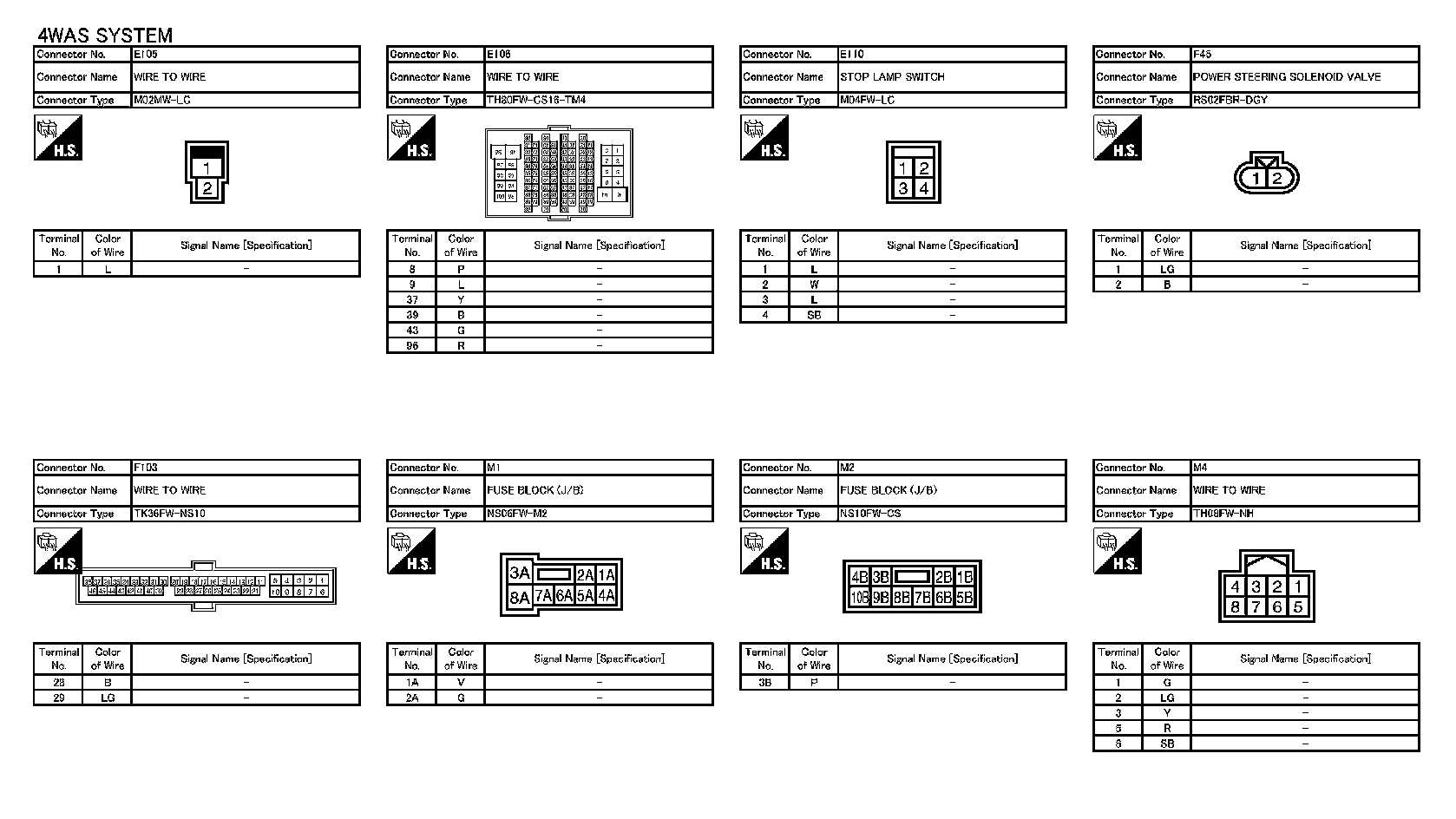

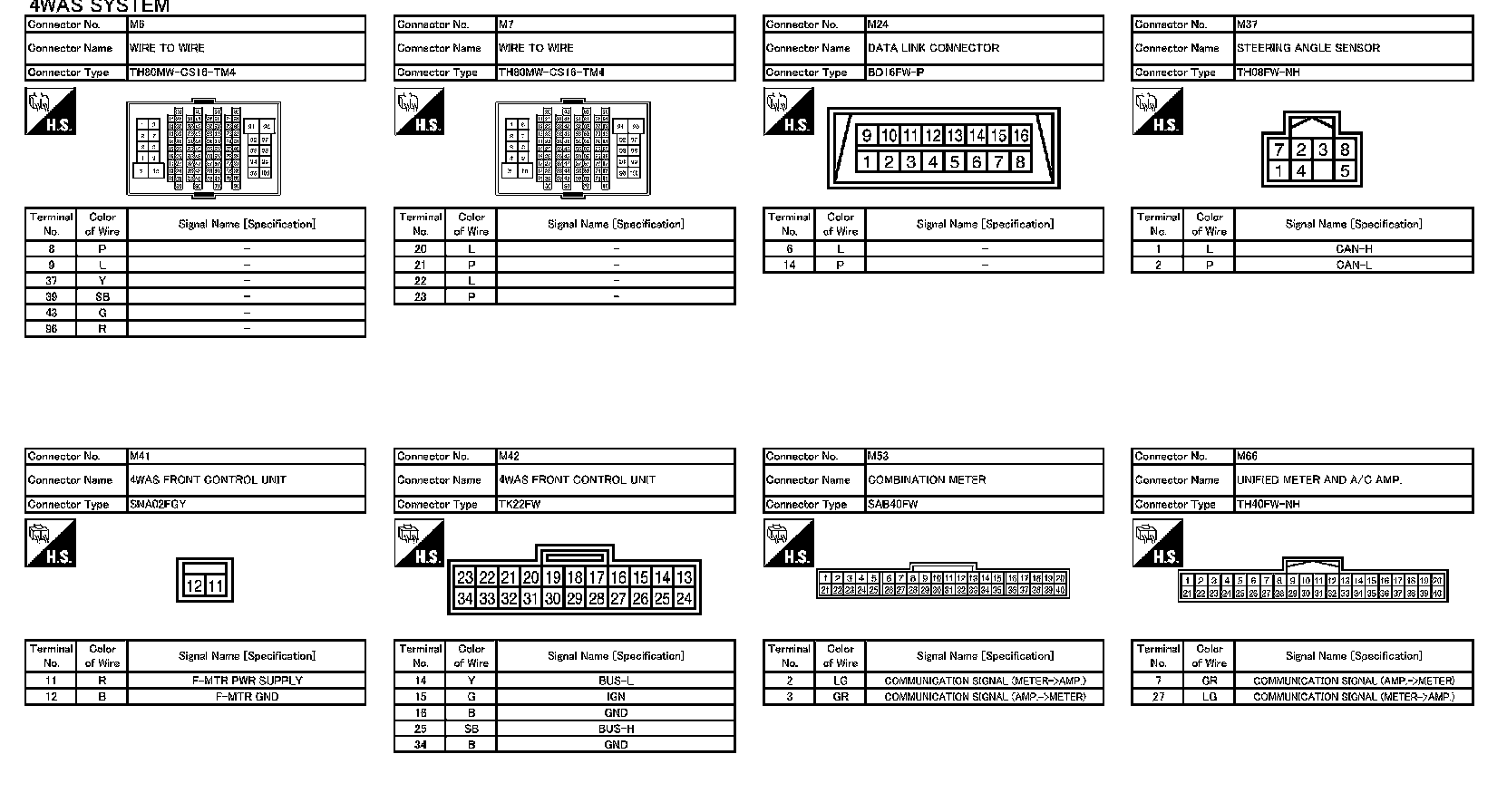

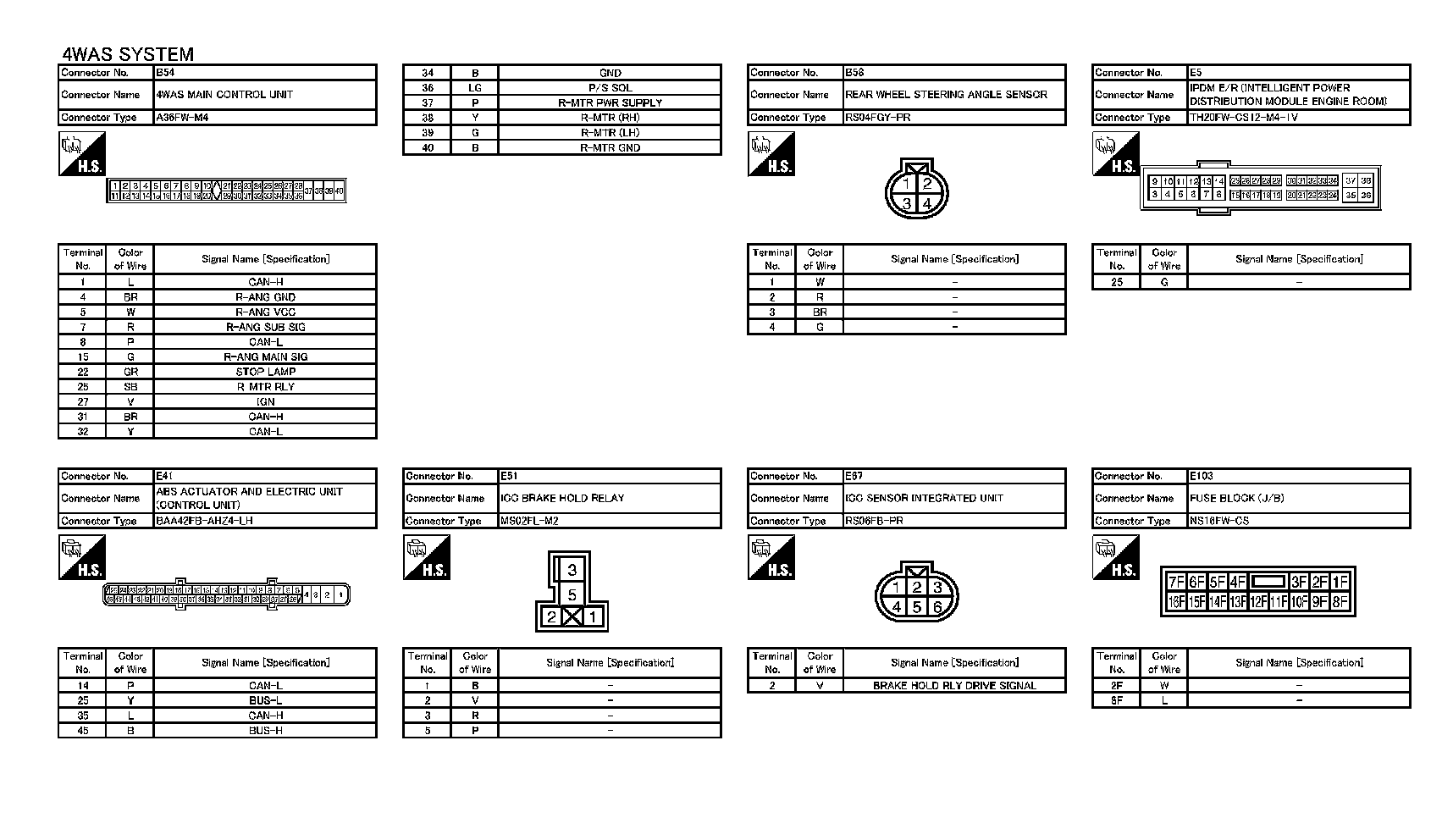

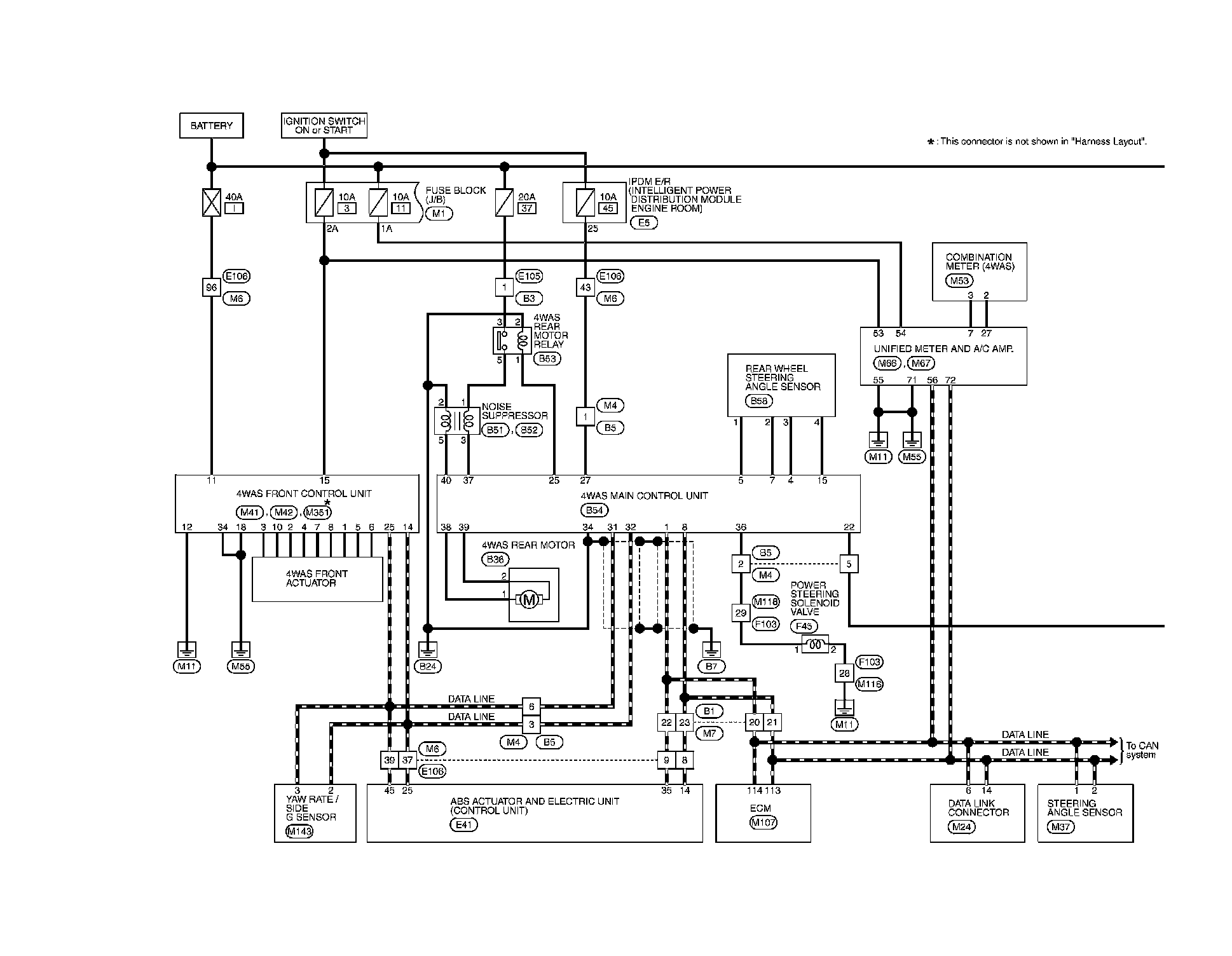

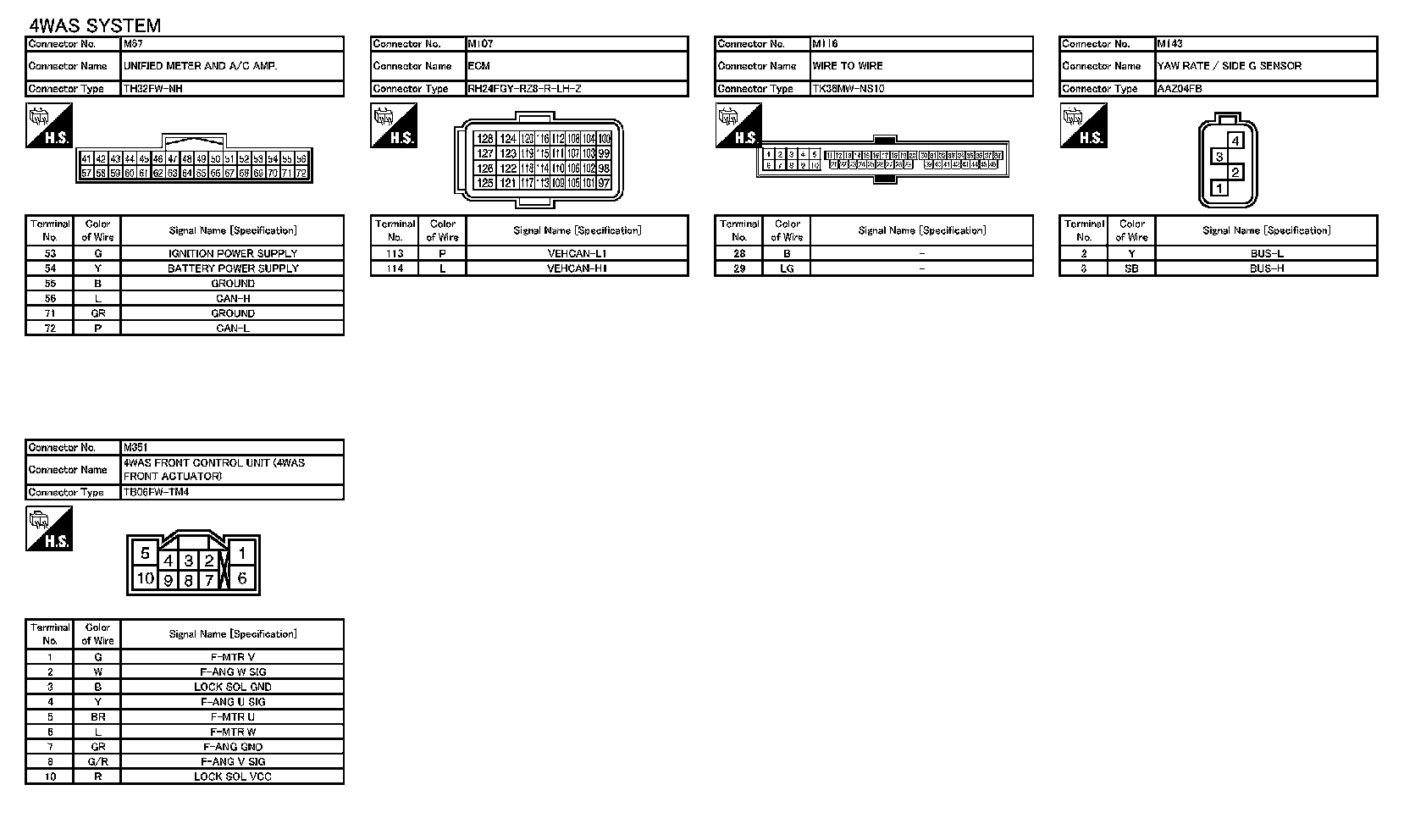

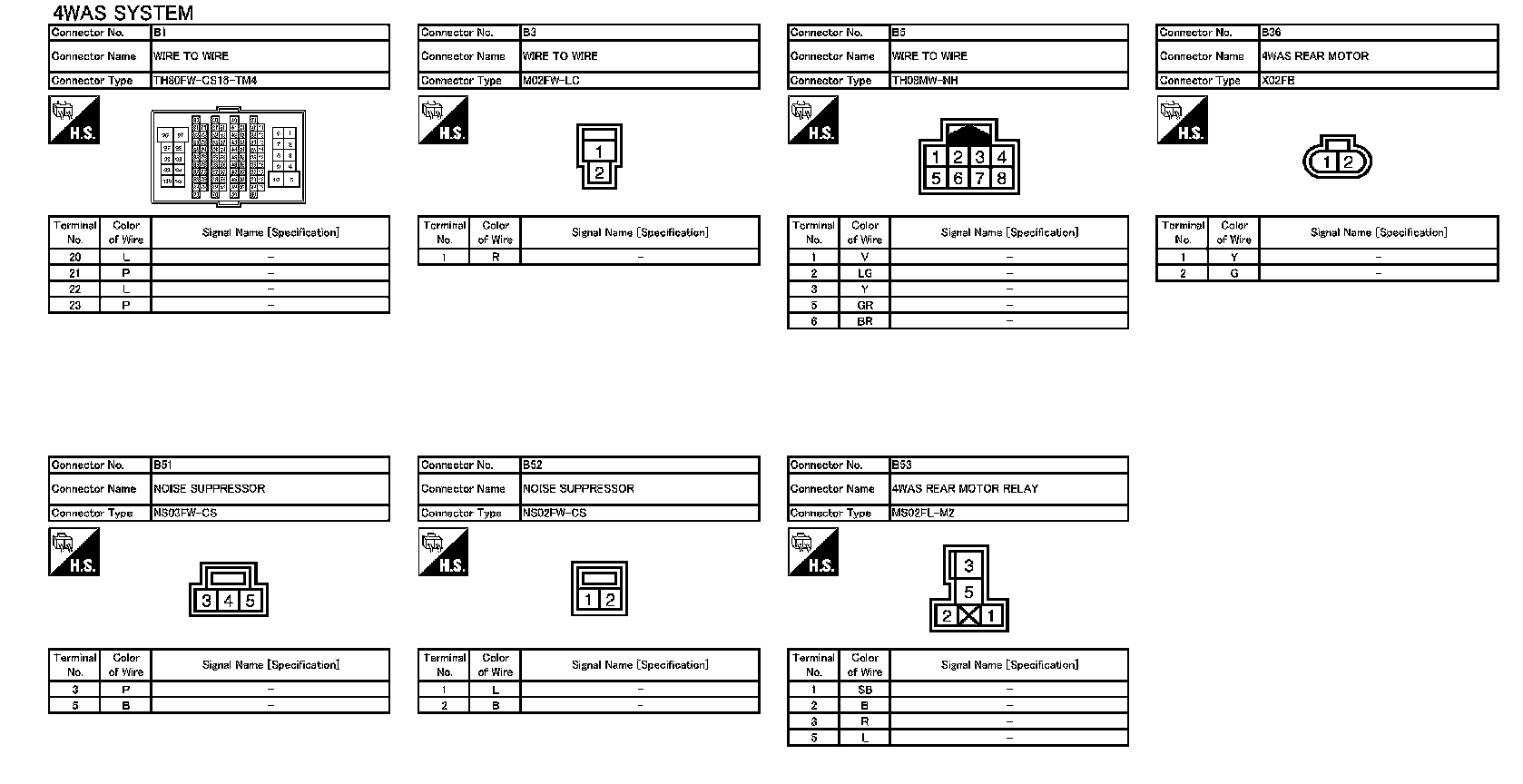

Wiring Diagram - 4WAS SYSTEM -
