Wiring Diagram - 4WAS System
>>
4WAS Front Control Unit
4WAS Front Control Unit
4WAS FRONT CONTROL UNIT

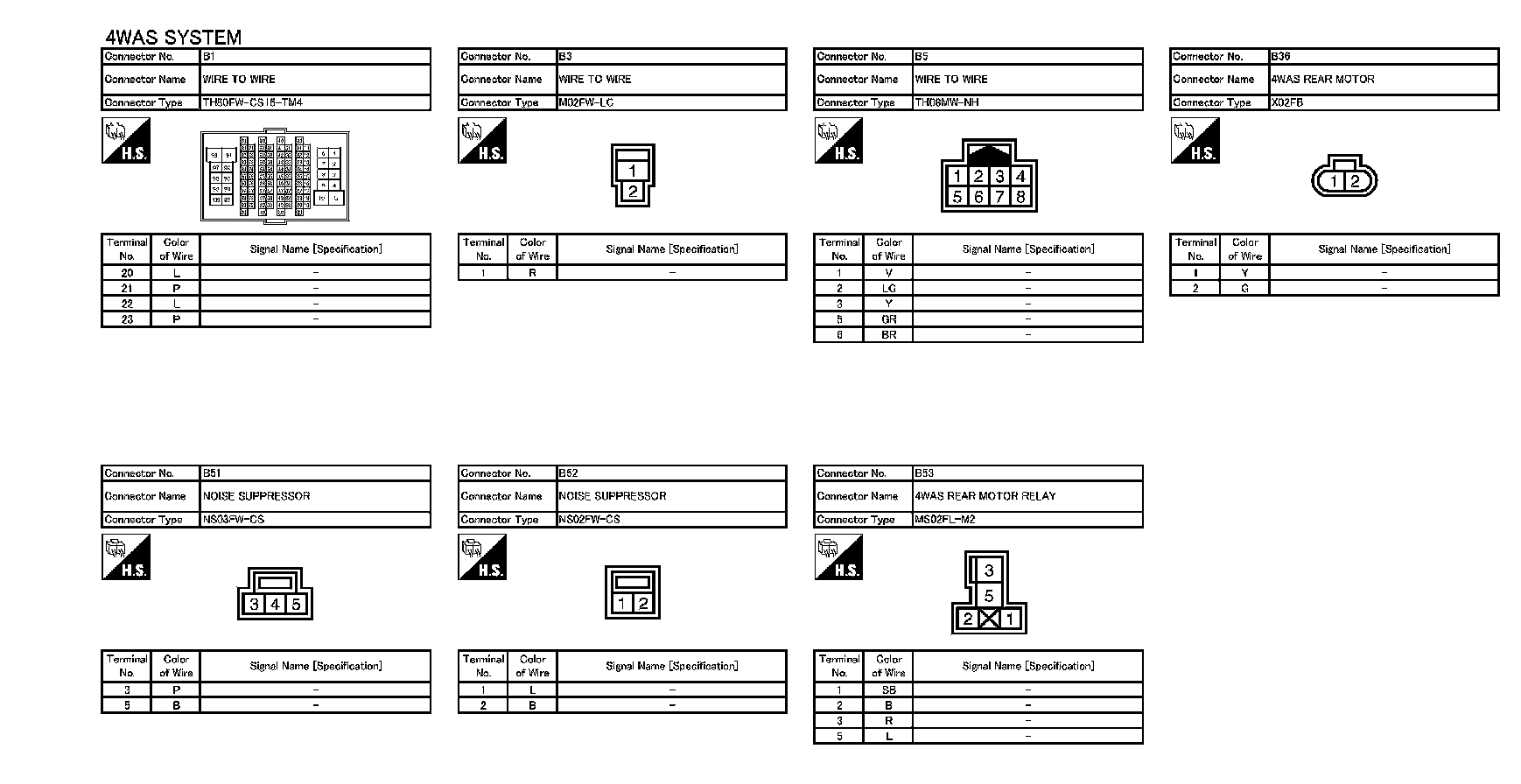

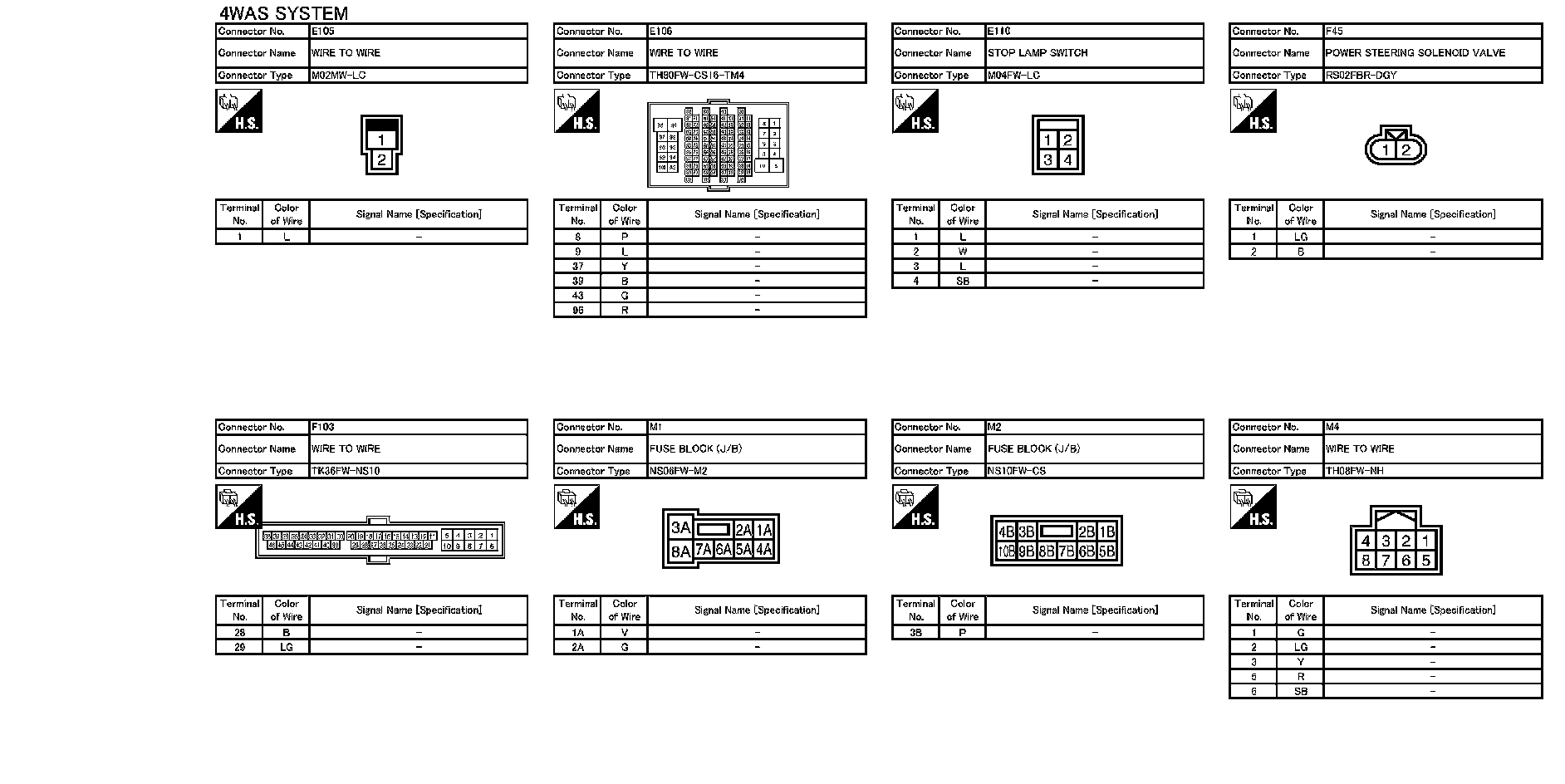

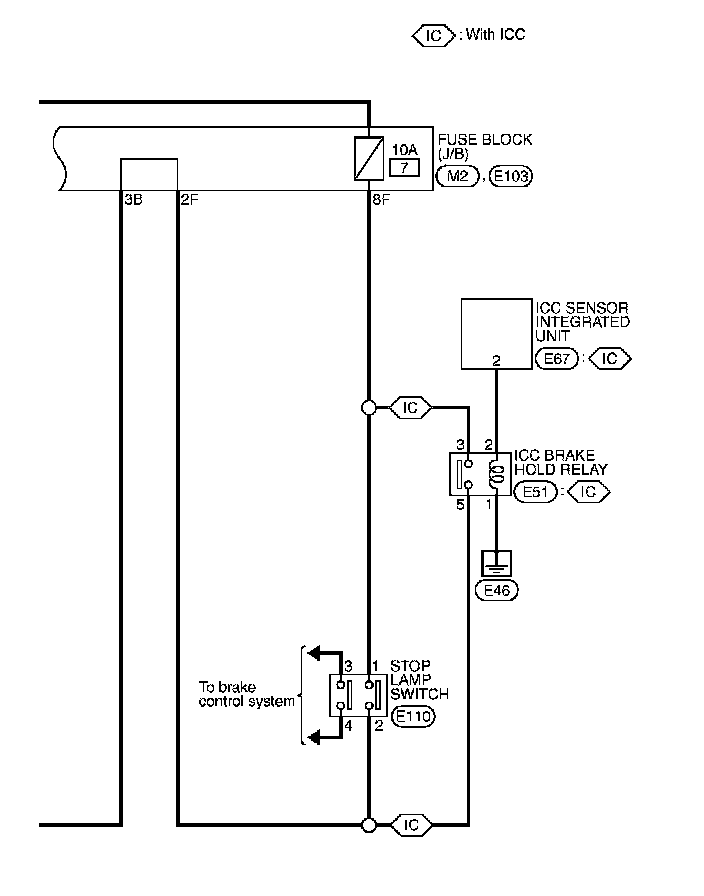

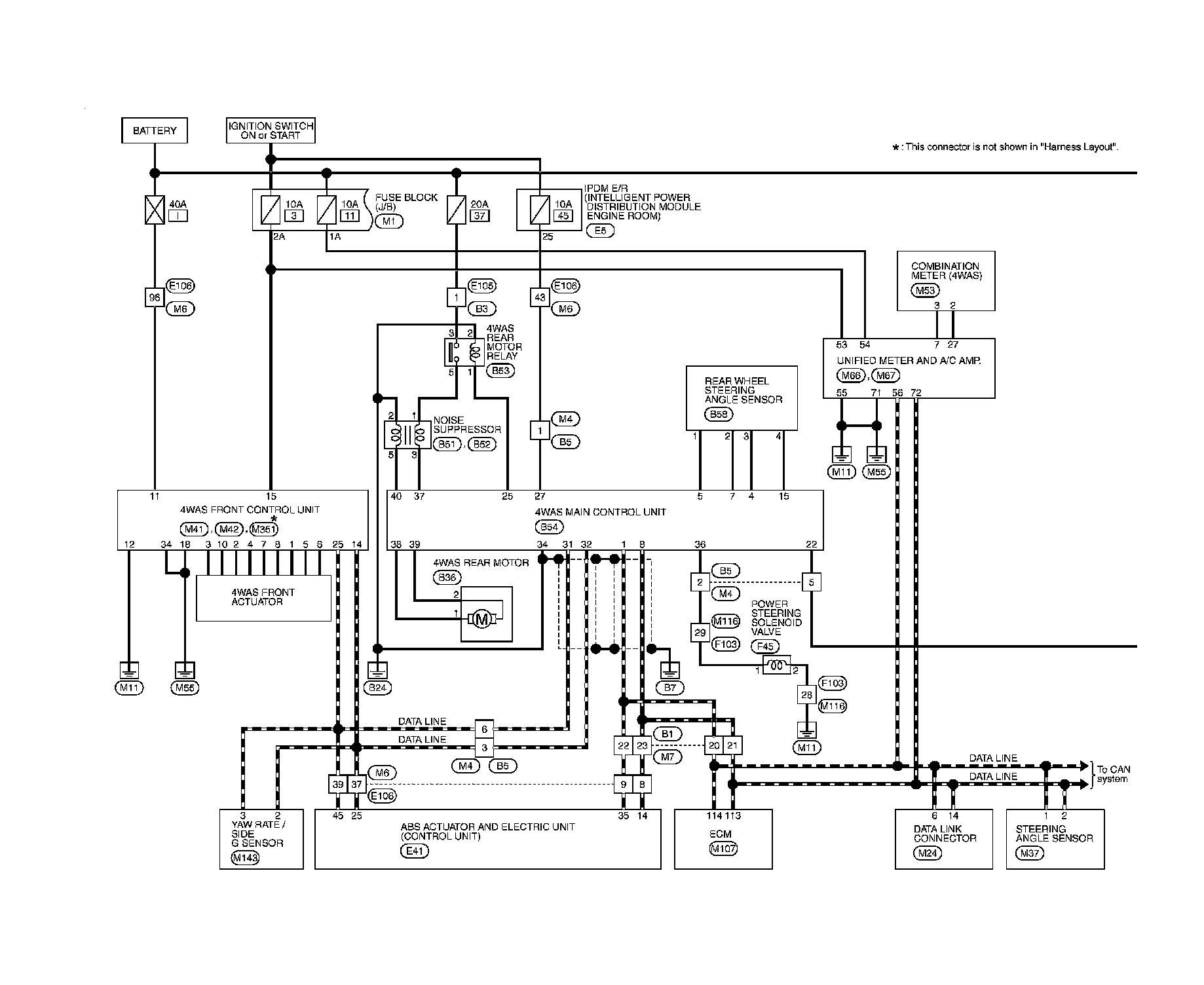

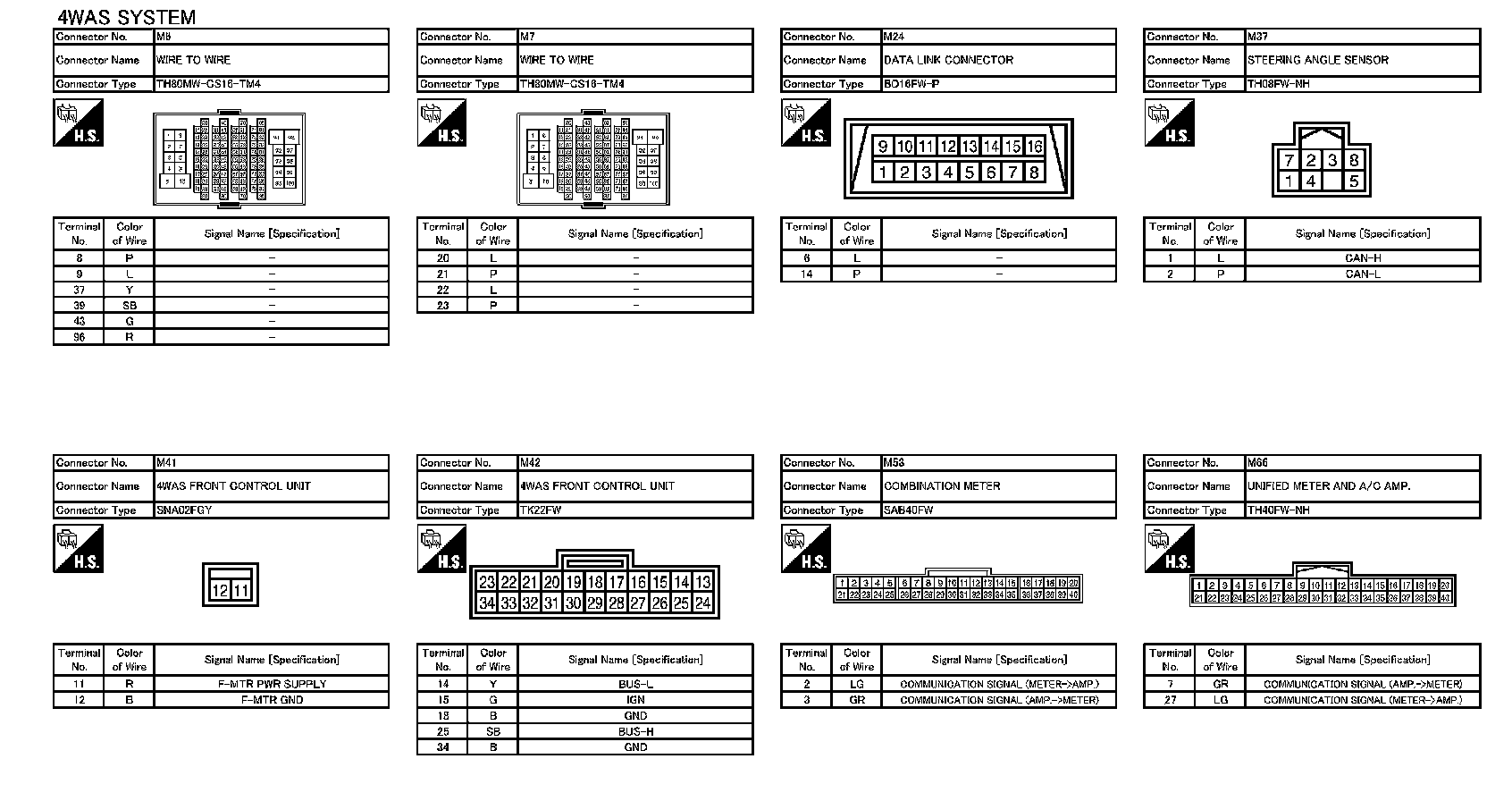

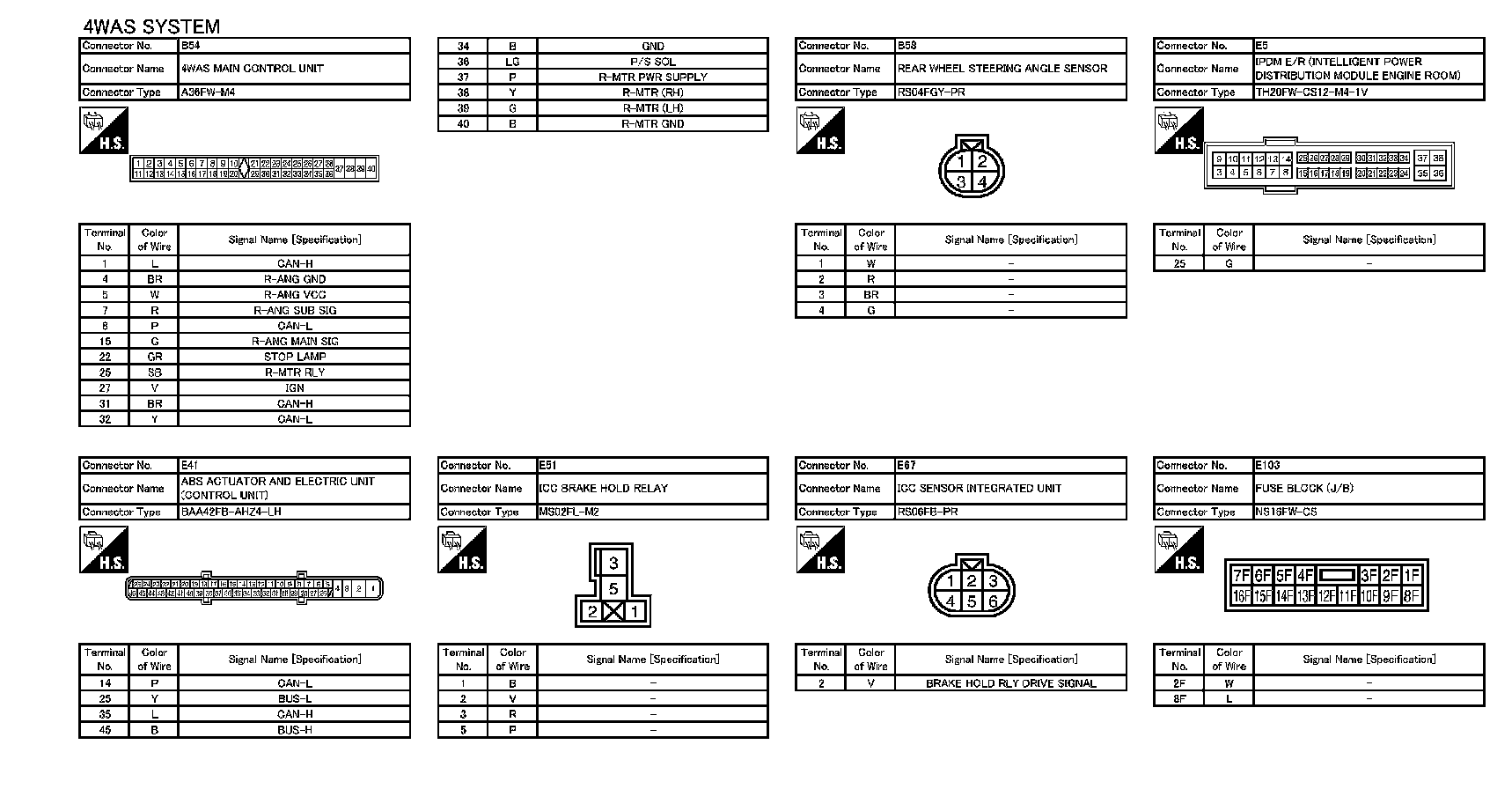

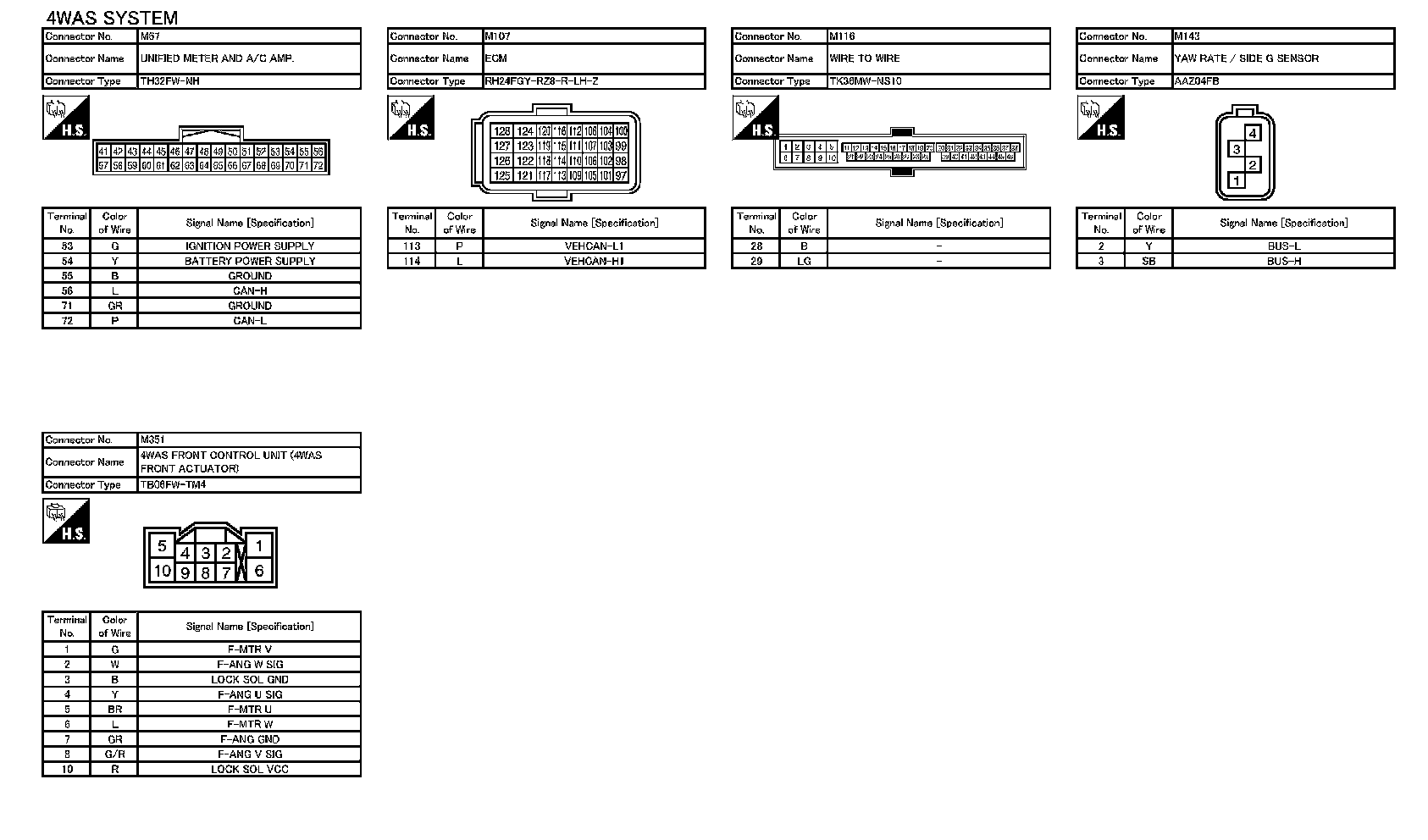

Wiring Diagram - 4WAS SYSTEM -
