Door Mirror
>>
Exploded View
Exploded View
DOOR MIRROR

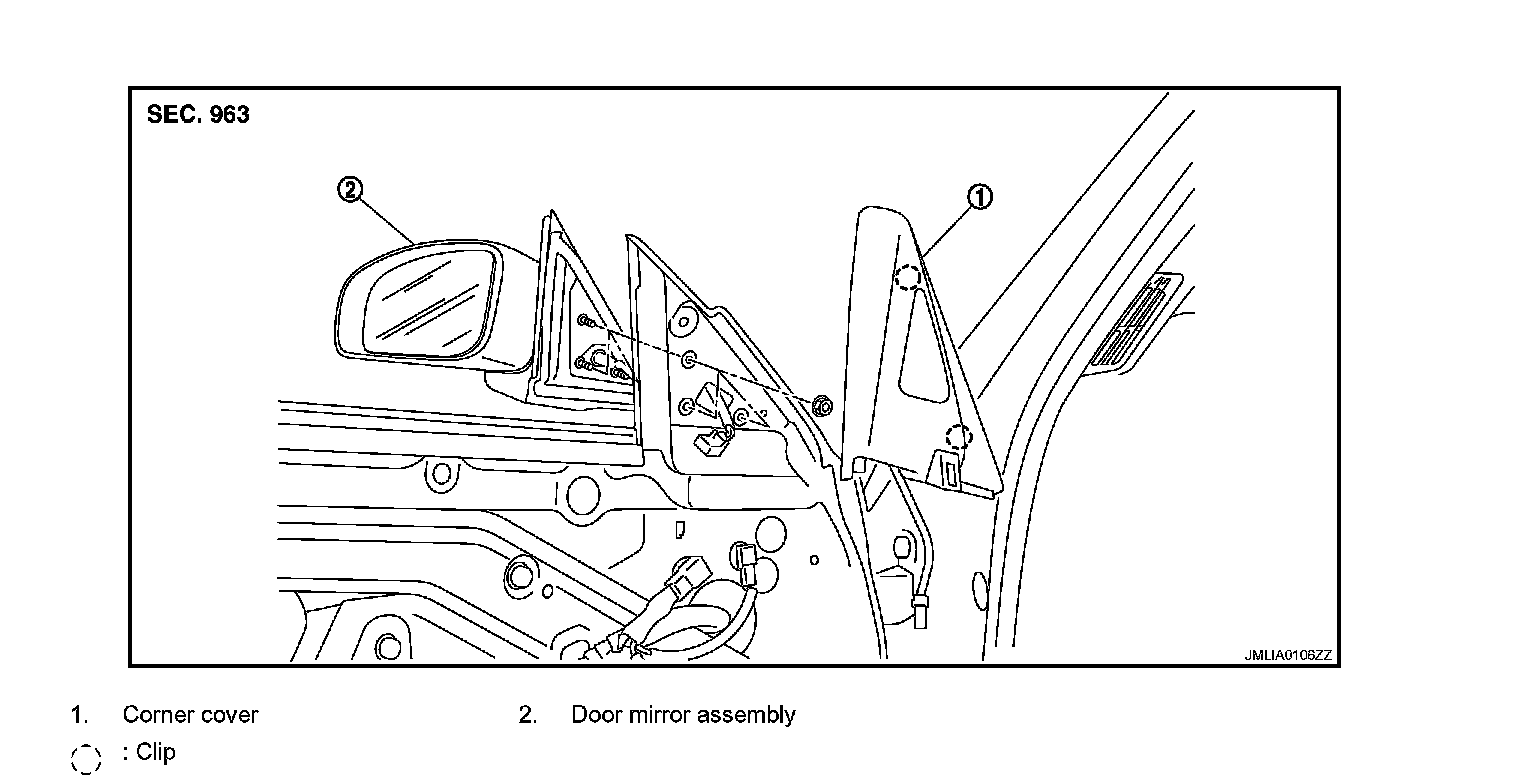

DOOR MIRROR ASSEMBLY : Exploded View
REMOVAL

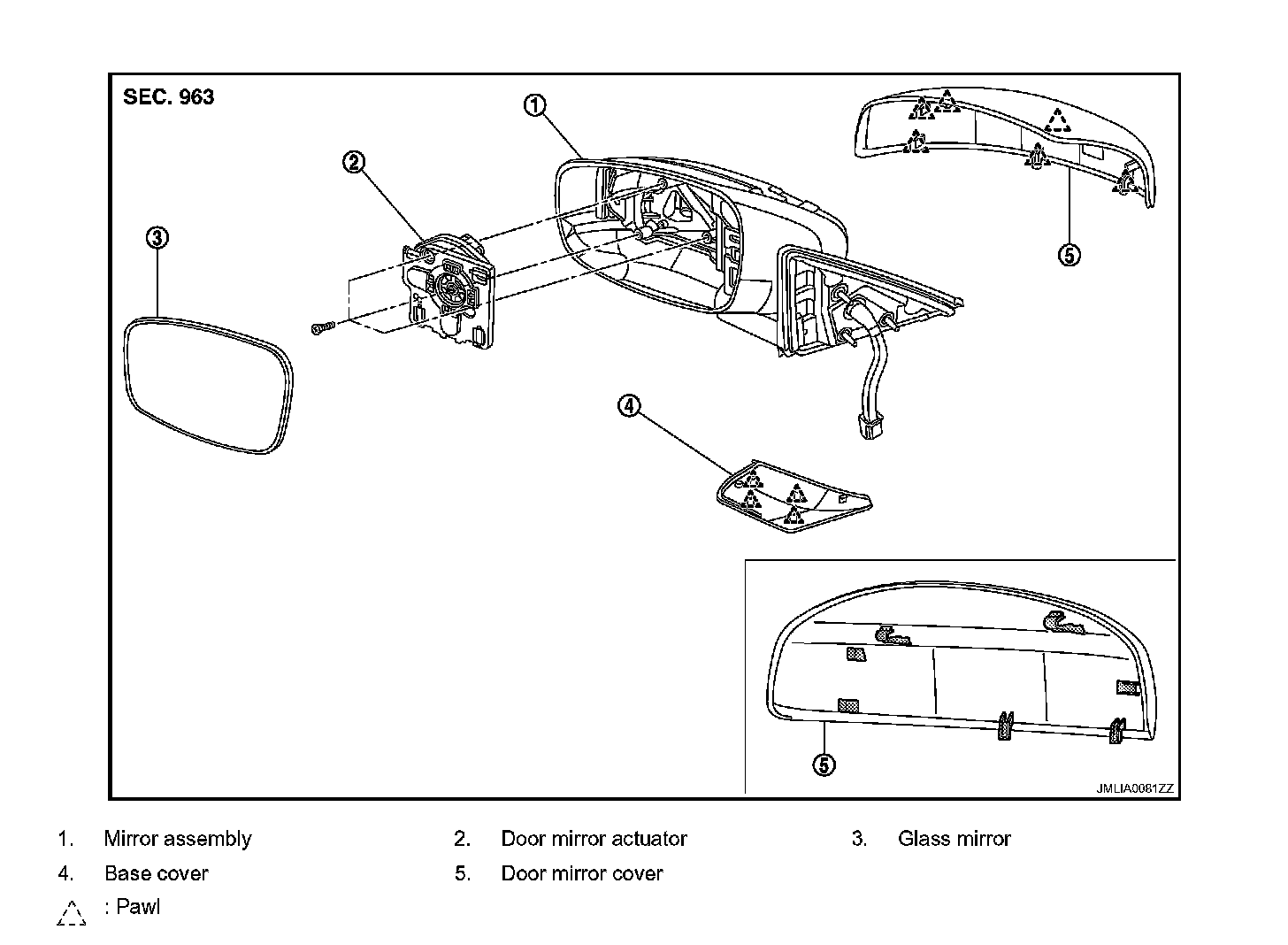

DISASSEMBLY
