Rear Power Window Switch





REAR POWER WINDOW SWITCH


Reference Value

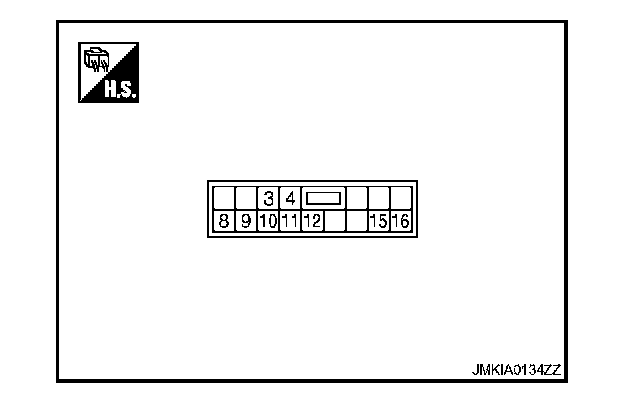

TERMINAL LAYOUT

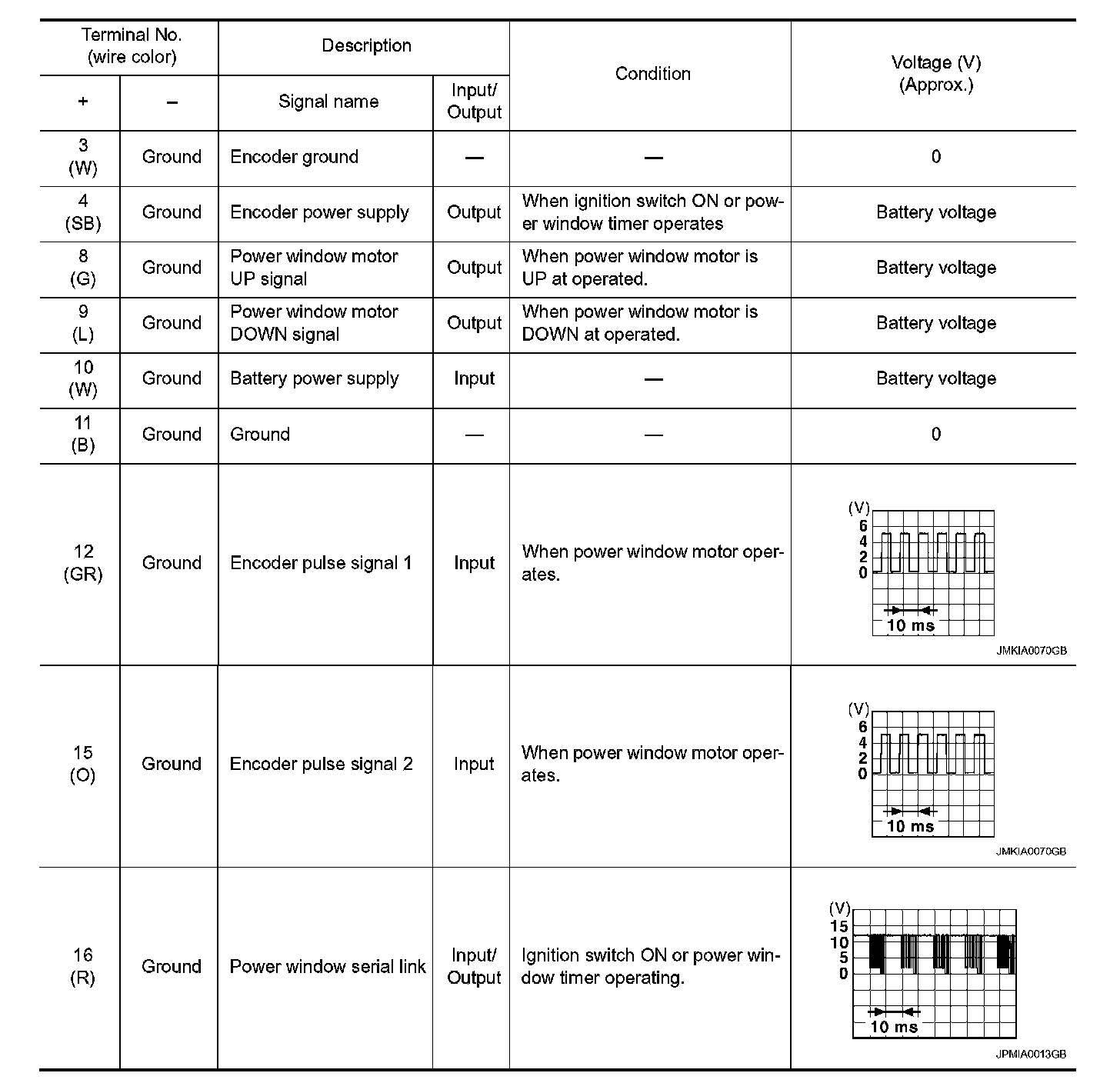

PHYSICAL VALUES

Rear Power Window Switch
