Front and Rear Window Anti-Pinch





FRONT POWER WINDOW SWITCH


Reference Value

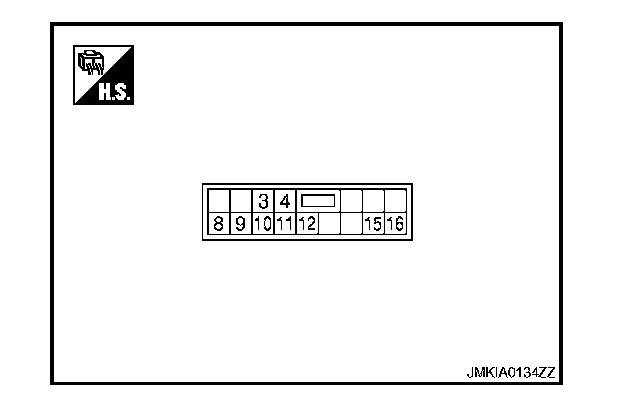

TERMINAL LAYOUT

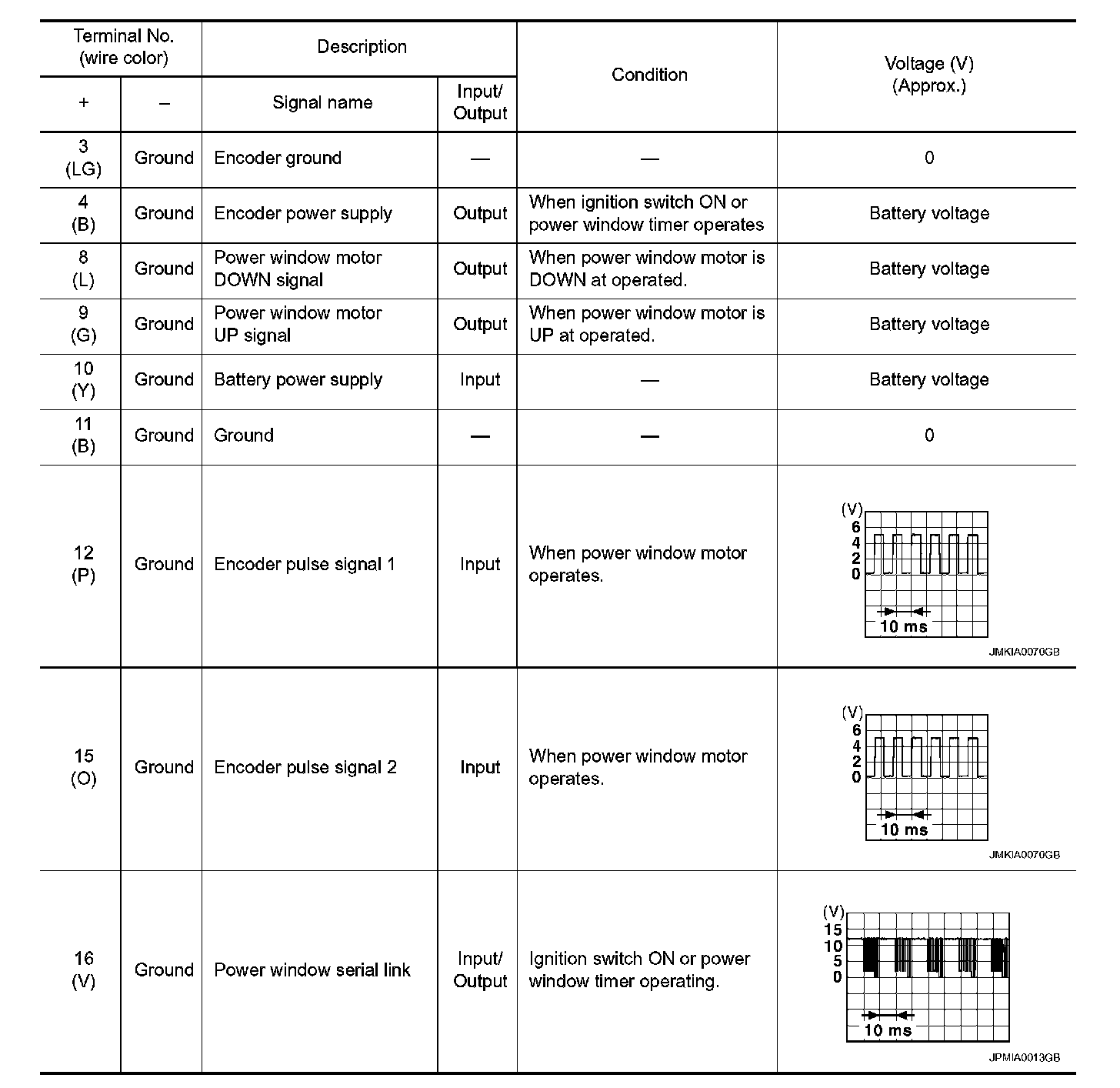

PHYSICAL VALUES

Front Power Window Switch
