System Specifications

Timing Cover





M10 bolts : 1, 2, 3, 4, 5, 6, 7 55.0 N�m (5.6 kg-m, 41 ft-lb)
M6 bolts : Except the above 12.7 N�m (1.3 kg-m, 9 ft-lb)

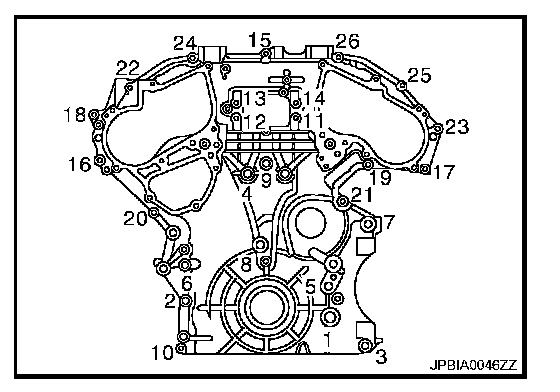

After all bolts are tightened, retighten them to the specified
torque in numerical order shown in the figure

Crankshaft pulley

Crankshaft pulley bolt 44.1 N�m (4.5 kg-m, 33 ft-lb)





Tighten the bolt 90 degrees (one mark) (b)

Chain Tensioner 8.1 Nm (0.83 kg-m, 72 in-lb)
