Control Module: Locations

SHIFT CHANGE CONTROL


Component Parts Location

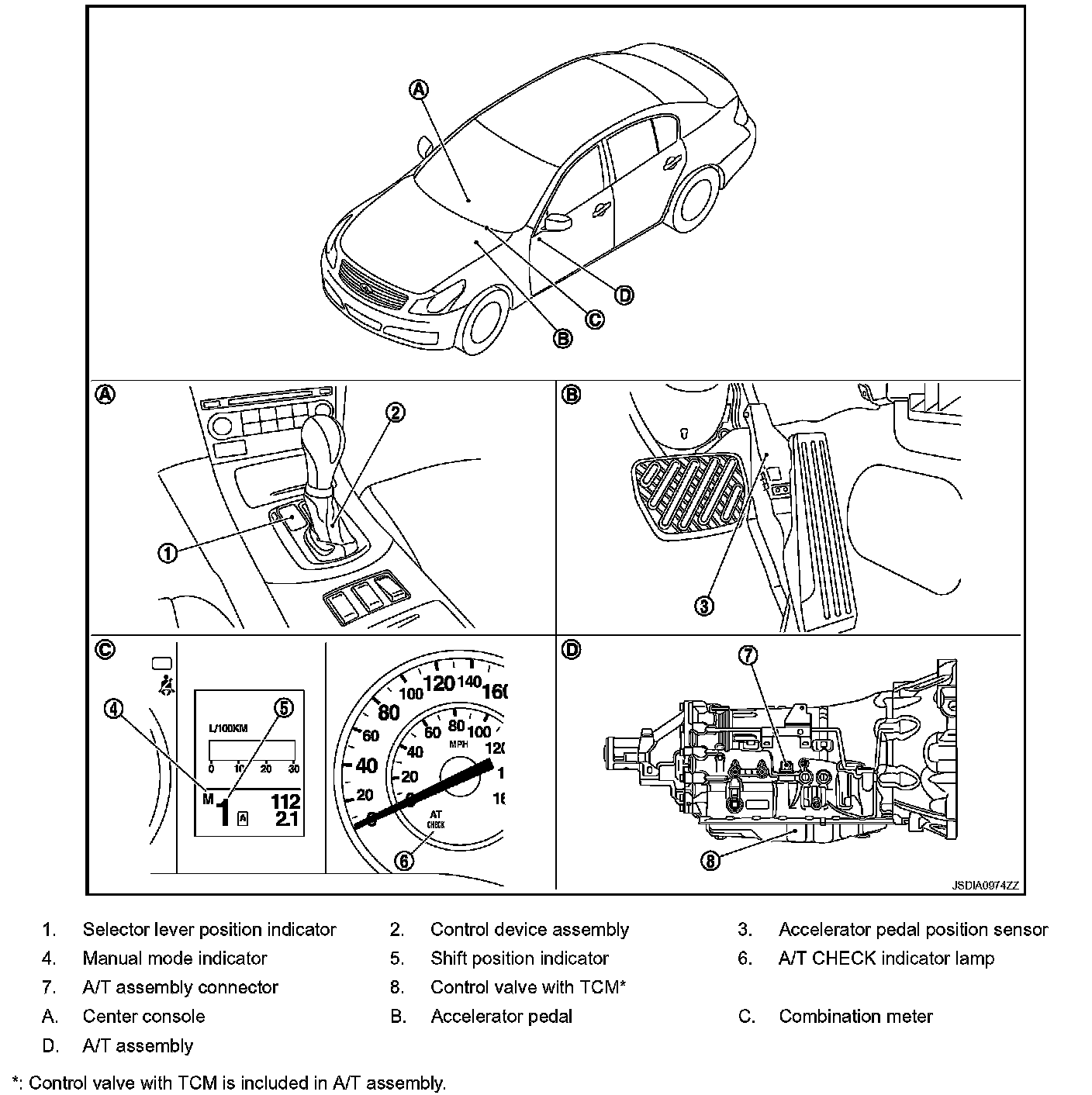

Without Paddle Shifter





NOTE:
^ The following components are included in control device assembly (2).
- Manual mode select switch
- Manual mode position select switch
- Shift position switch
^ The following components are included in control valve with TCM (8).
- TCM
- Turbine revolution sensor 1, 2
- Revolution sensor
- A/T fluid temperature sensor
- PNP switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve

With Paddle Shifter





NOTE:
^ The following components are included in control device assembly (4).
- Manual mode select switch
- Manual mode position select switch
- Shift position switch
^ The following components are included in control valve with TCM (10).
- TCM
- Turbine revolution sensor 1, 2
- Revolution sensor
- A/T fluid temperature sensor
- PNP switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
