Passenger Side





HEATED SEAT CONTROL UNIT


PASSENGER SIDE : Reference Value

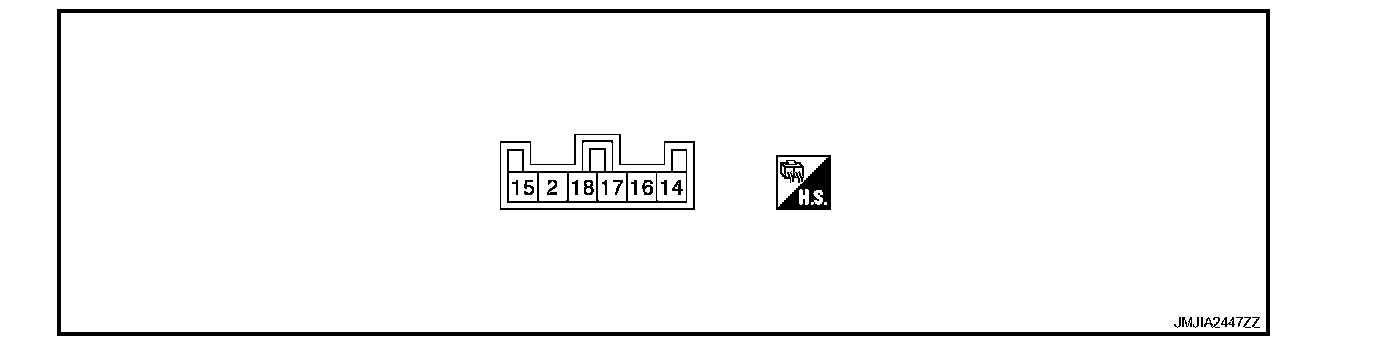

TERMINAL LAYOUT

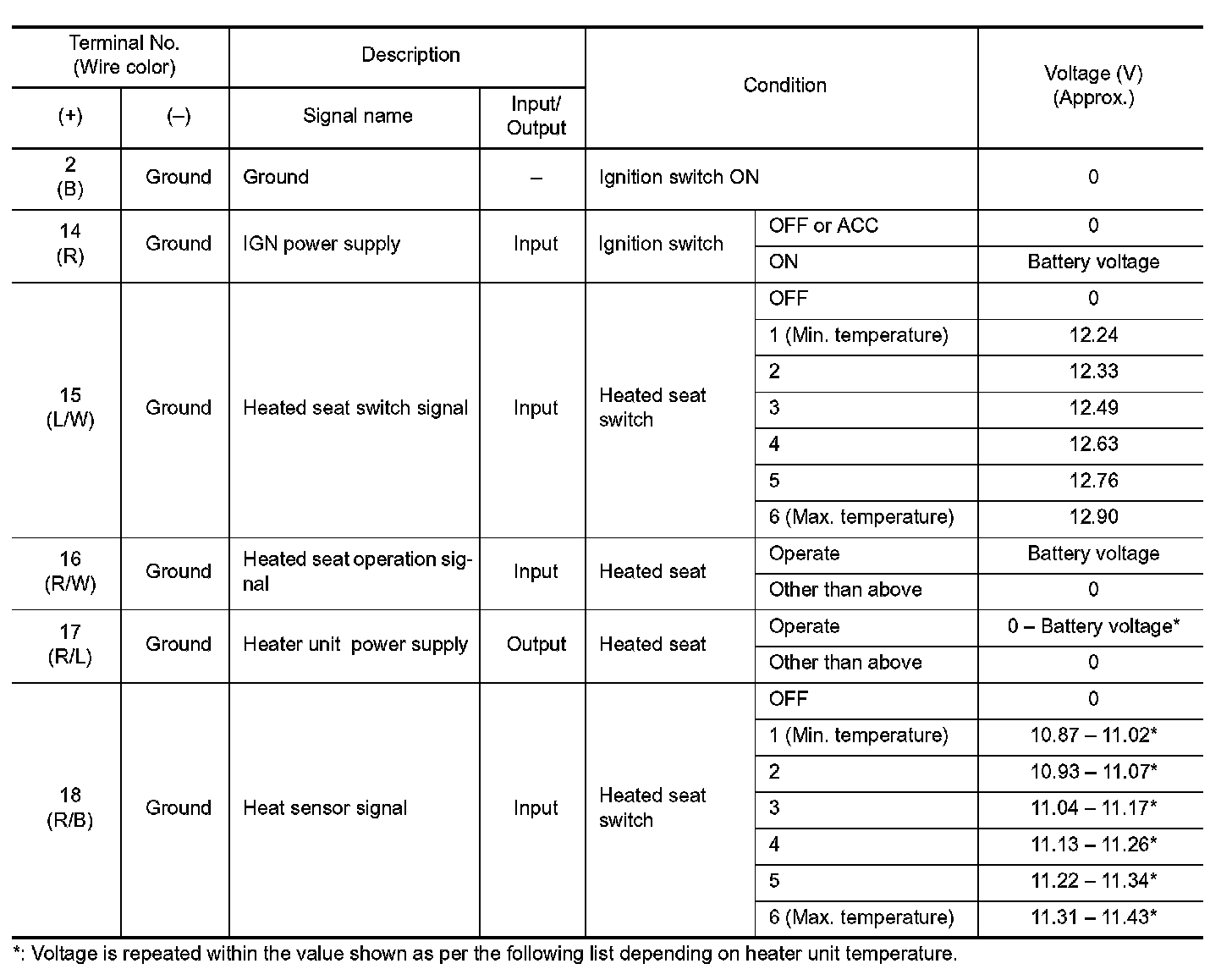

PHYSICAL VALUES
