Component Inspection

METER CONTROL SWITCH SIGNAL CIRCUIT


Description

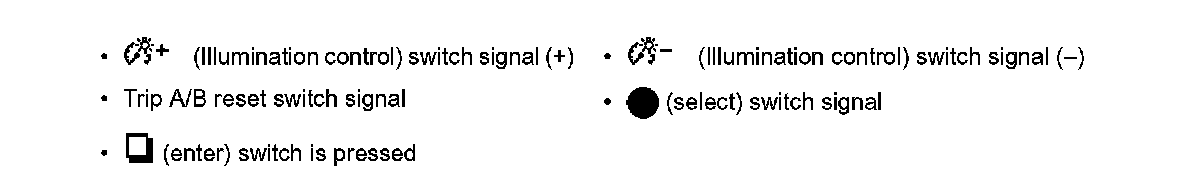

Transmits the following signals to the combination meter.










METER CONTROL SWITCH SIGNAL CIRCUIT


Component Inspection

1.CHECK METER CONTROL SWITCH UNIT
1. Turn the ignition switch OFF.
2. Disconnect the meter control switch connector.

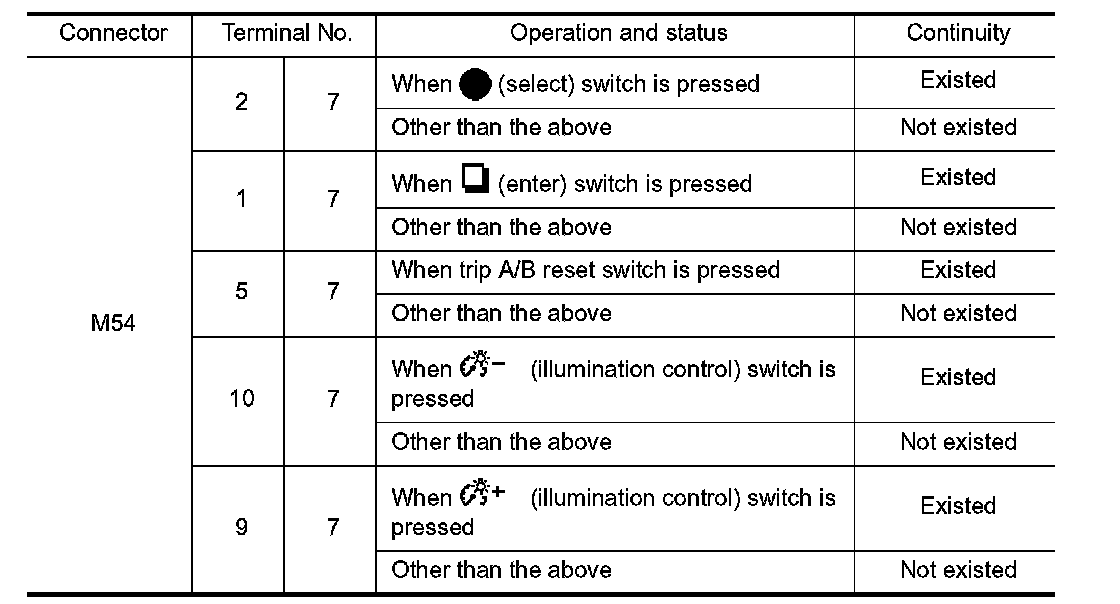

3. Check continuity of the meter control switch.





Is the inspection result OK?
YES - INSPECTION END
NO - Replace the meter control switch.
