Compressor System Symptoms

COMPRESSOR SYSTEM SYMPTOMS


Symptom Table

Follow the next table and perform trouble diagnosis if there is a compressor unit malfunction (internal noise, insufficient cooling).

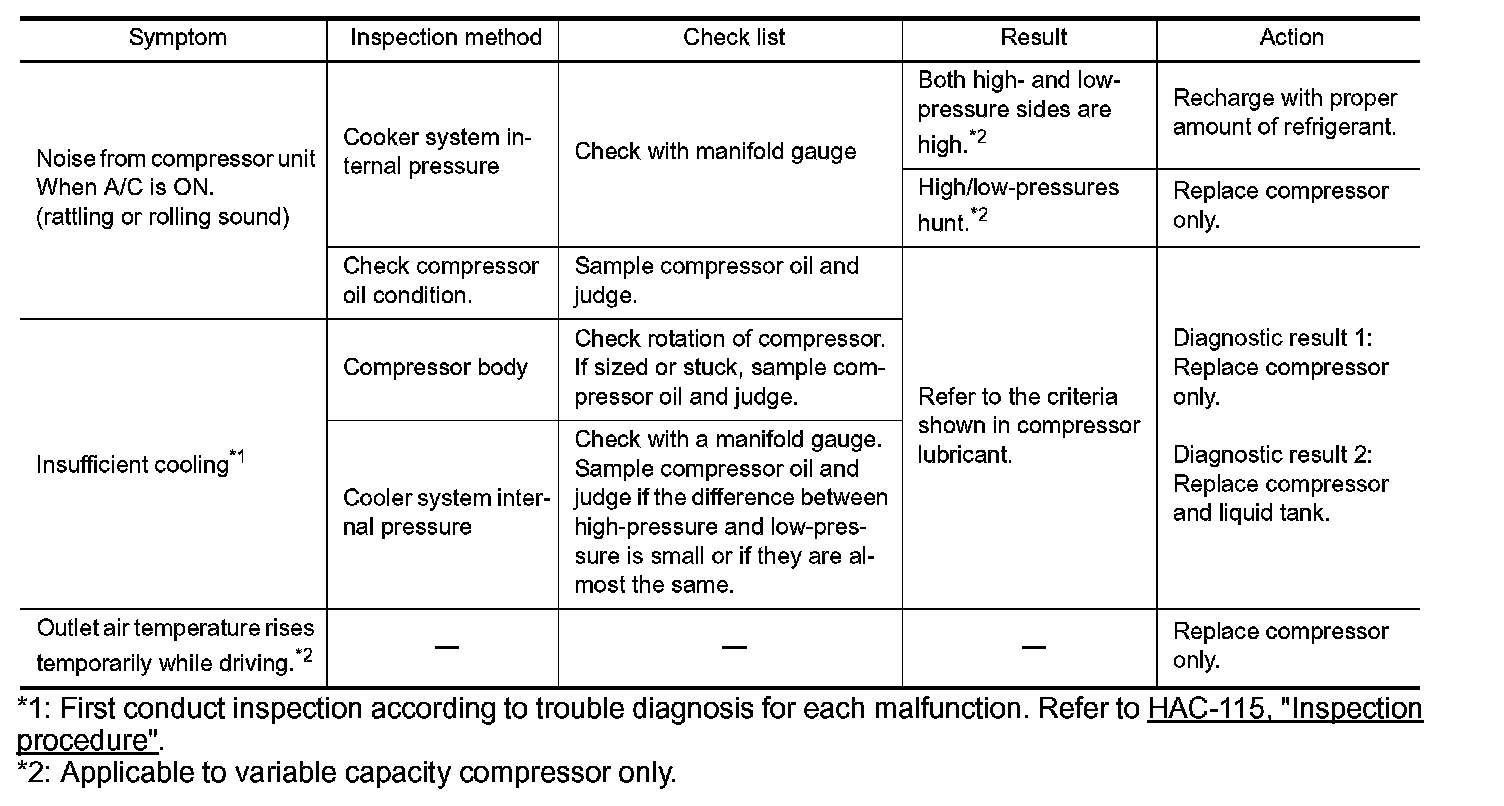

Symptom Table:

*1: First conduct inspection according to trouble diagnosis for each malfunction. Refer to Insufficient Cooling.
*2: Applicable to variable capacity compressor only.
