Automatic Air Conditioner /W L and R Control System
AUTOMATIC AIR CONDITIONER SYSTEM
WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : Component Part Location

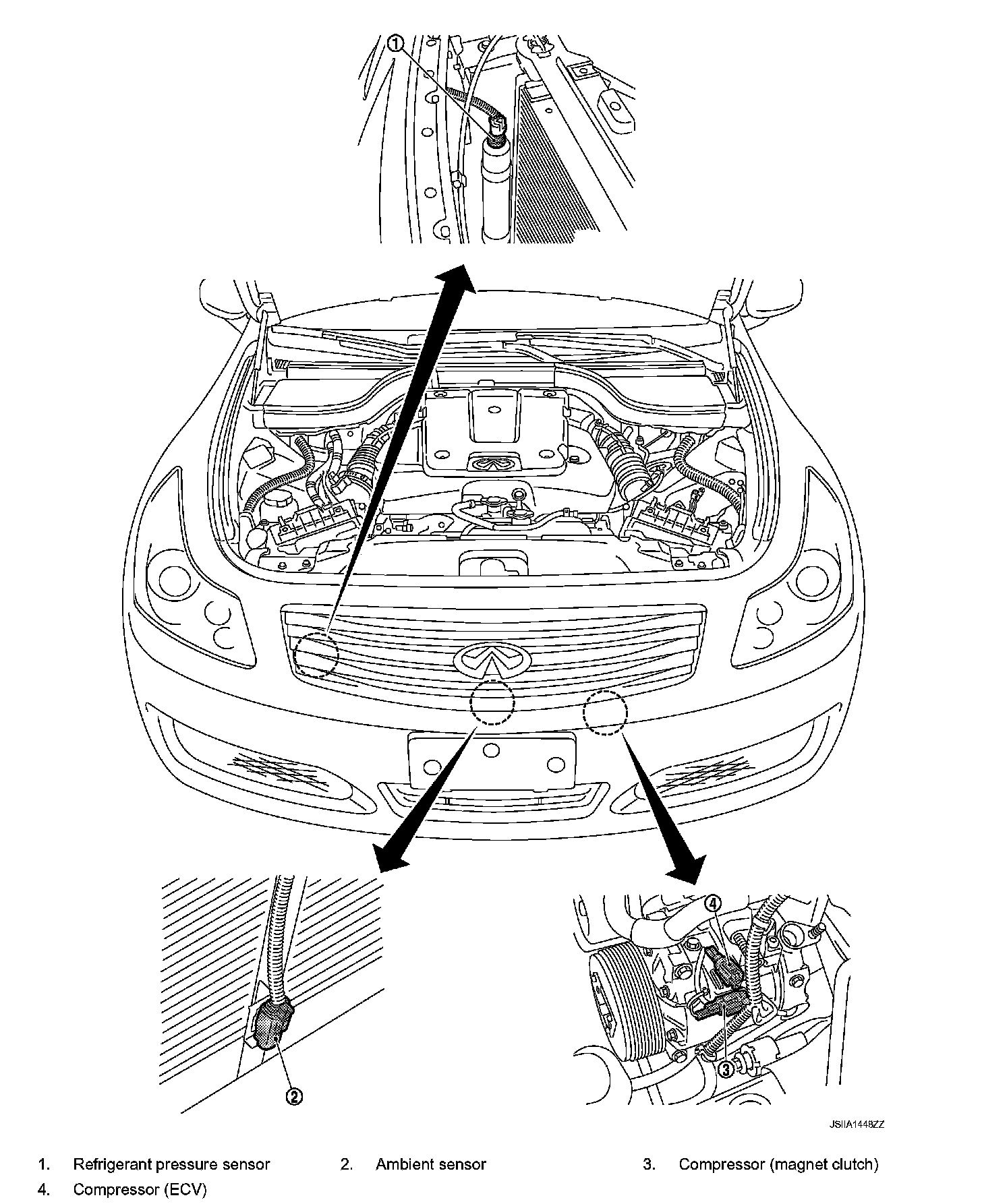

ENGINE COMPARTMENT

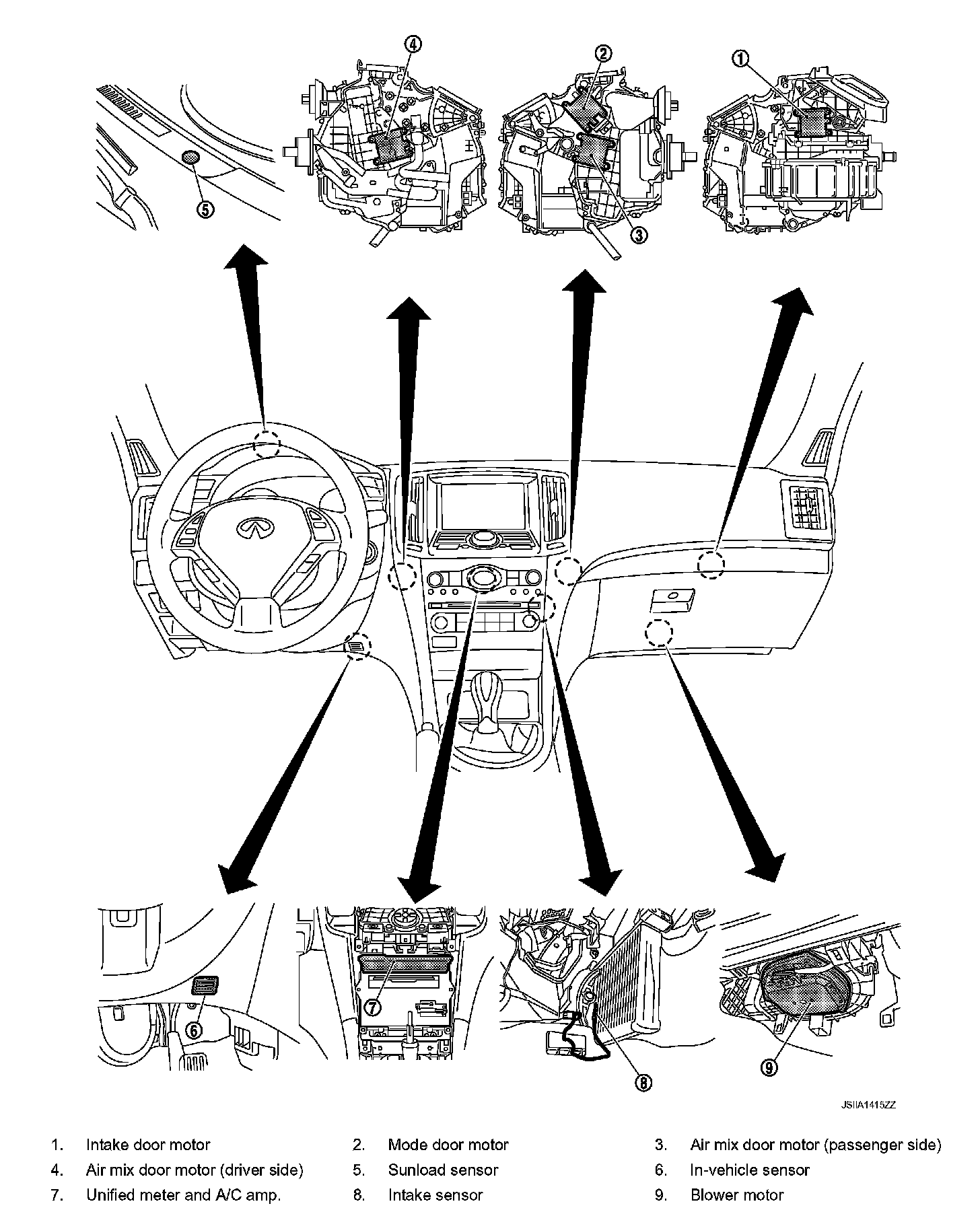

PASSENGER COMPARTMENT
AUTOMATIC AIR CONDITIONER SYSTEM
WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : Component Part Location
ENGINE COMPARTMENT
PASSENGER COMPARTMENT
