System Diagram

AUTOMATIC AIR CONDITIONER SYSTEM


WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON- TROL SYSTEM WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Diagram


CONTROL SYSTEM

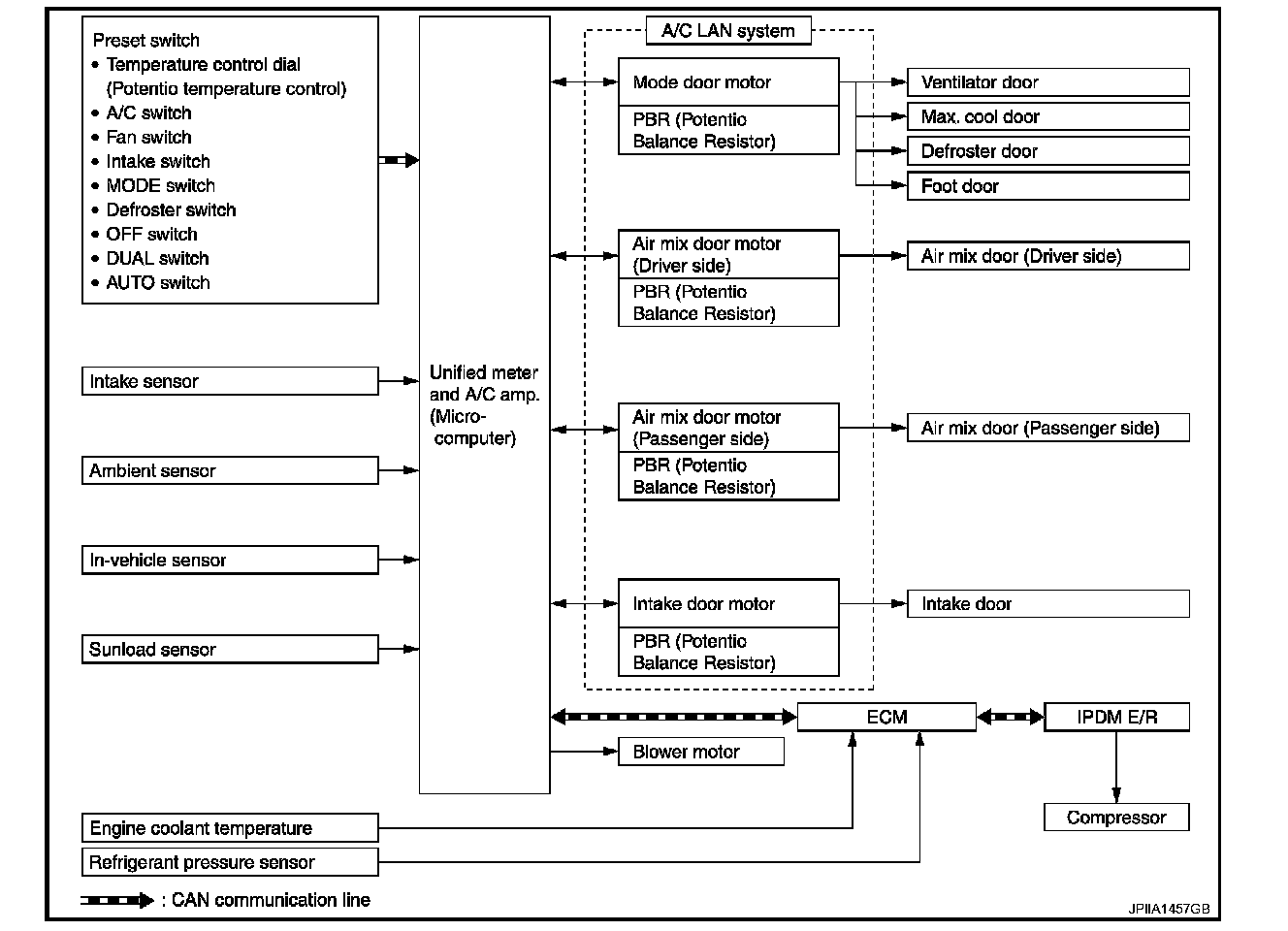

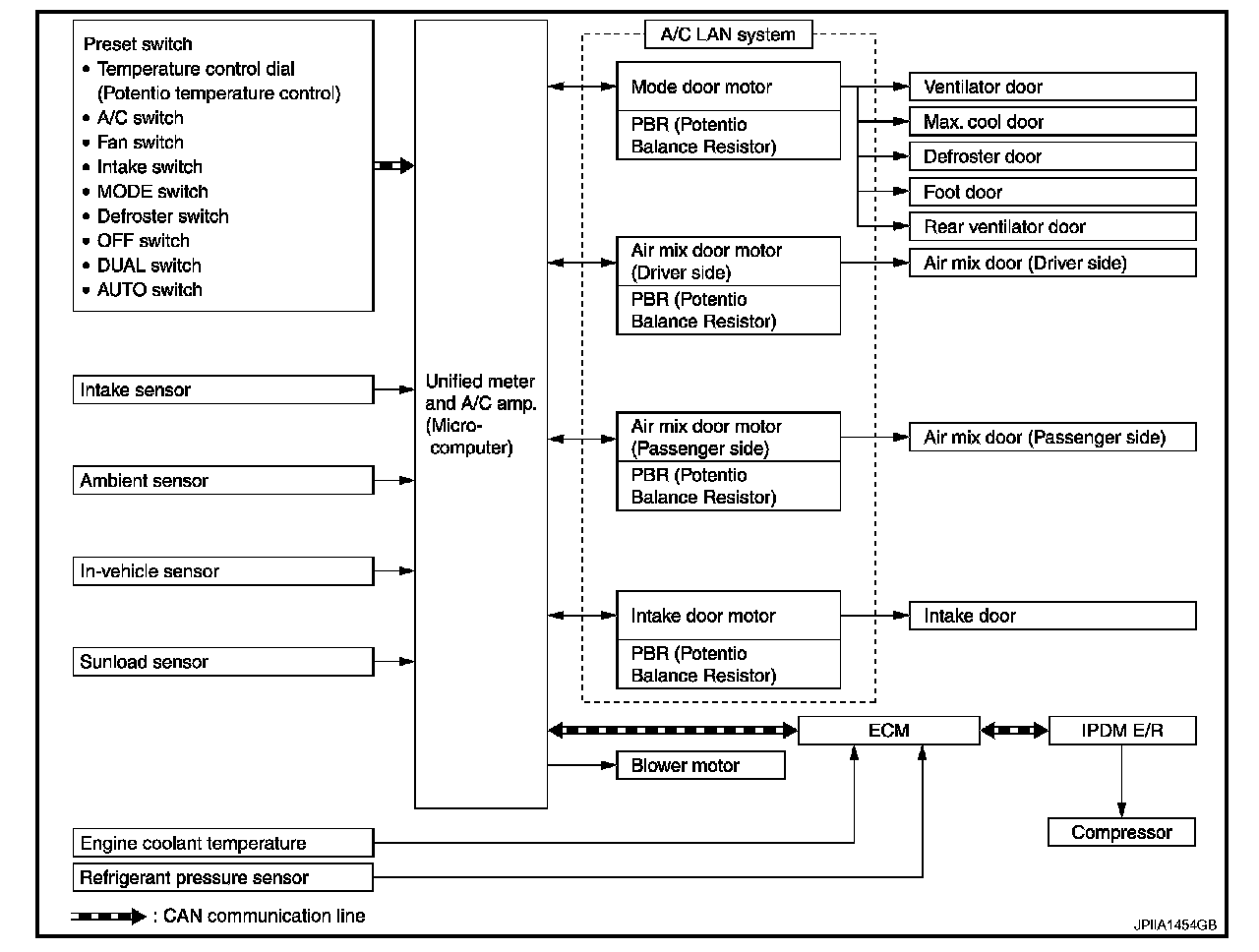

The control system consists of input sensors, switches, unified meter and A/C AMP. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:
Without rear ventilation With rear ventilation
