Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2009
>>
G37 Sedan V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
System Diagram
>>
With 4WAS
>>
Front Control Unit
Front Control Unit
4WAS FRONT CONTROL UNIT

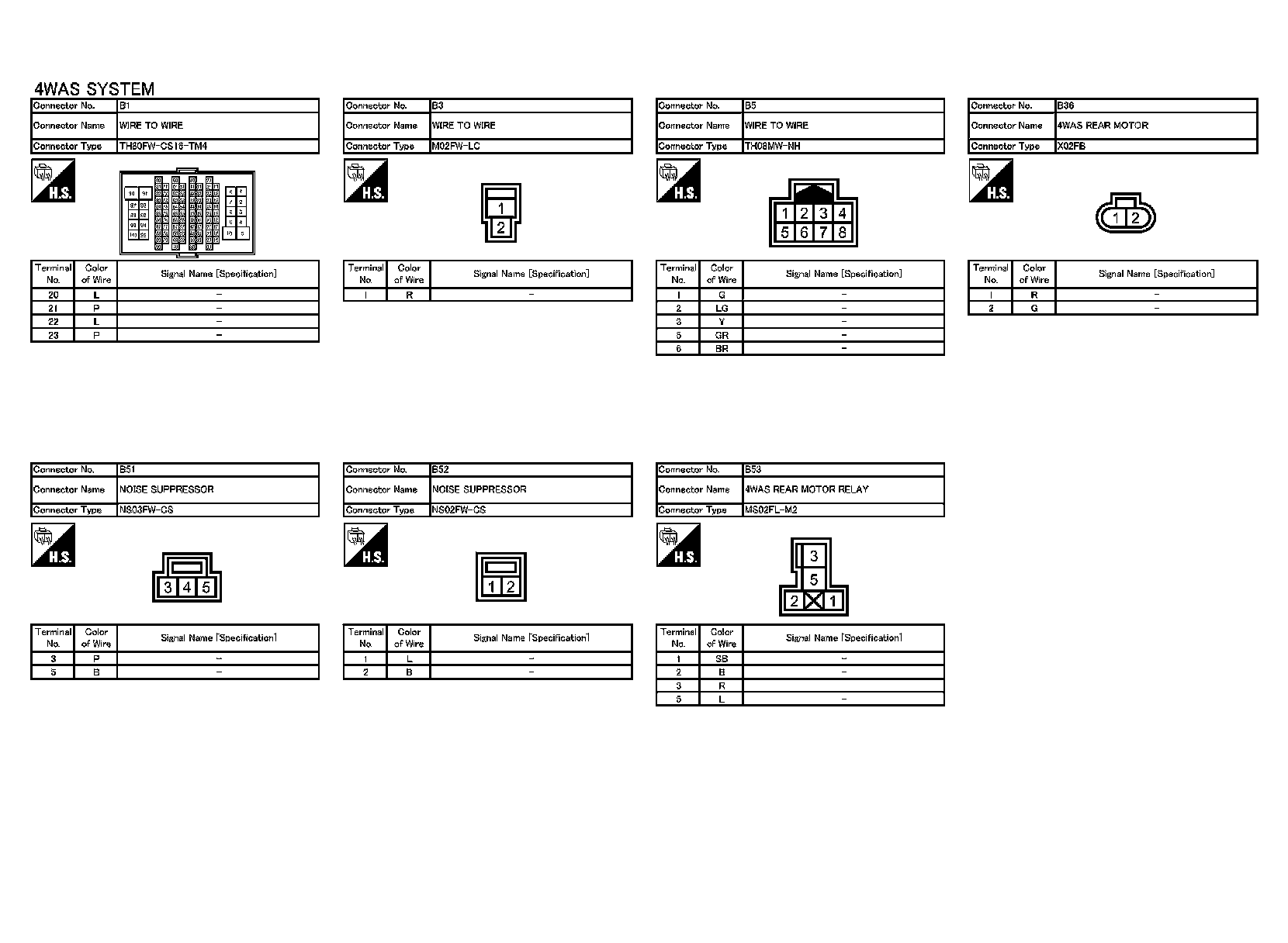

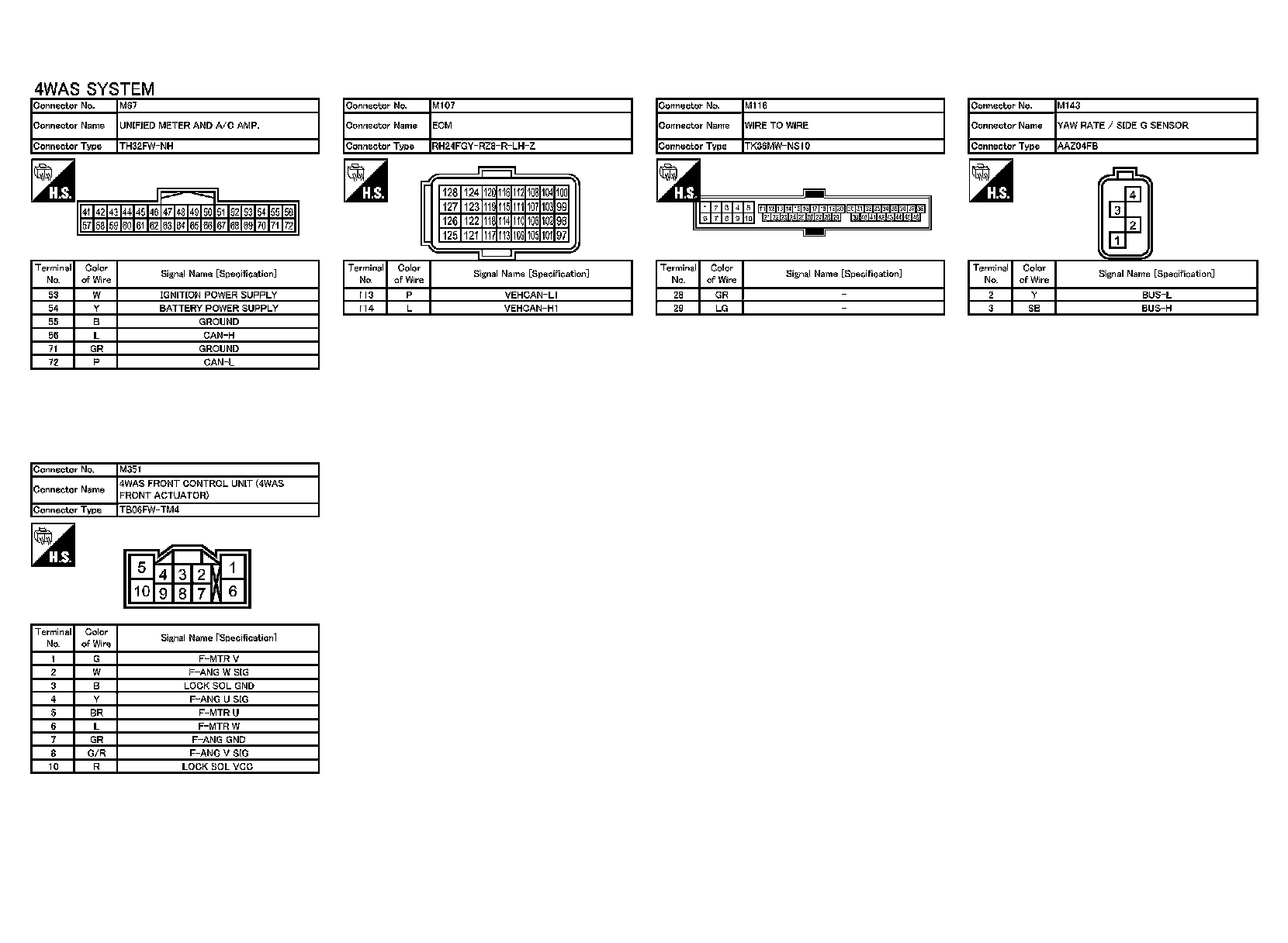

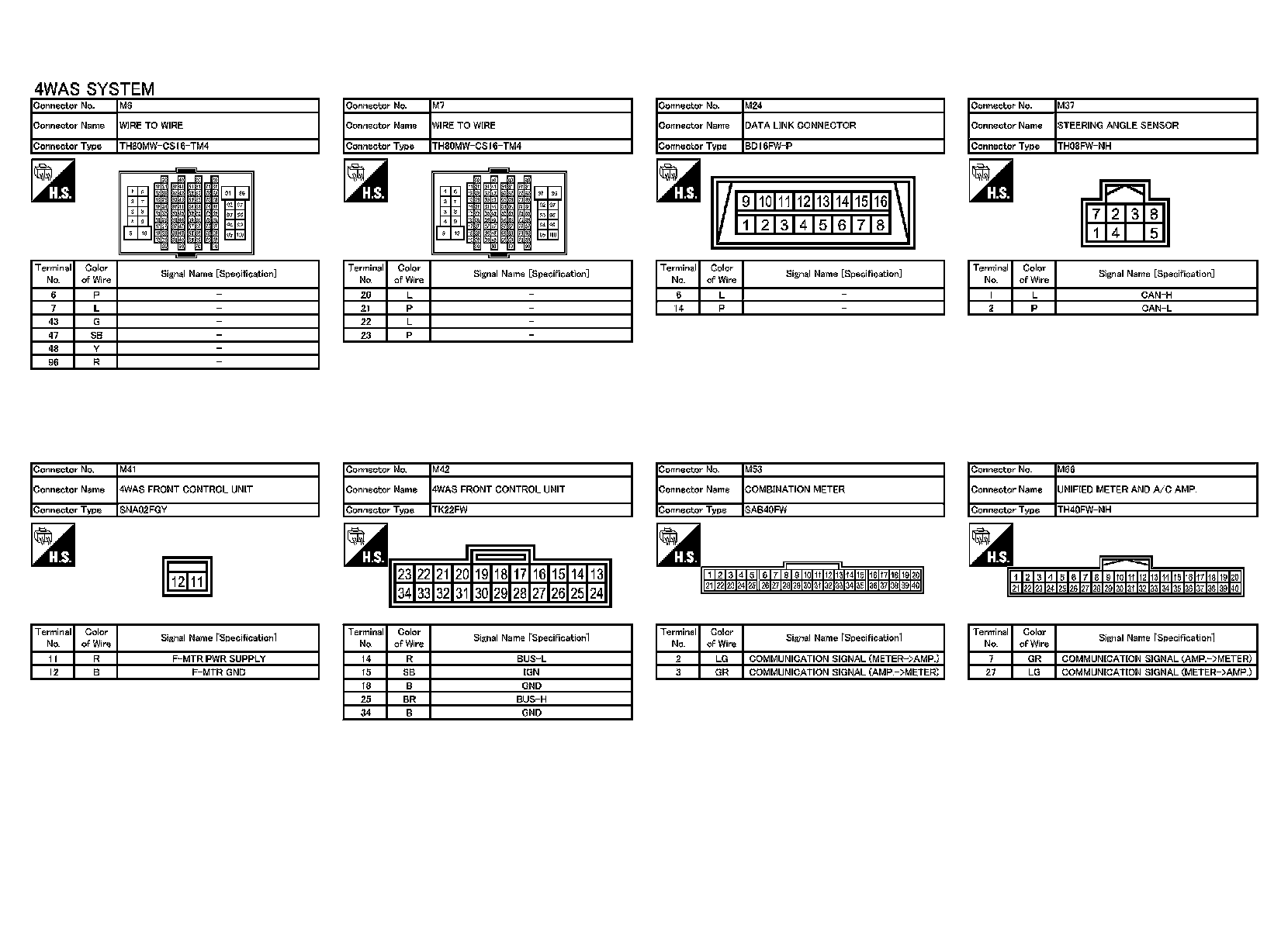

Wiring Diagram - 4WAS SYSTEM -
