Seats
>>
Lumbar Support System
Lumbar Support System
LUMBAR SUPPORT

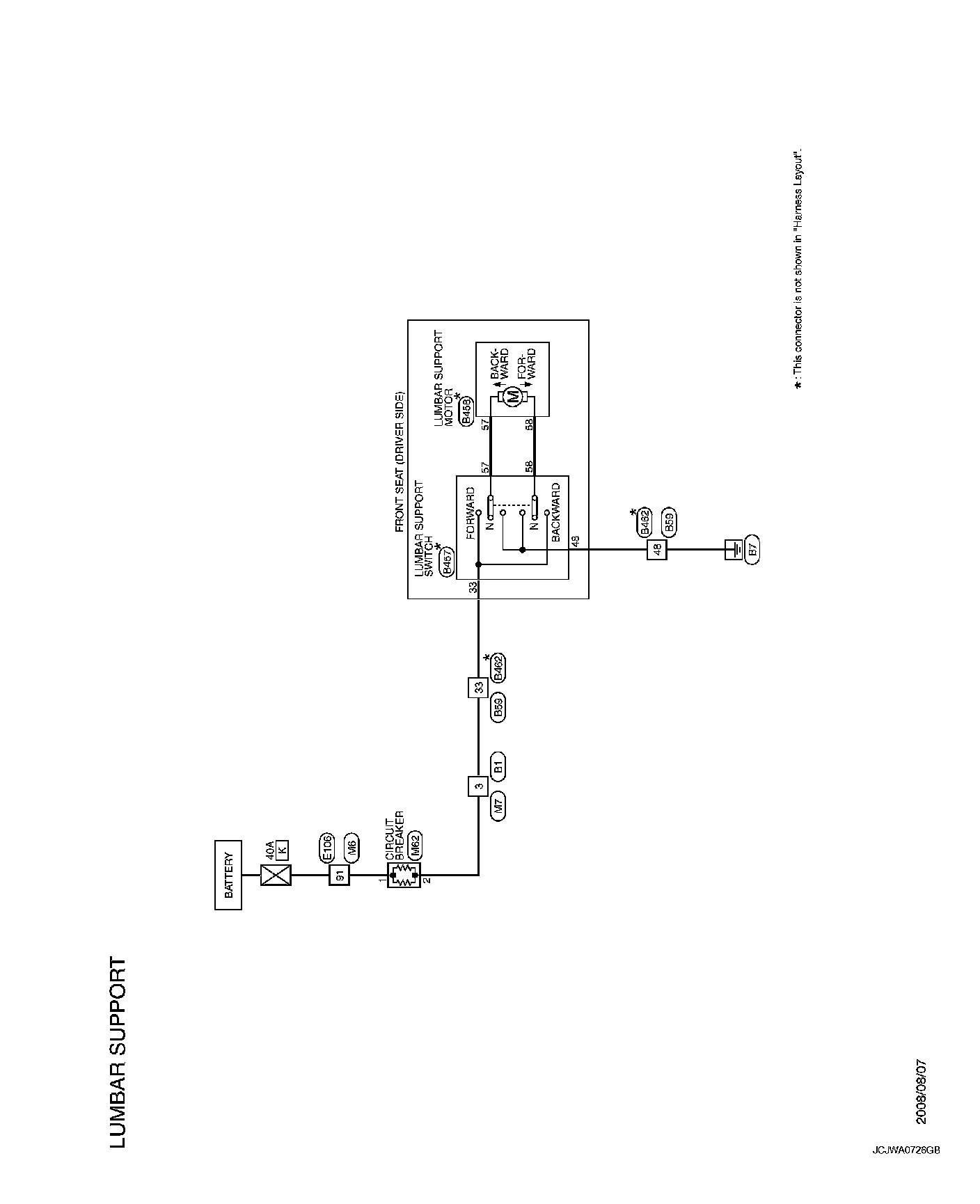

Wiring Diagram - LUMBAR SUPPORT SYSTEM -
