Driver Seat Control Unit
Driver Seat Control Unit
DRIVER SEAT CONTROL UNIT

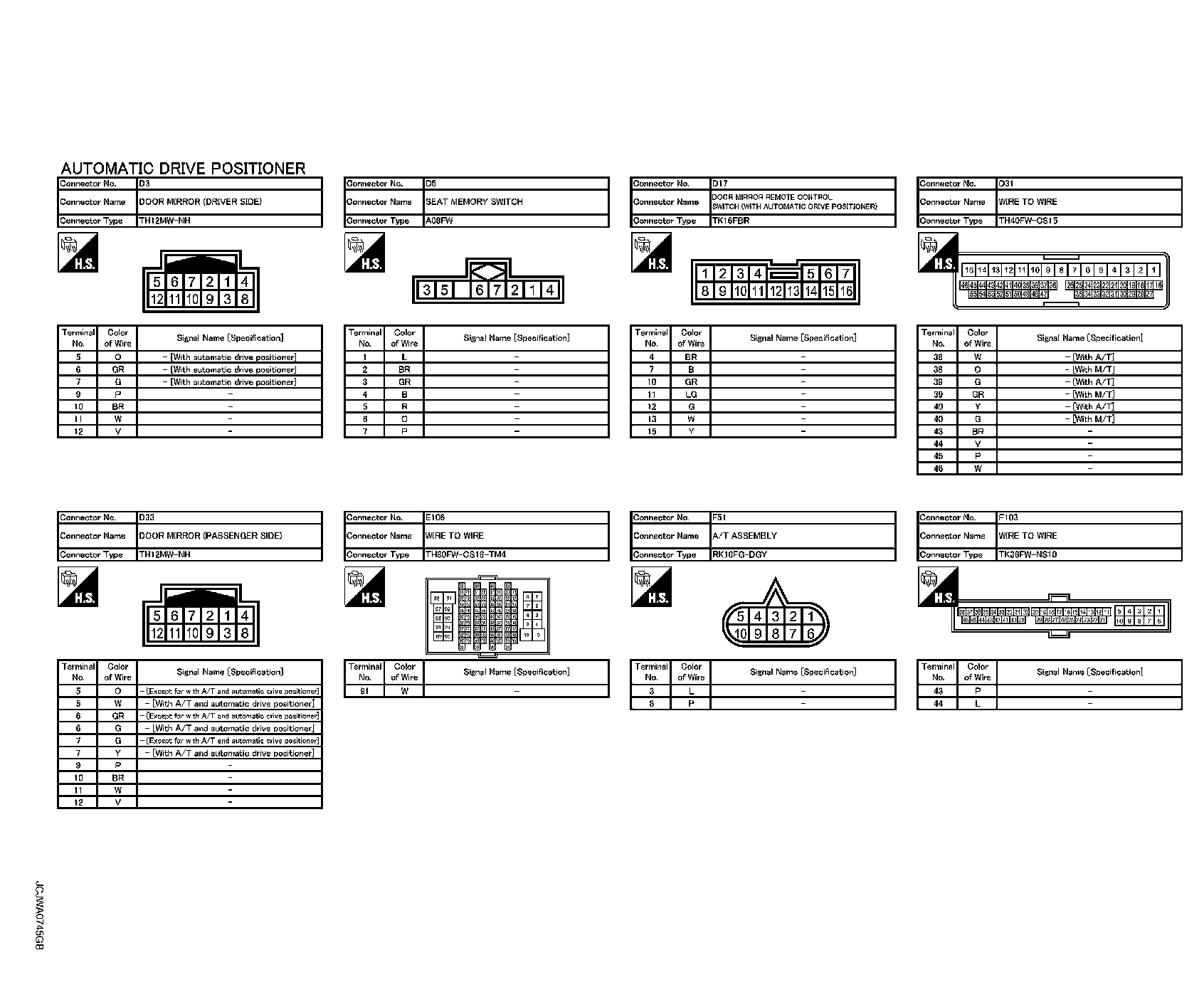

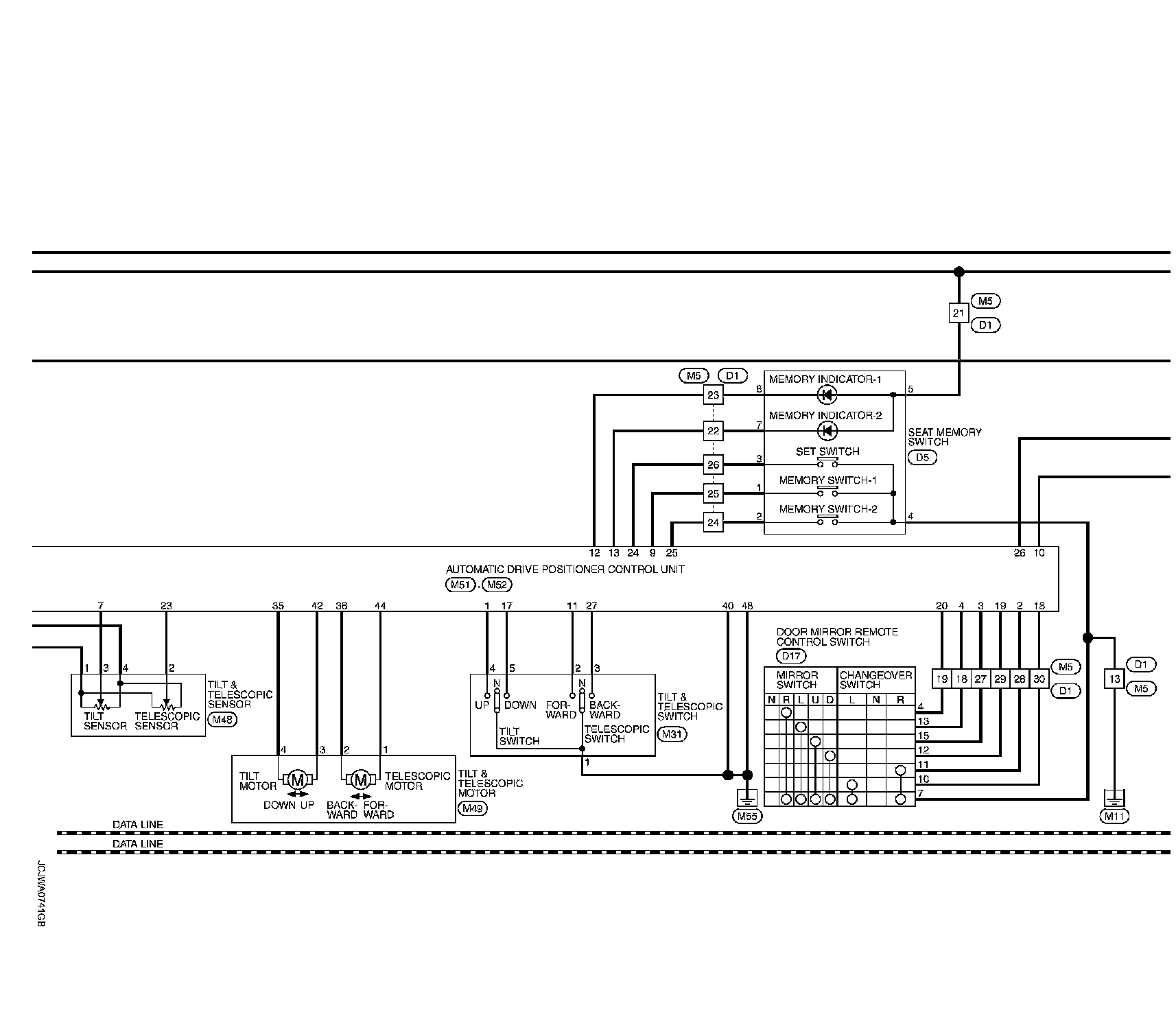

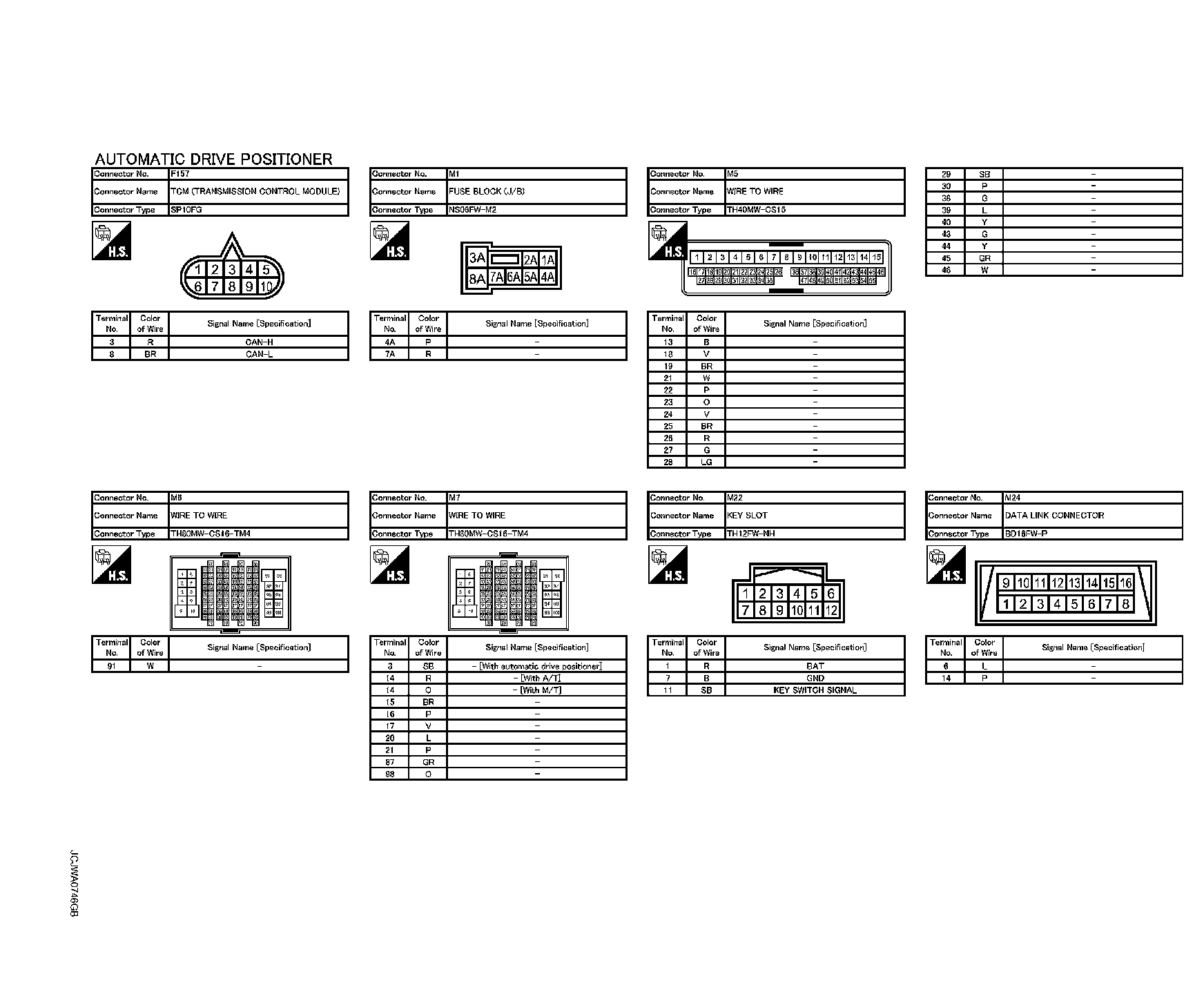

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -
