Pinout Values and Diagnostic Parameters
ICC SENSOR INTEGRATED UNIT
Reference Value

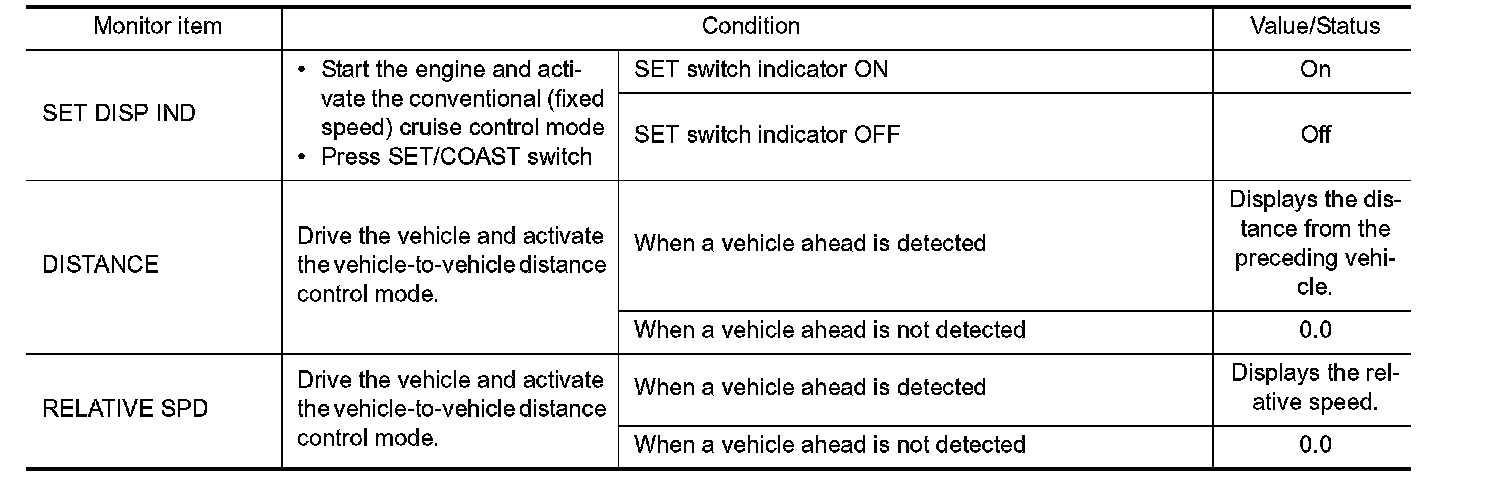

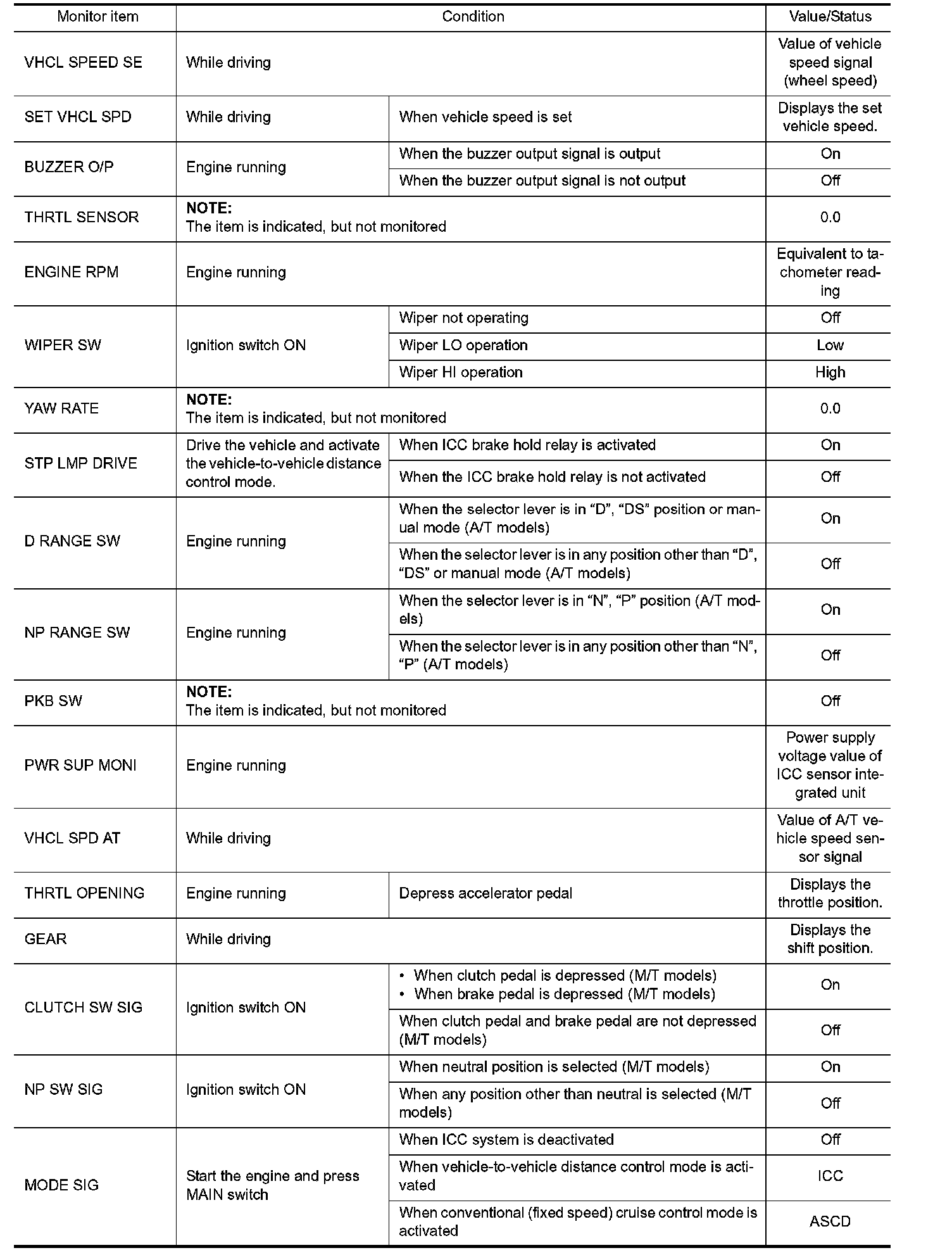

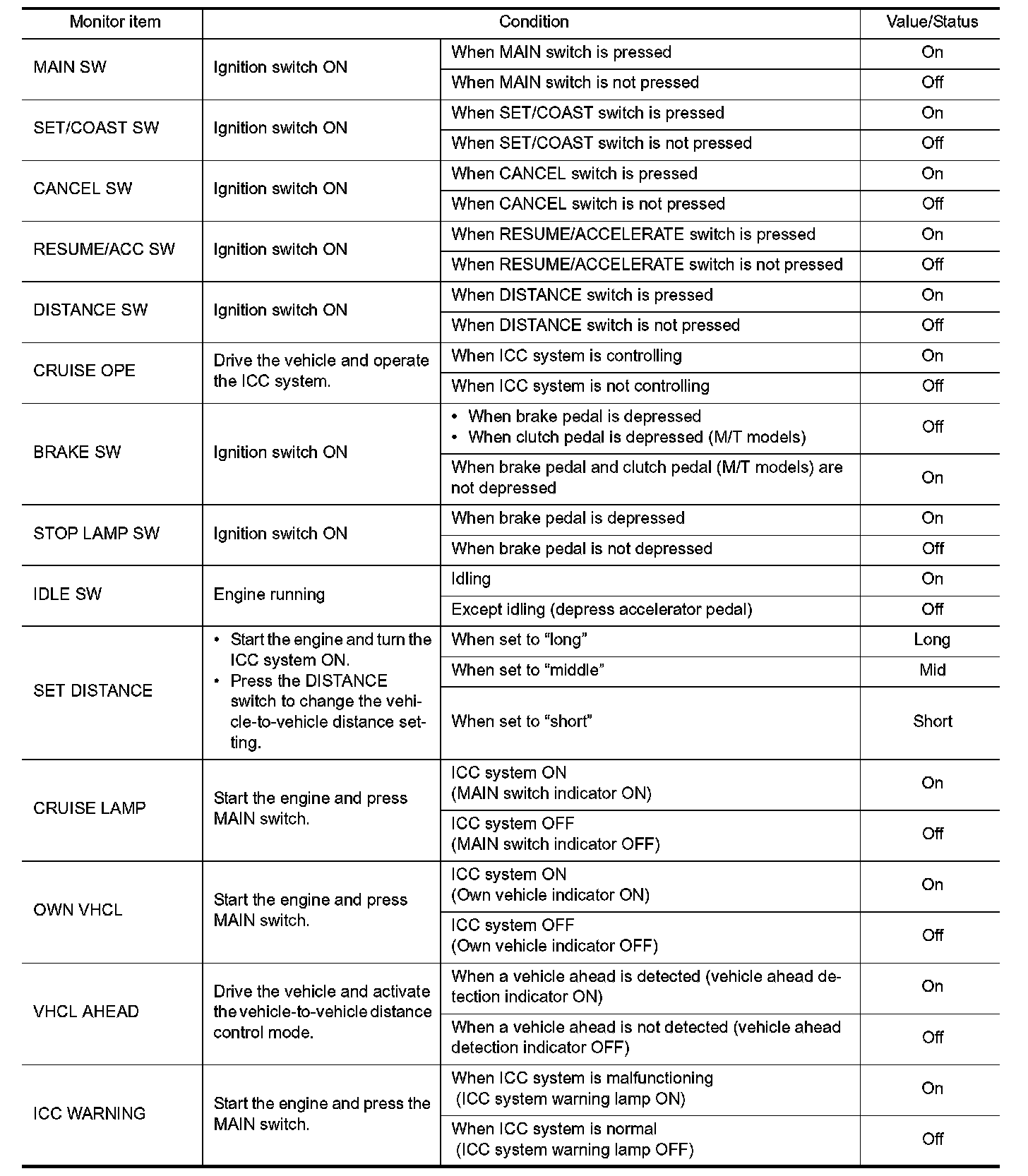

VALUES ON THE DIAGNOSIS TOOL

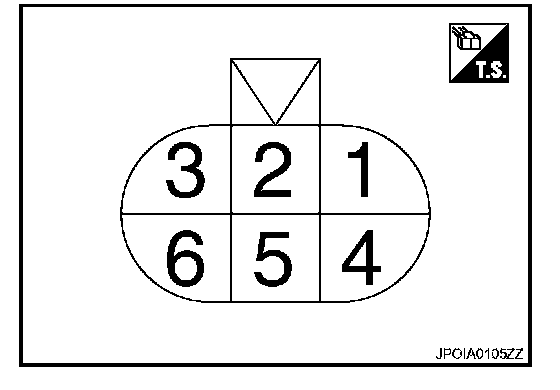

TERMINAL LAYOUT

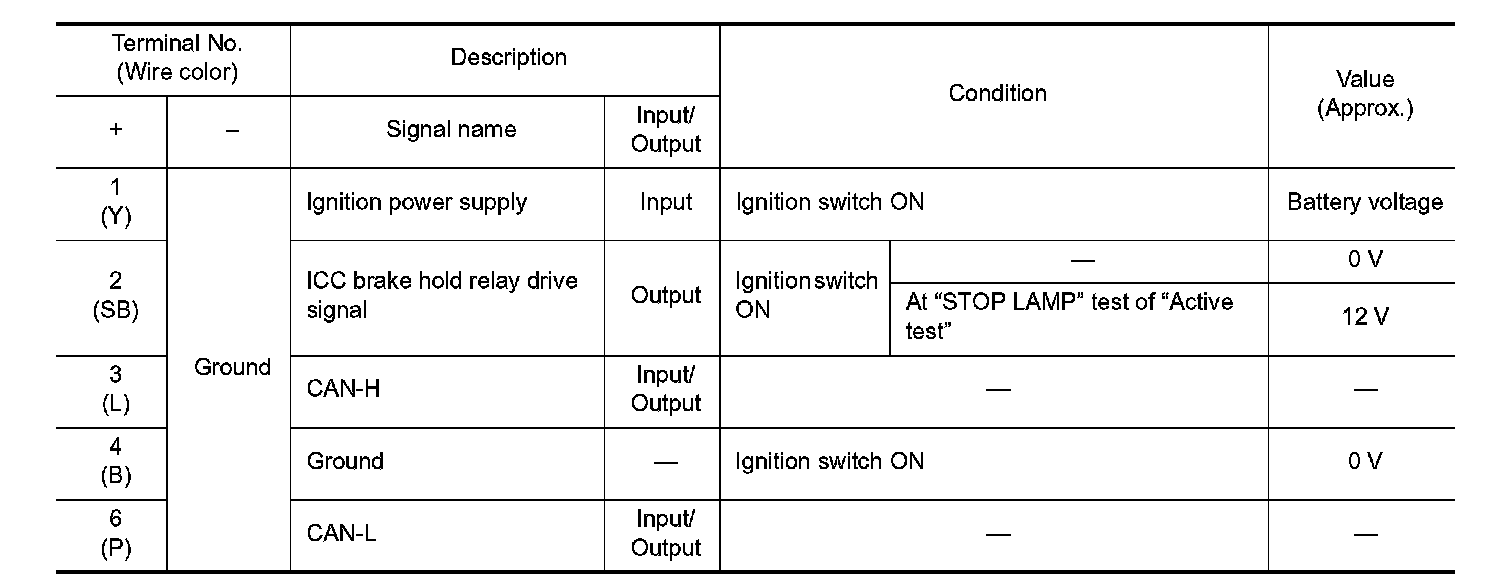

PHYSICAL VALUES
