Component Function Check

DOOR MIRROR MOTOR


Component Function Check

1.CHECK DOOR MIRROR MOTOR FUNCTION
1. Turn ignition switch ON.

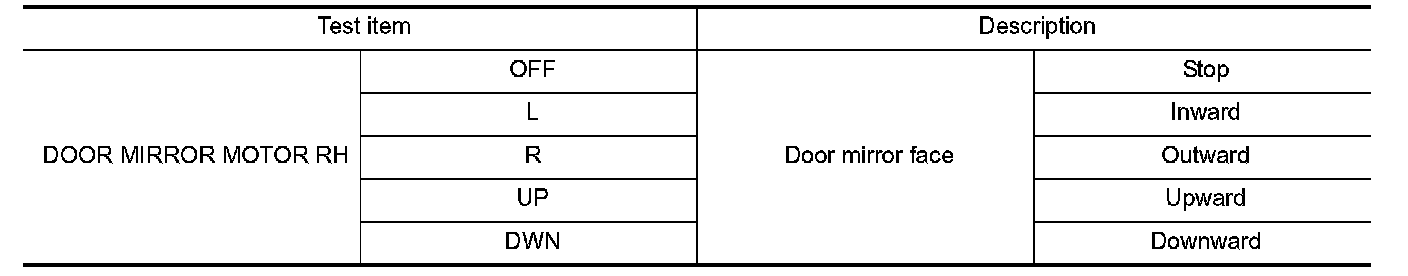

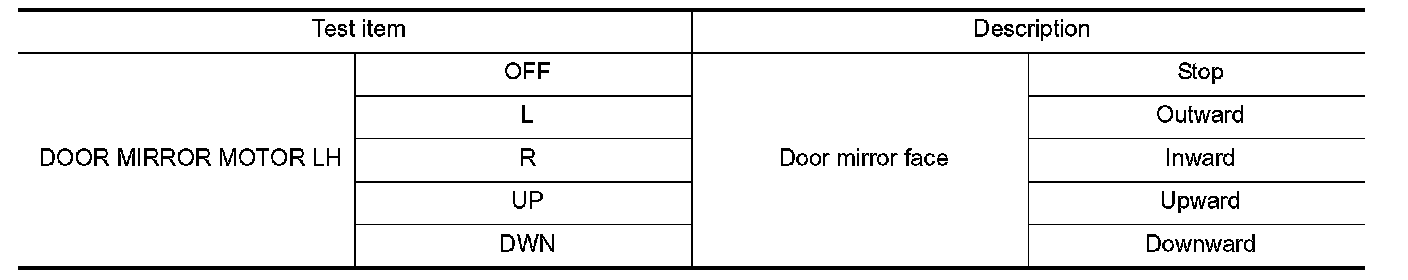

2. Select "DOOR MIRROR MOTOR" in "Active test" mode using CONSULT-III.
3. Check the door mirror motor operation.











Is the operation of relevant parts normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Refer to Diagnosis Procedure.
