Removal and Installation

DOOR MIRROR REMOTE CONTROL SWITCH


Removal and Installation


REMOVAL
1. Remove the power window main switch finisher (2). Refer to Front and Rear Window Anti-Pinch

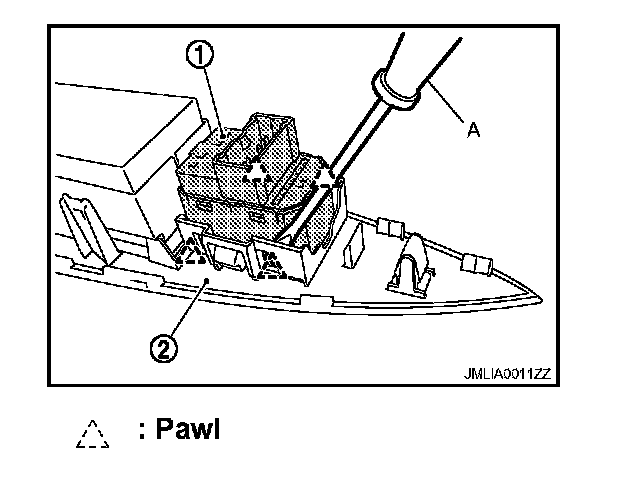

2. Remove door mirror remote control switch (1) from power window main switch finisher (2) using screwdriver (A).

(triangle) :Pawl


INSTALLATION
Install in the reverse order of removal.
