Infiniti
>>
2009
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Child Restraint
>>
Child Seat Tether Attachment
>>
Service and Repair
>>

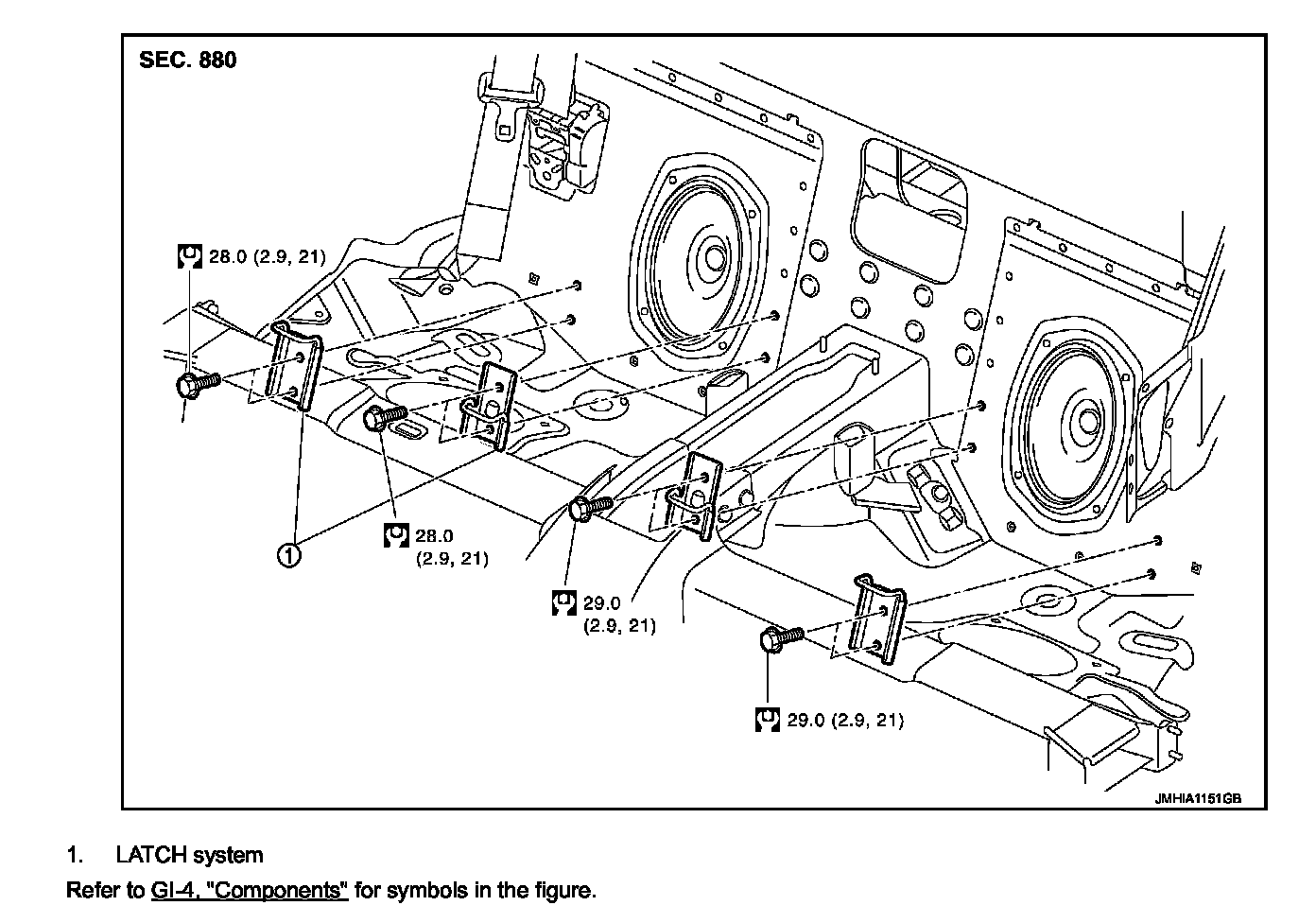

Exploded View
Exploded View
LATCH SYSTEM FOR CHILDREN
Exploded View
