Door-Mounted Curtain Air Bag Module
>>

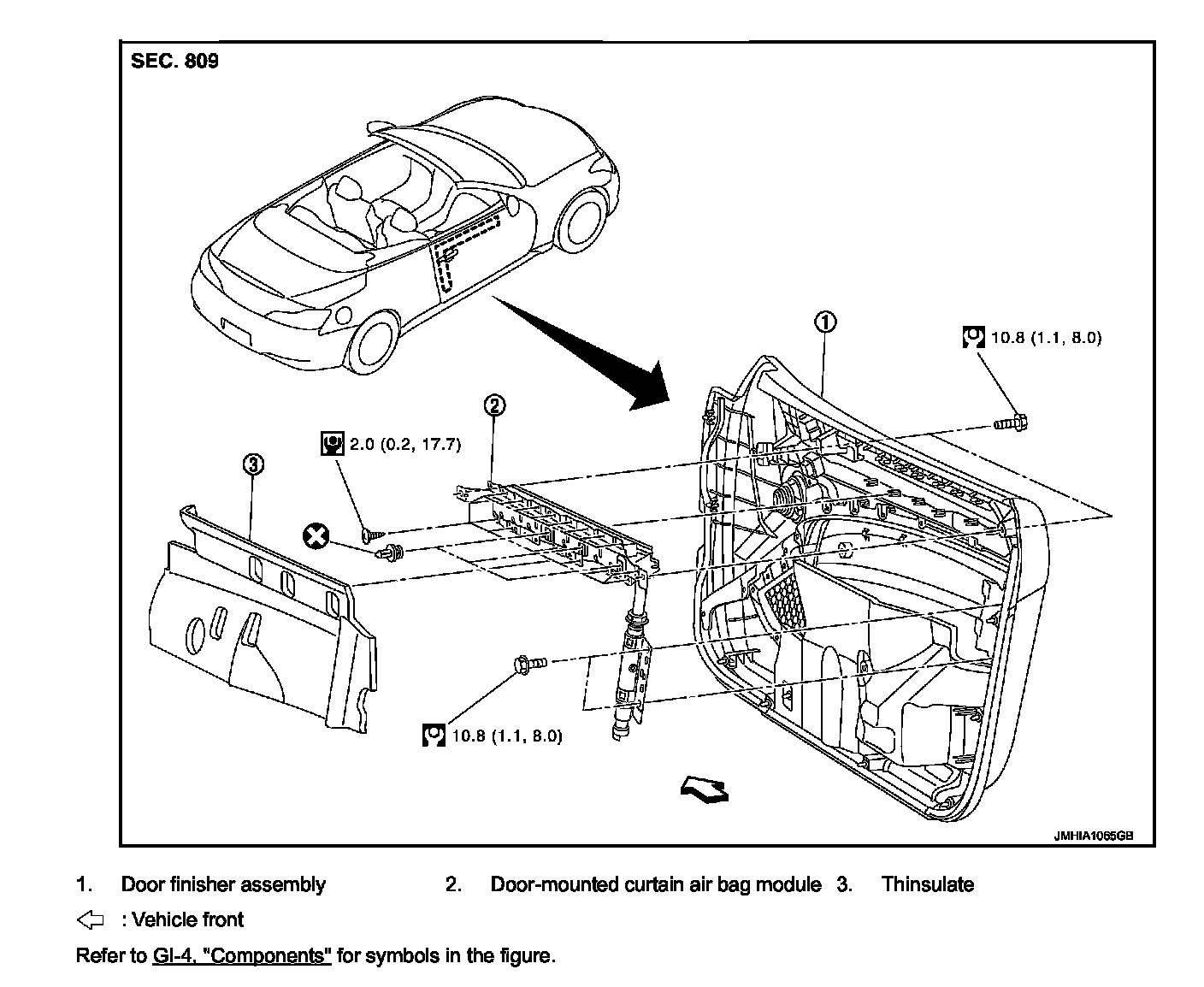

Exploded View
Exploded View
DOOR-MOUNTED CURTAIN AIR BAG MODULE
Exploded View
