Electrical Diagrams





UNIFIED METER AND A/C AMP.

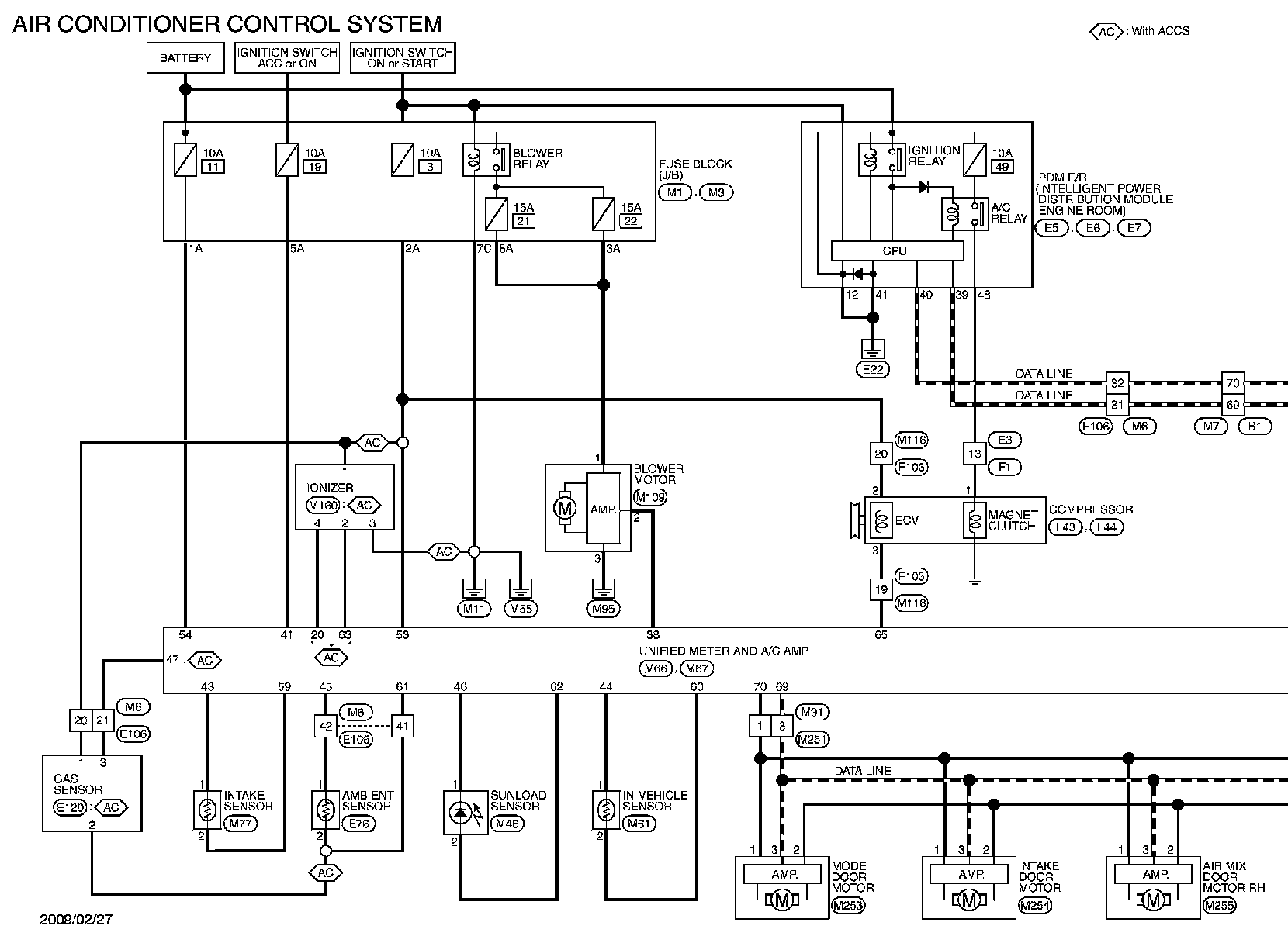

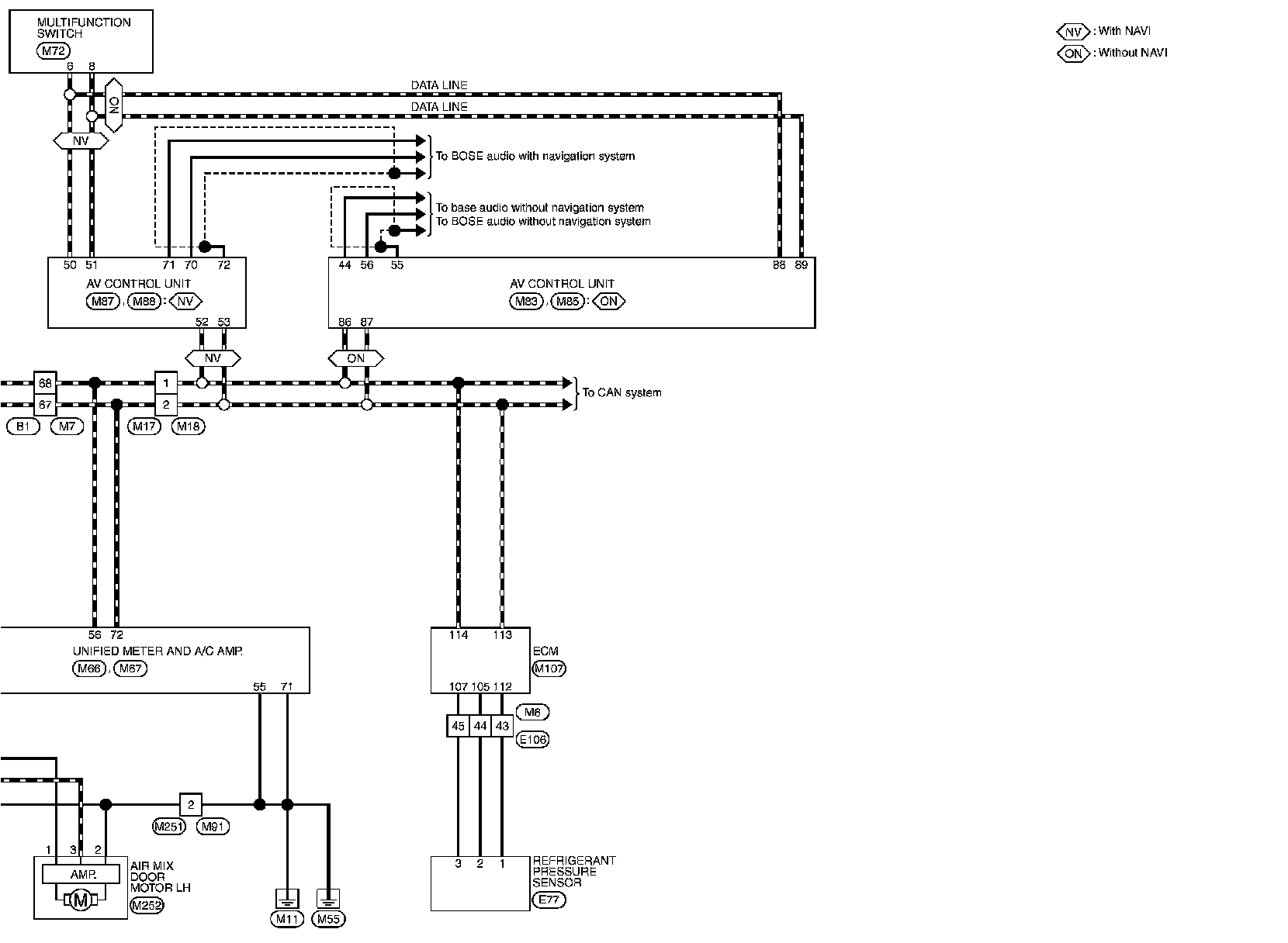

Wiring Diagram - AIR CONDITIONER CONTROL SYSTEM -
