Roof Lock Assembly
>>
Exploded View
Exploded View

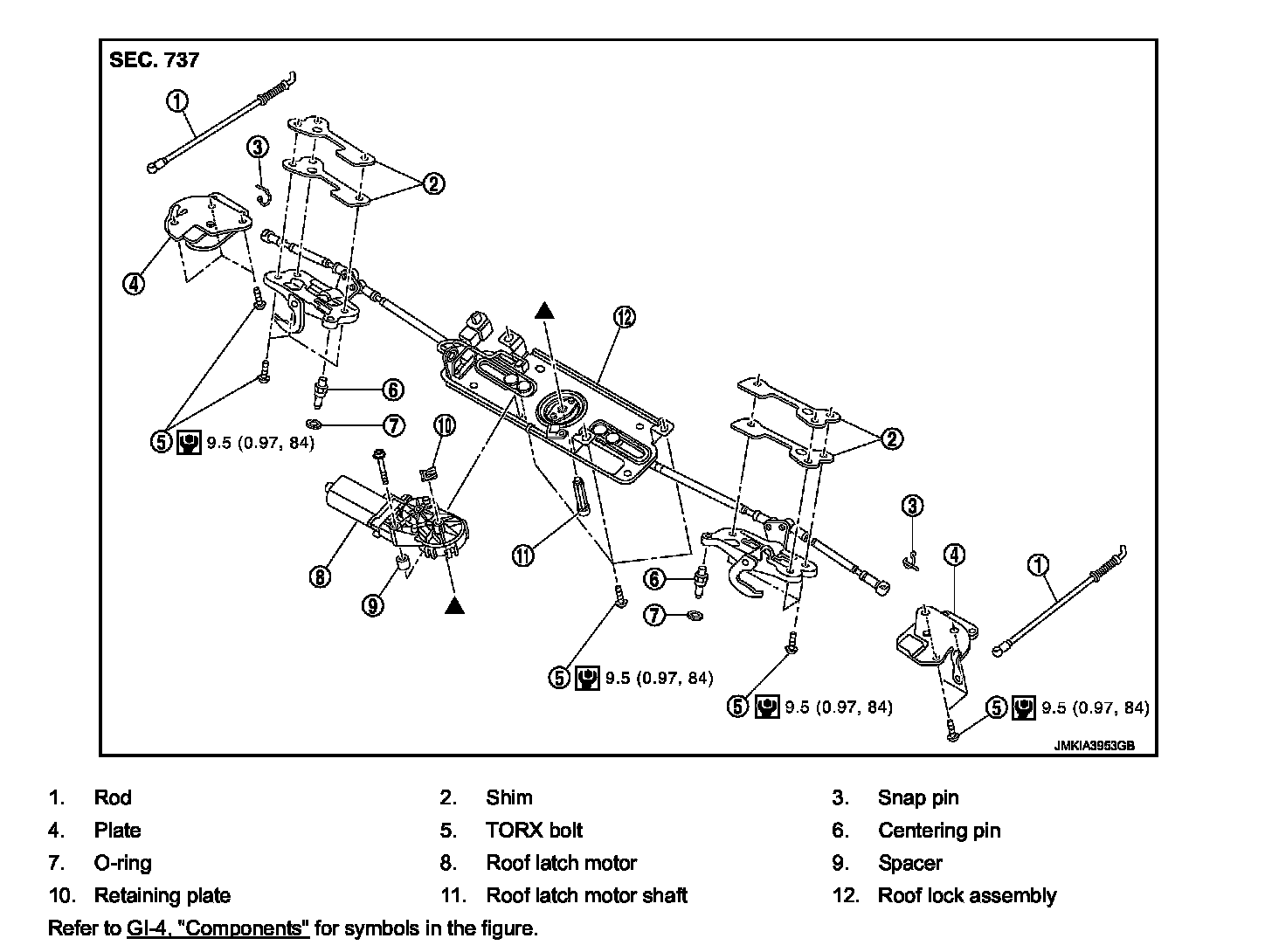

ROOF LOCK ASSEMBLY
ROOF LOCK ASSEMBLY : Exploded View
