Infiniti
>>
2009
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Subframe
>>
Rear Subframe
>>
Service and Repair
>>

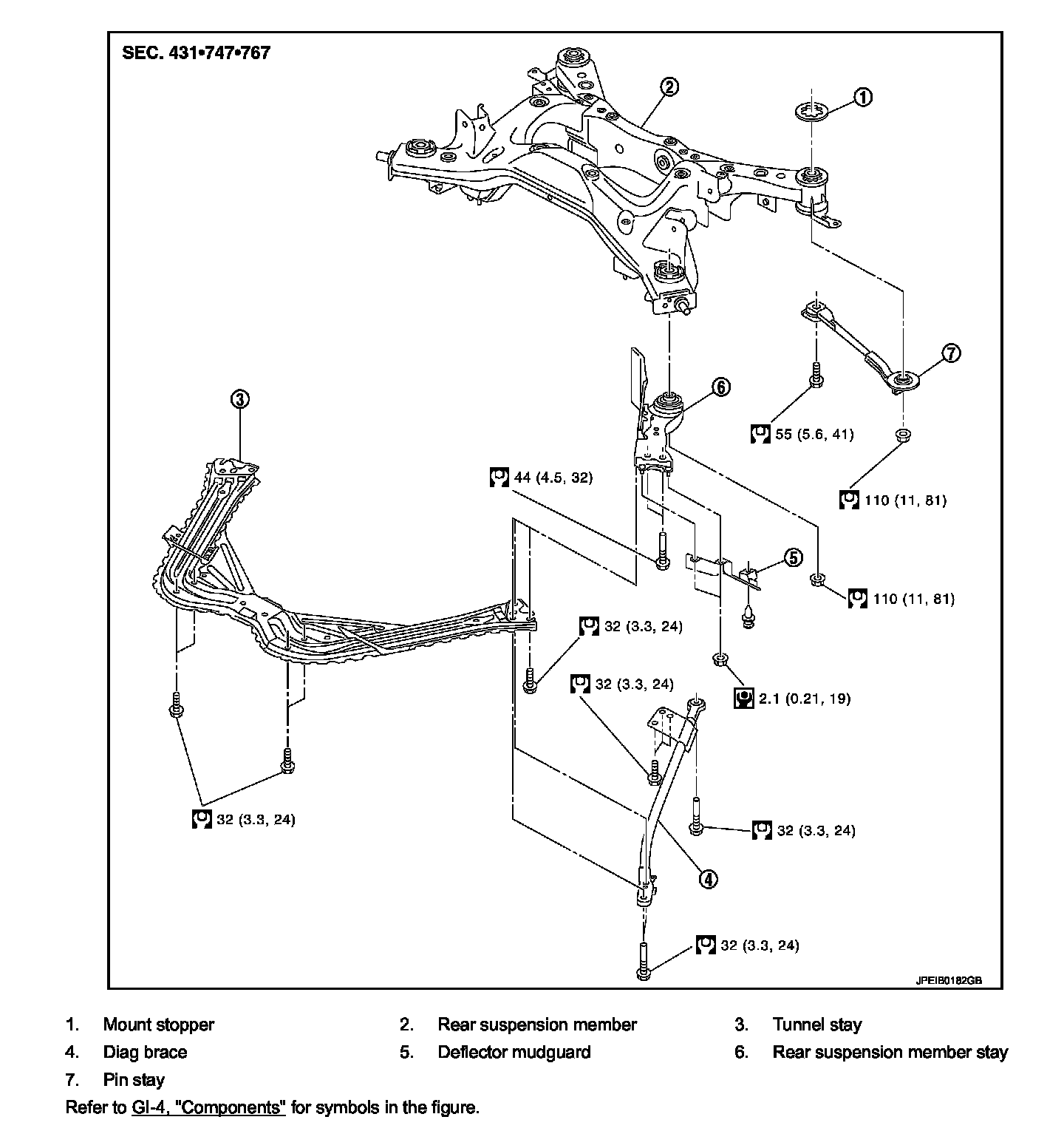

Exploded View
Exploded View
REAR SUSPENSION MEMBER
Exploded View
