AV Control Unit





AV CONTROL UNIT


Reference Value

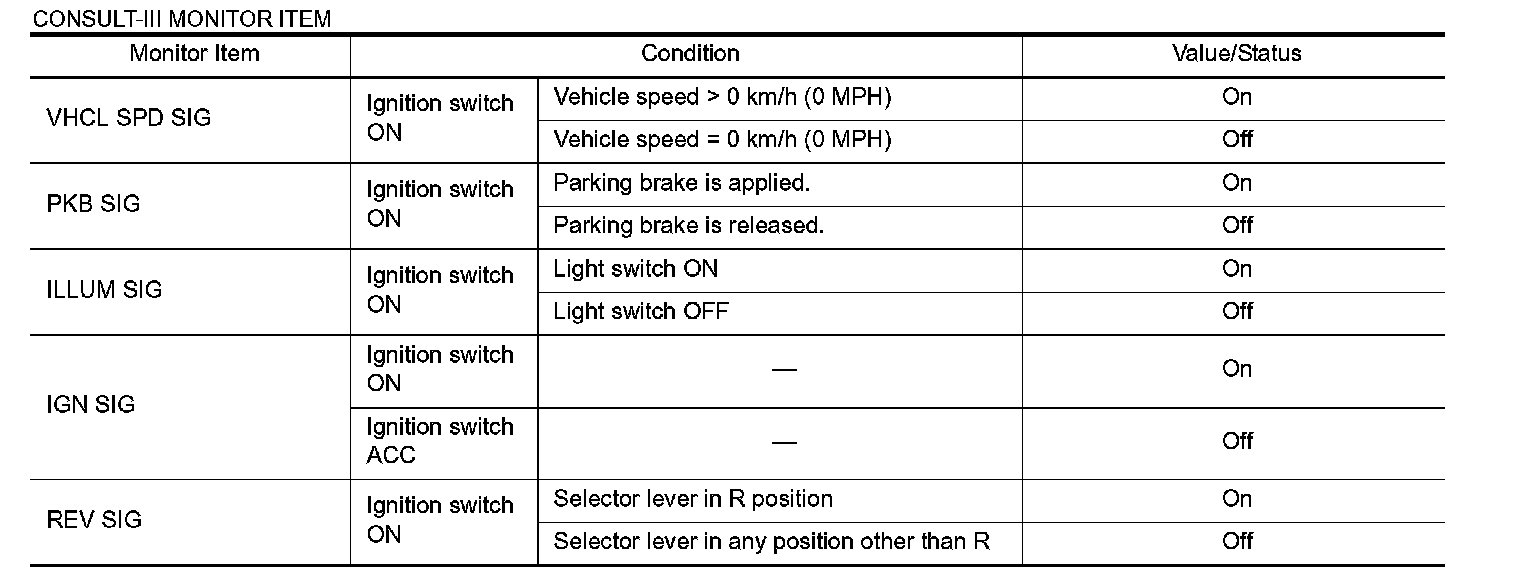

VALUES ON THE DIAGNOSIS TOOL

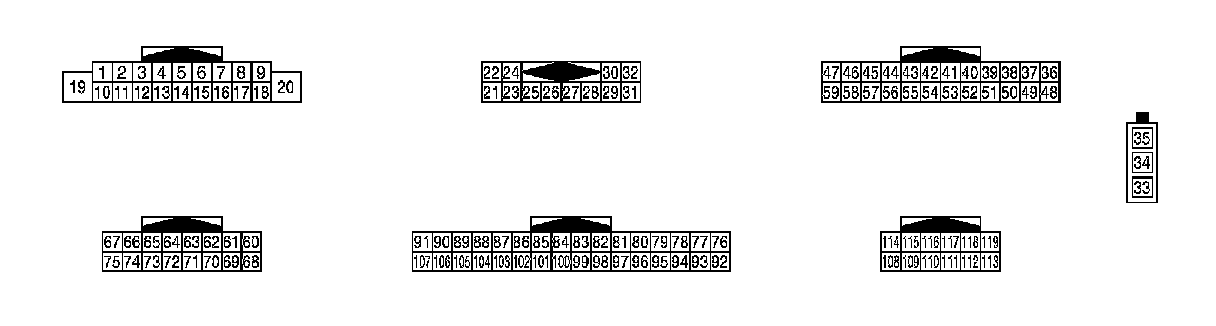

TERMINAL LAYOUT

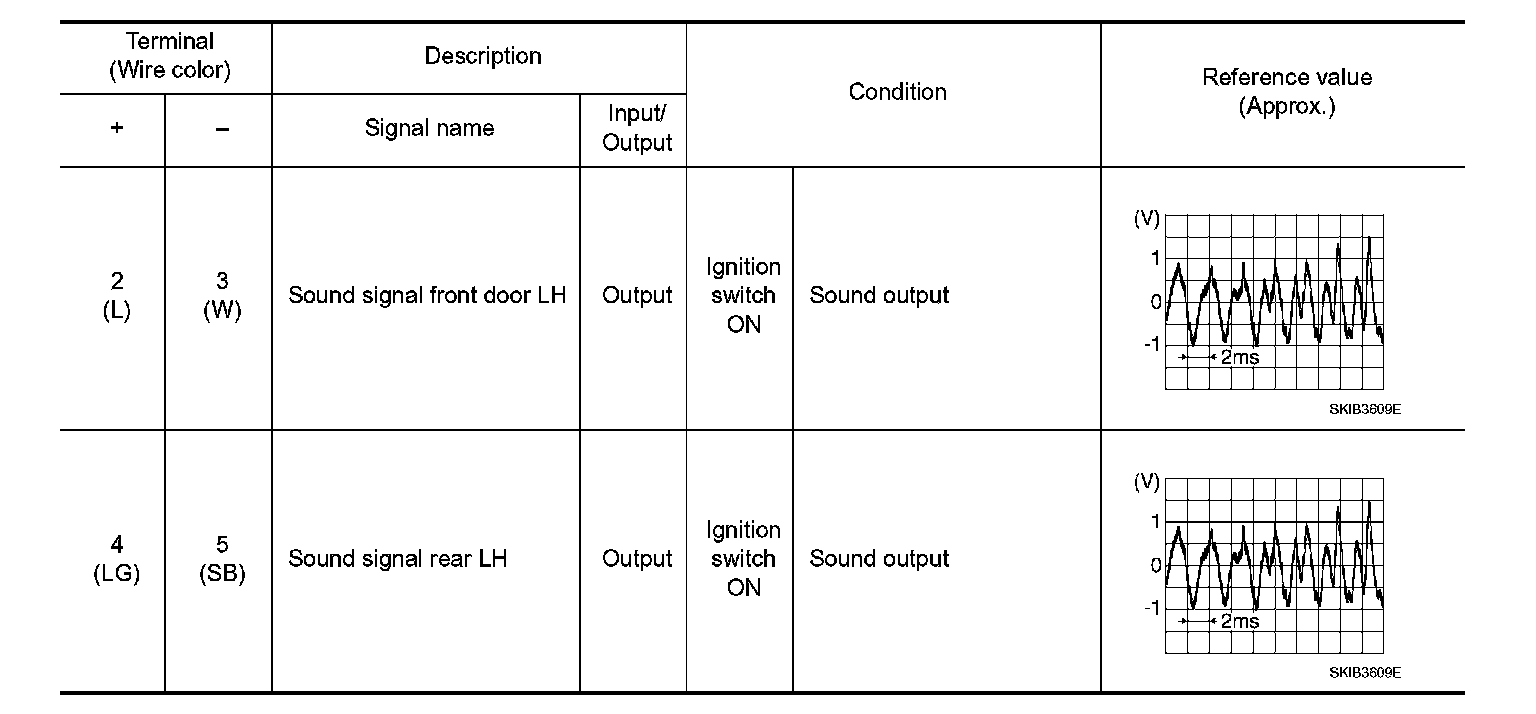

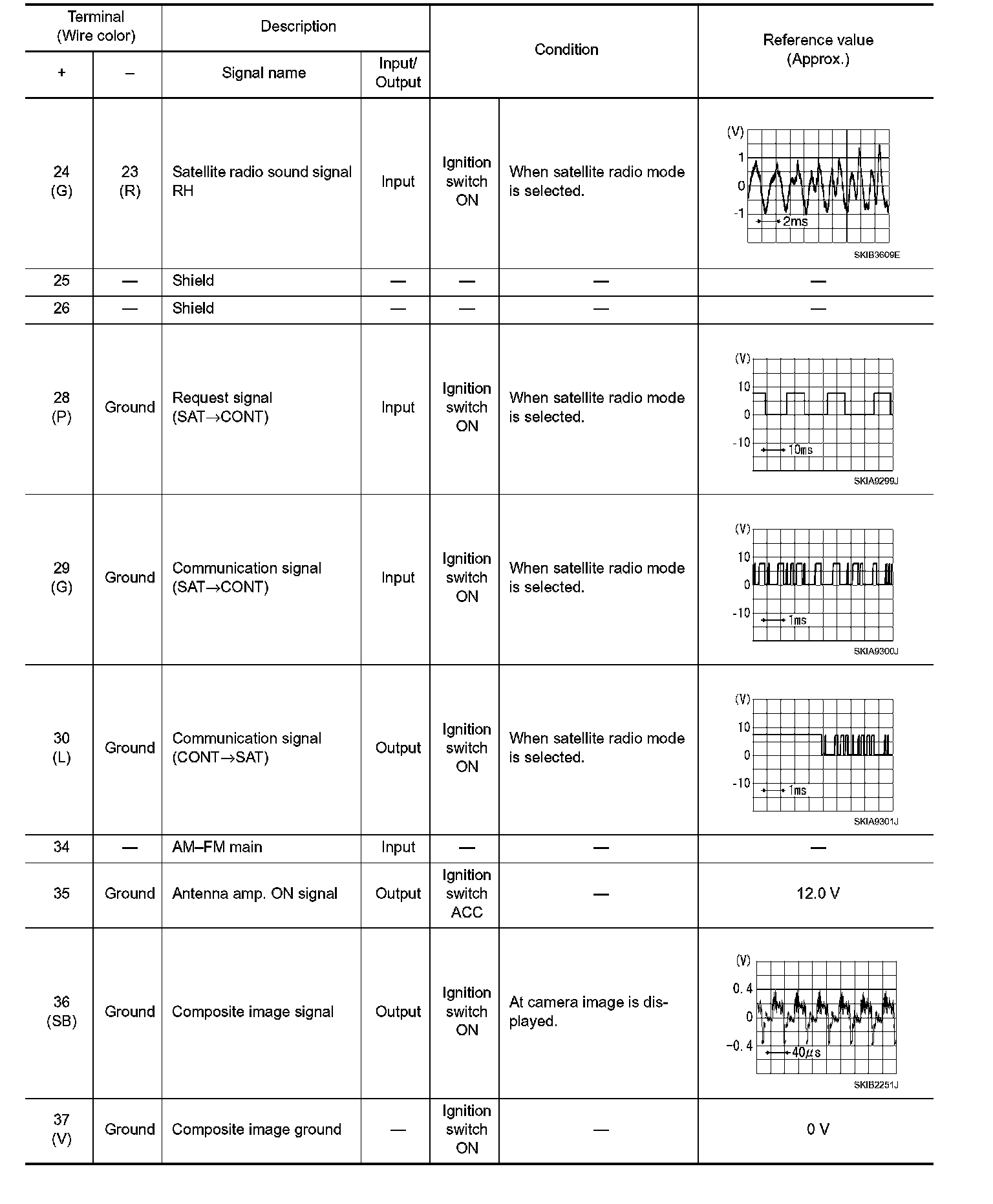

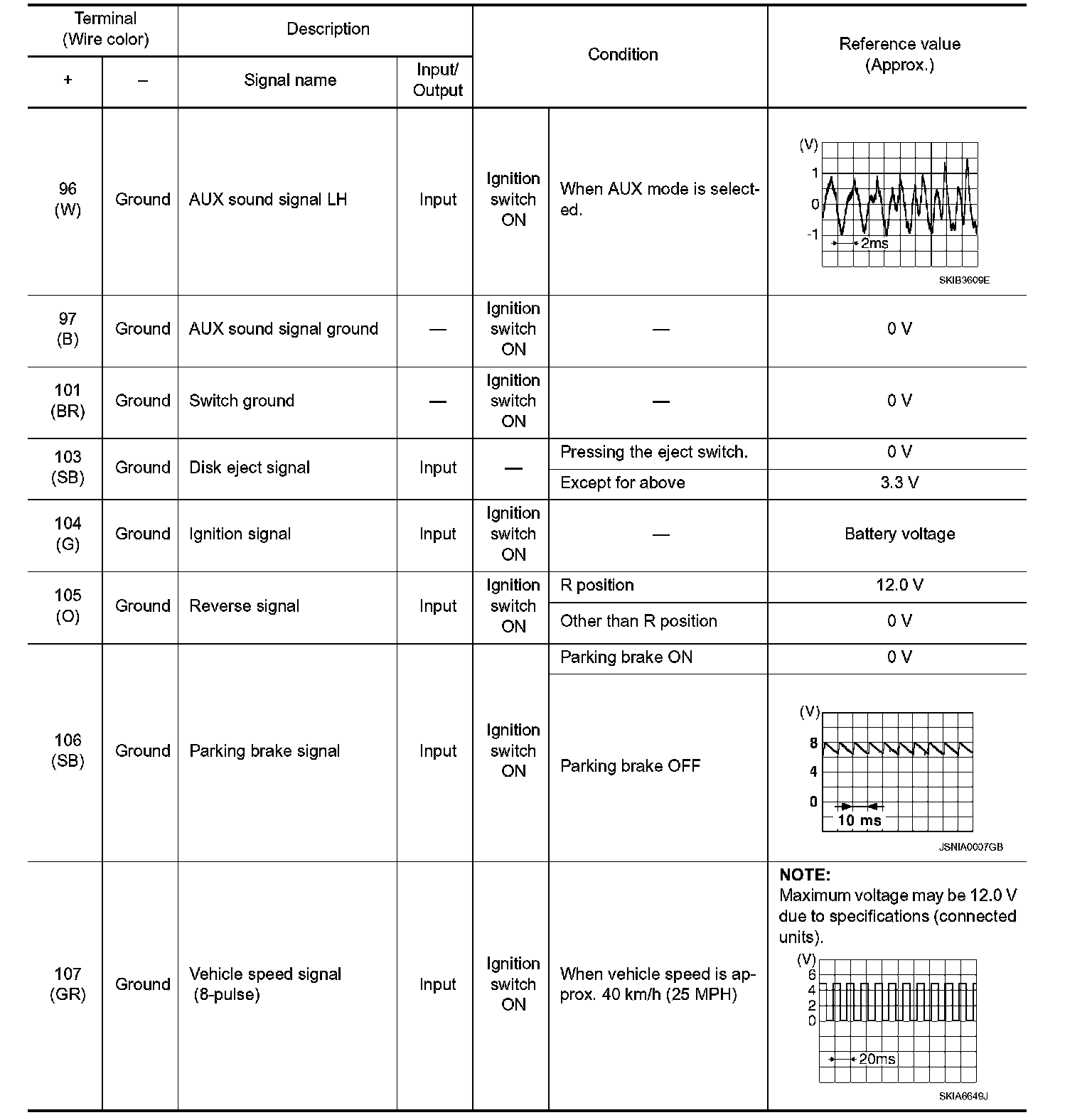

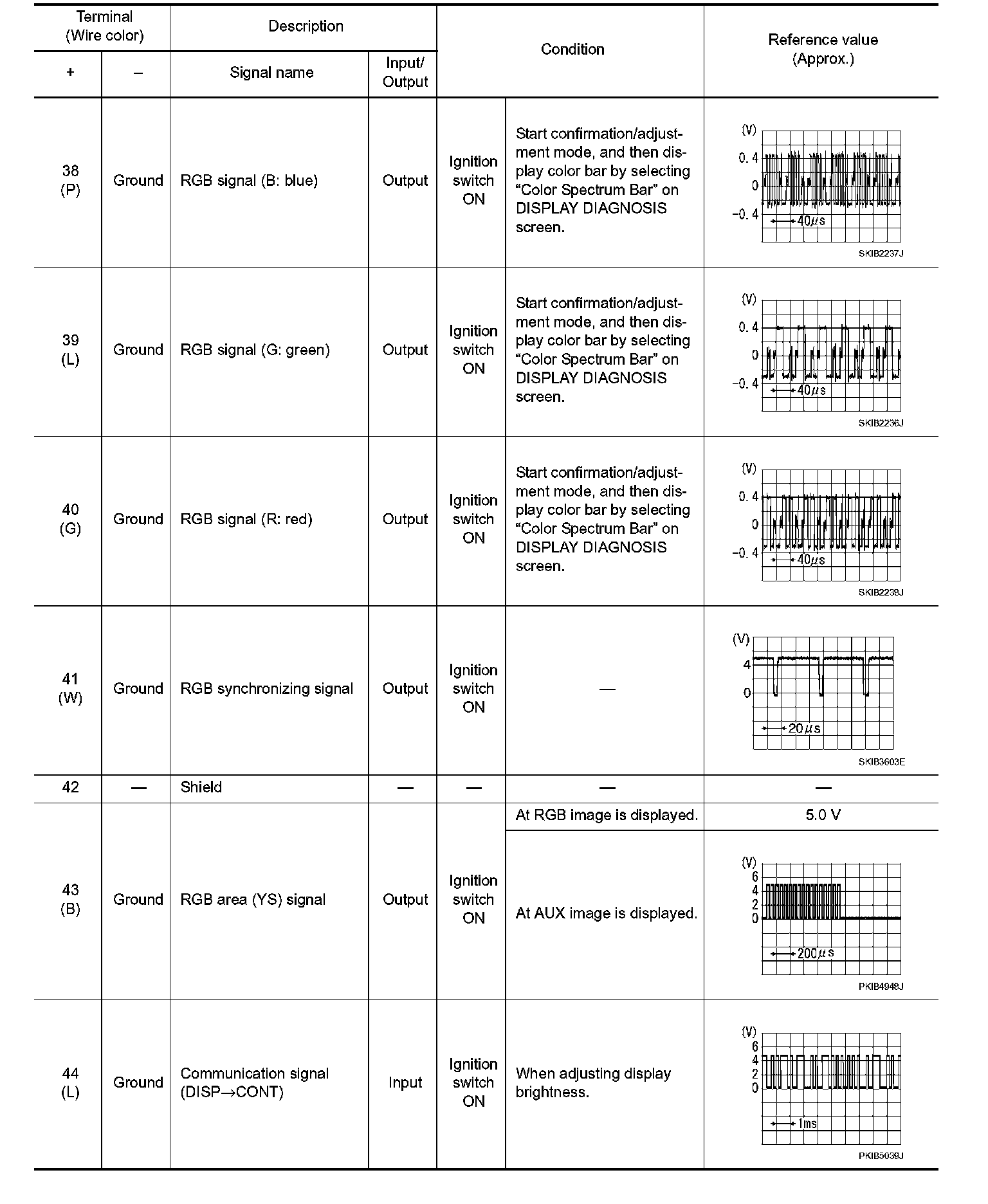

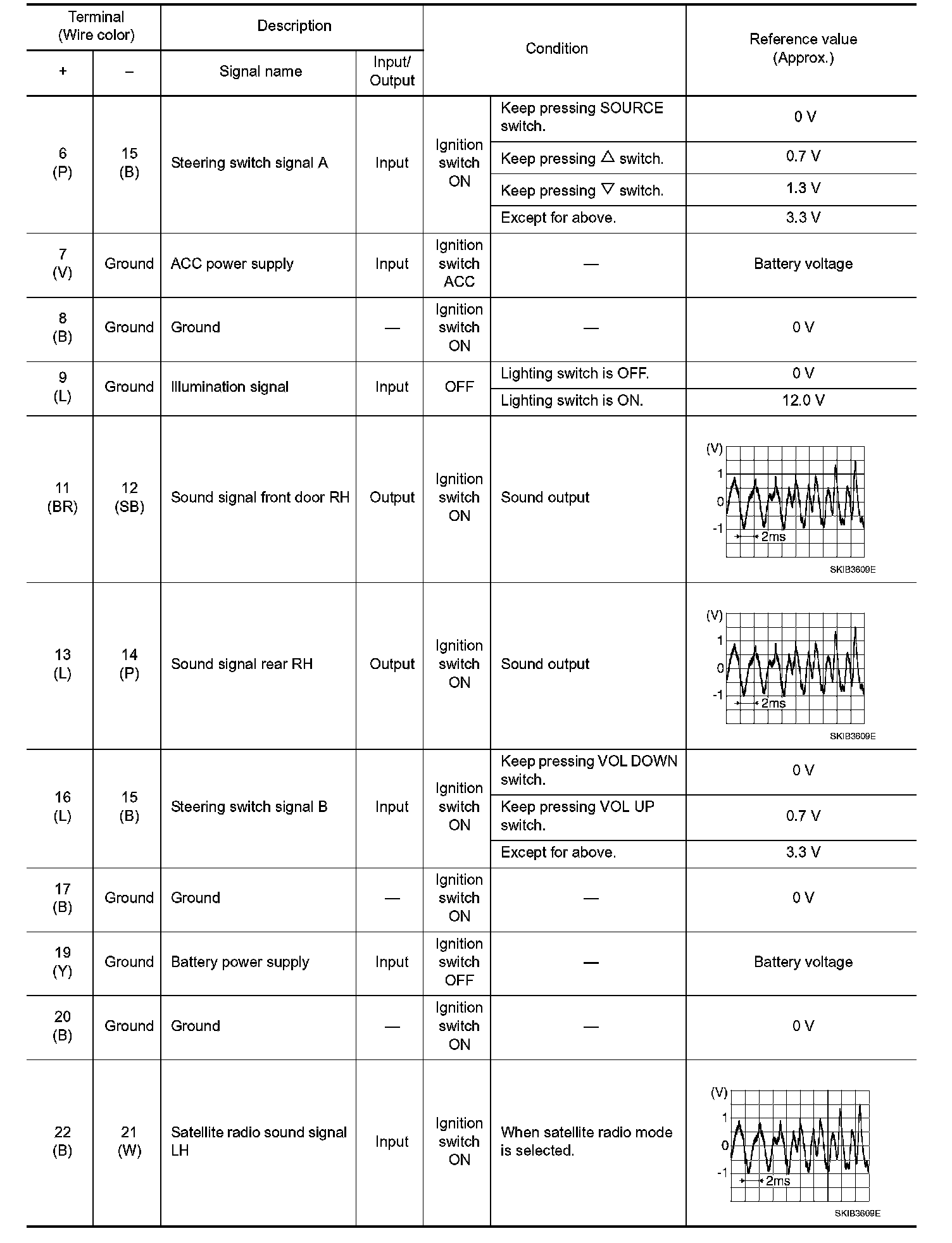

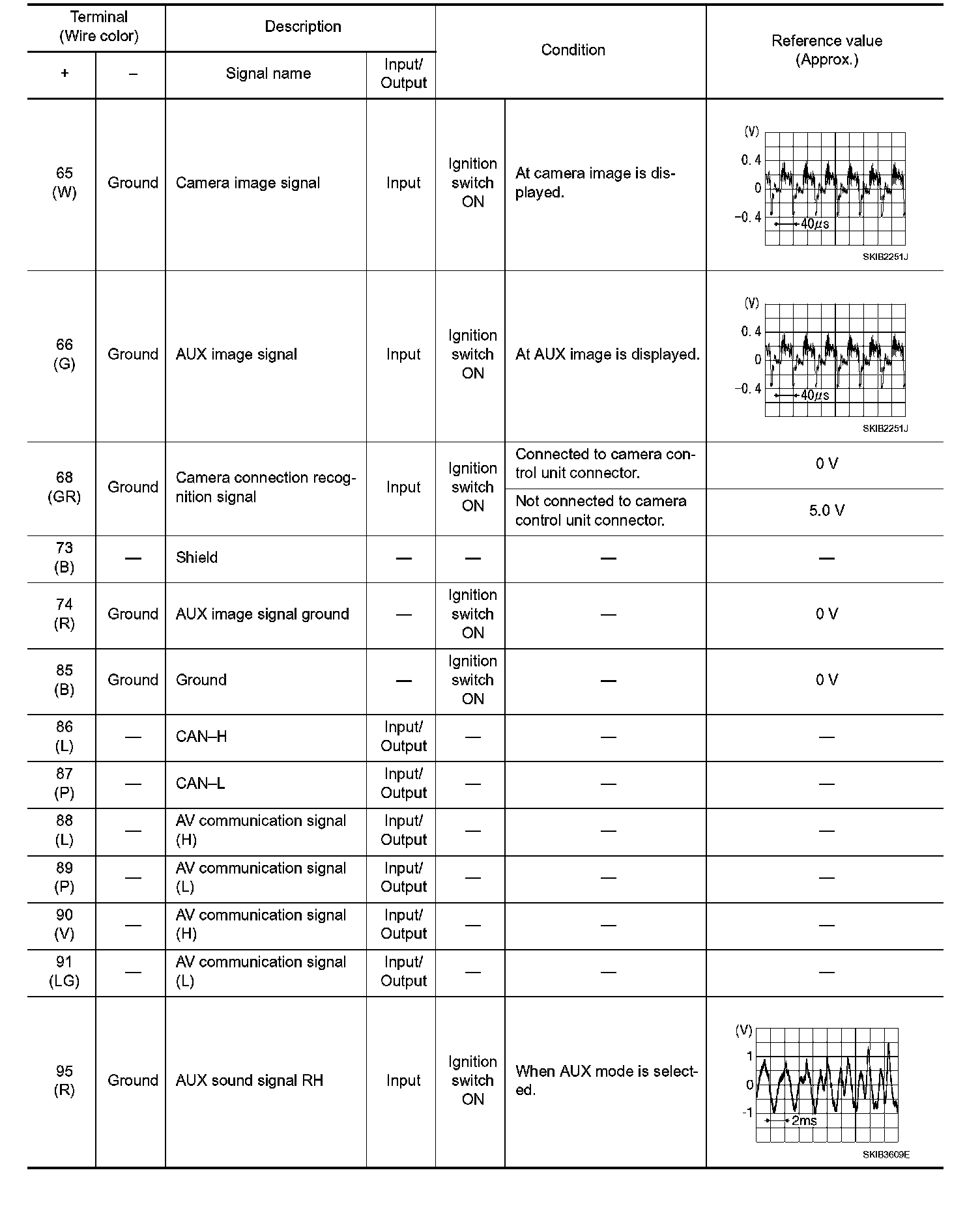

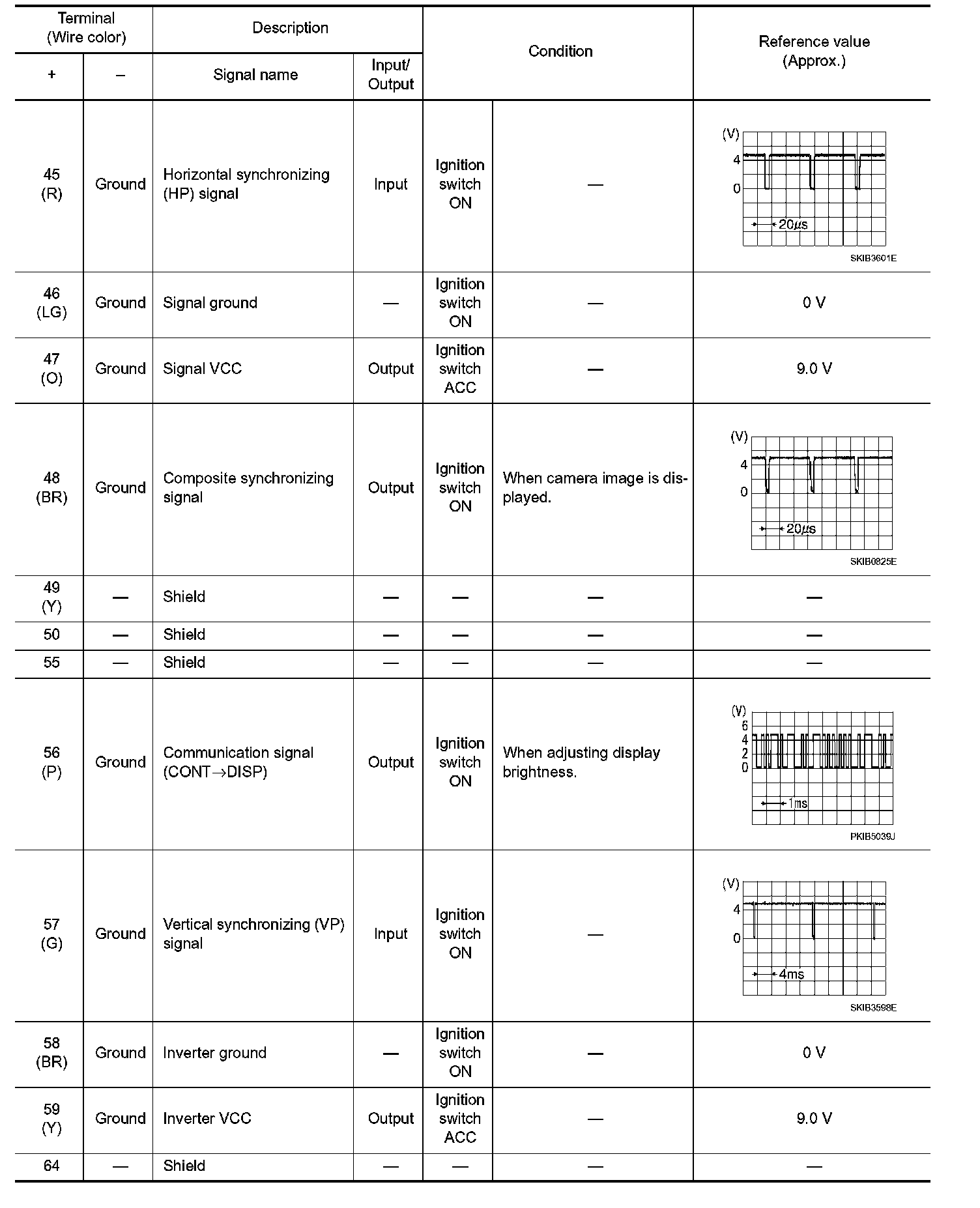

PHYSICAL VALUES
