Fuse Block - Junction Box (J/B) No.2
Fuse Block - Junction Box (J/B) No.2

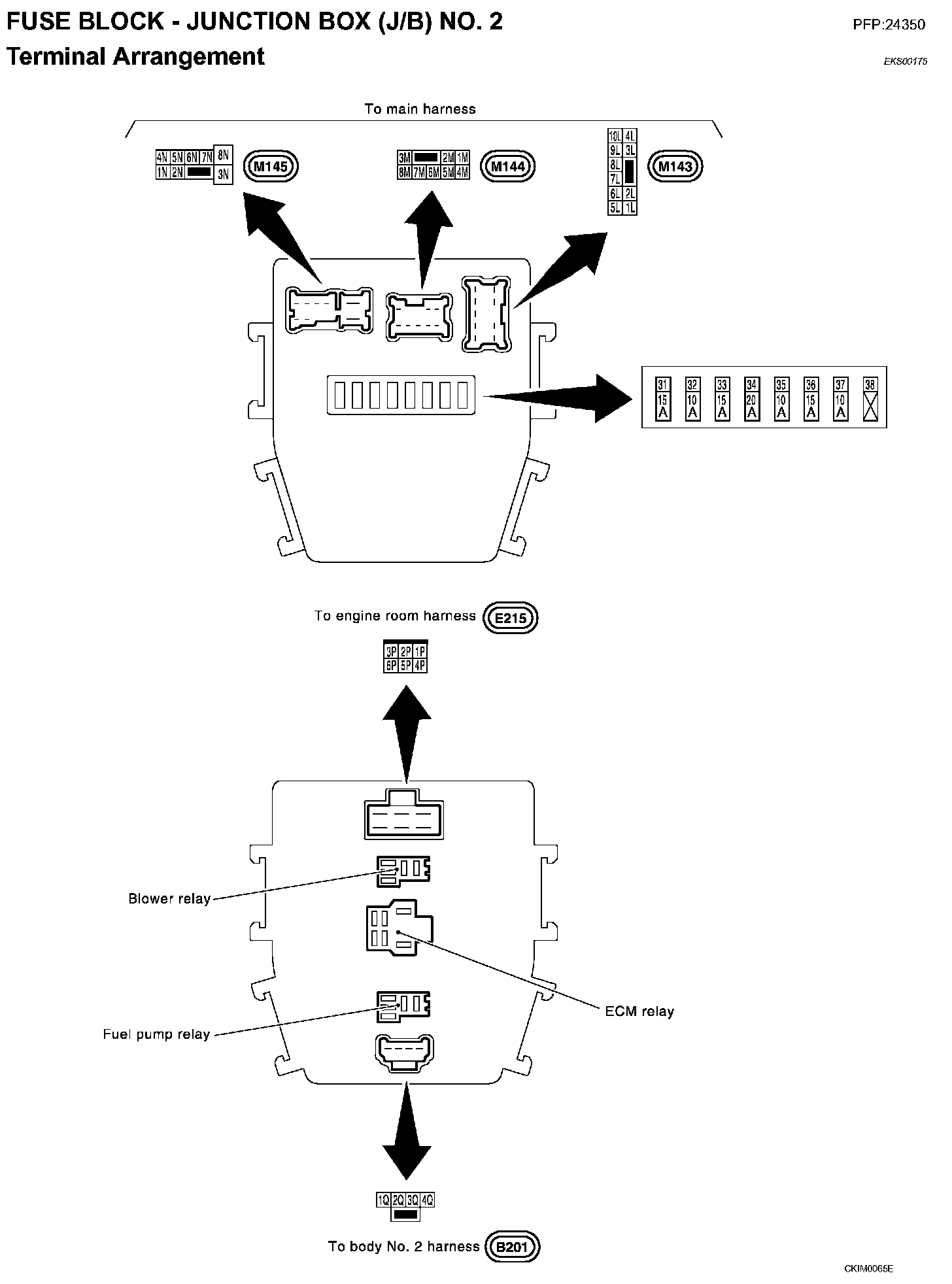

Fuse Block-Junction Box (J/B) No.2 - Terminal Arrangement:
