Without Transmitter Activation Tool

ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL
1. Turn ignition switch "OFF".
2. Connect CONSULT-II to data link connector.

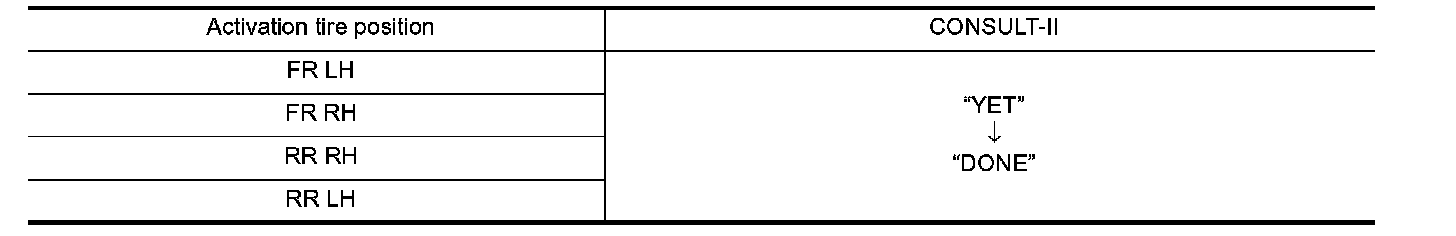

3. Touch "START", "AIR PRESSURE MONITOR", "WORK SUPPORT" and "ID REGIST".

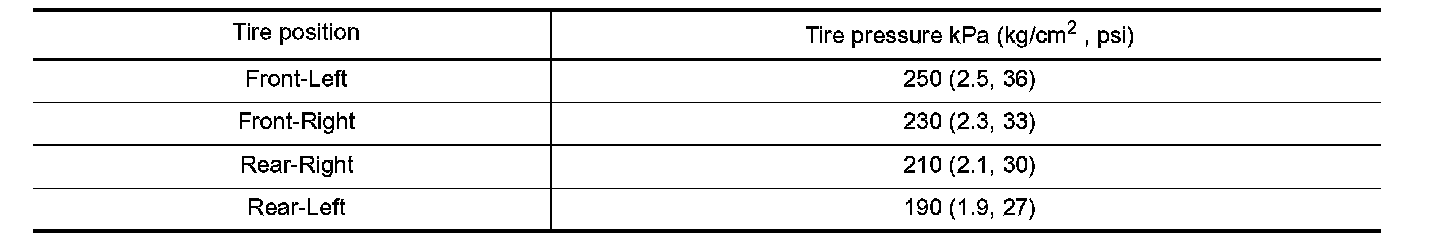

4. Adjust the tire pressure to the values shown in the table in the illustration for ID registration, and drive the vehicle at 15 km/h (9.4 MPH) or more for a few minutes.





5. After completing all ID registrations, press END to complete the procedure.
