Cabin Air Filter / Purifier: Service and Repair

IN-CABIN MICROFILTER

Removal and Installation




FUNCTION
Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit.

REPLACEMENT TIMING
Replace in-cabin microfilter.
Refer to "Chassis and Body Maintenance" in SCHEDULE 1 and SCHEDULE 2.

Caution label is fixed inside the glove box.


REPLACEMENT PROCEDURES
1. Remove the glove box assembly.

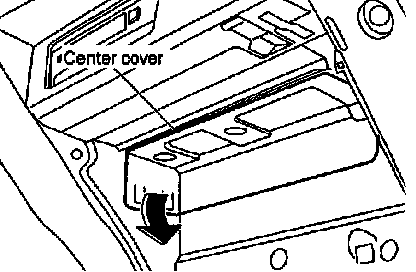

2. Remove the center cover of the glove box cover.

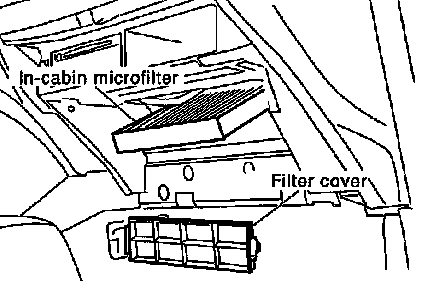

3. Remove filter cover and take out the in-cabin microfilter from blower unit.
4. Replace with new one and reinstall on blower unit.
5. Reinstall the glove box.
