Cowl: Service and Repair

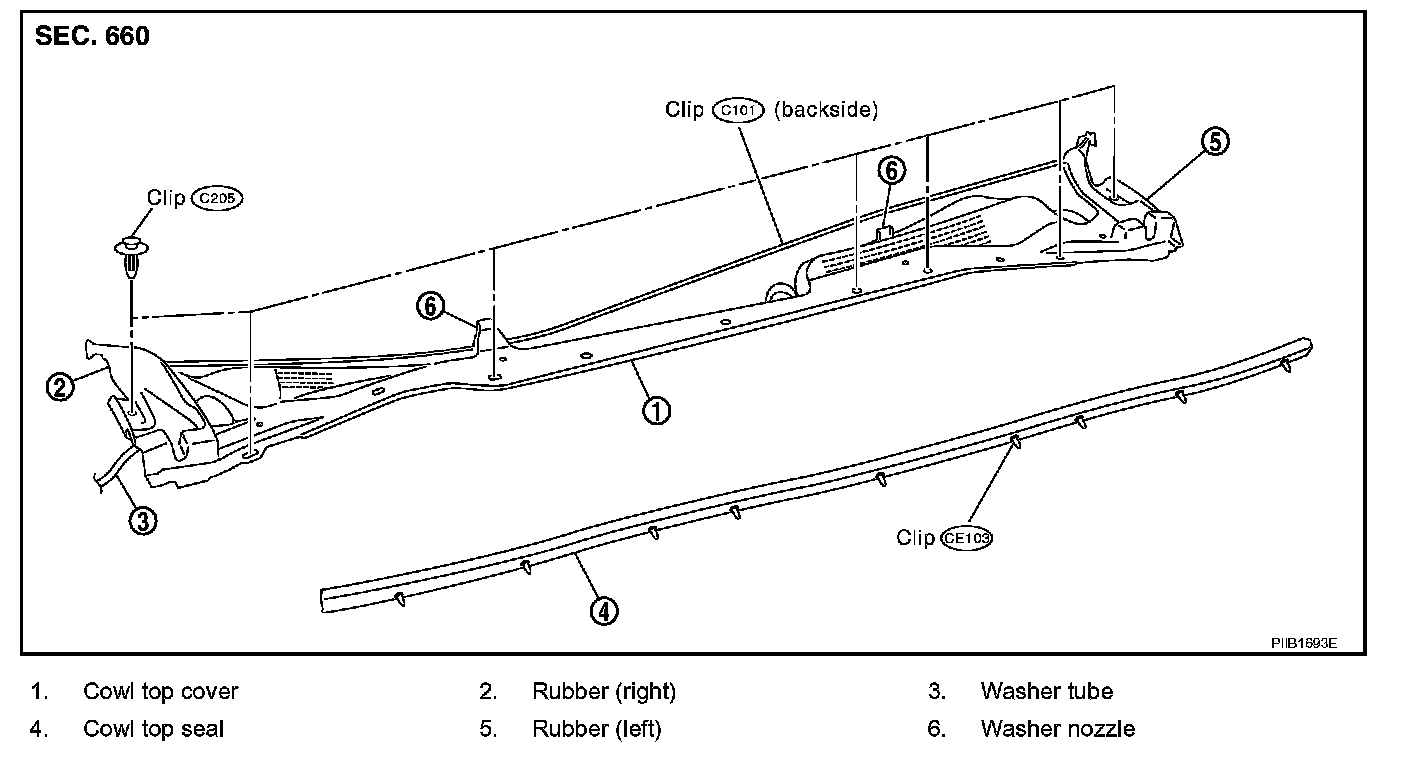

COWL TOP




Removal and Installation

REMOVAL
1. Remove both right/left wiper arms from vehicle. Refer to "Removal and Installation of Front Wiper Arms, Adjustment of Front Wiper Arms Stop Location".
2. Remove clips of both cowl top seal.
3. Remove cowl top cover clips, and remove cowl top cover assembly.

INSTALLATION
Install in the reverse order of removal.
