Trunk / Liftgate Interior Trim Panel: Service and Repair

TRUNK ROOM TRIM & TRUNK LID FINISHER




Removal and Installation

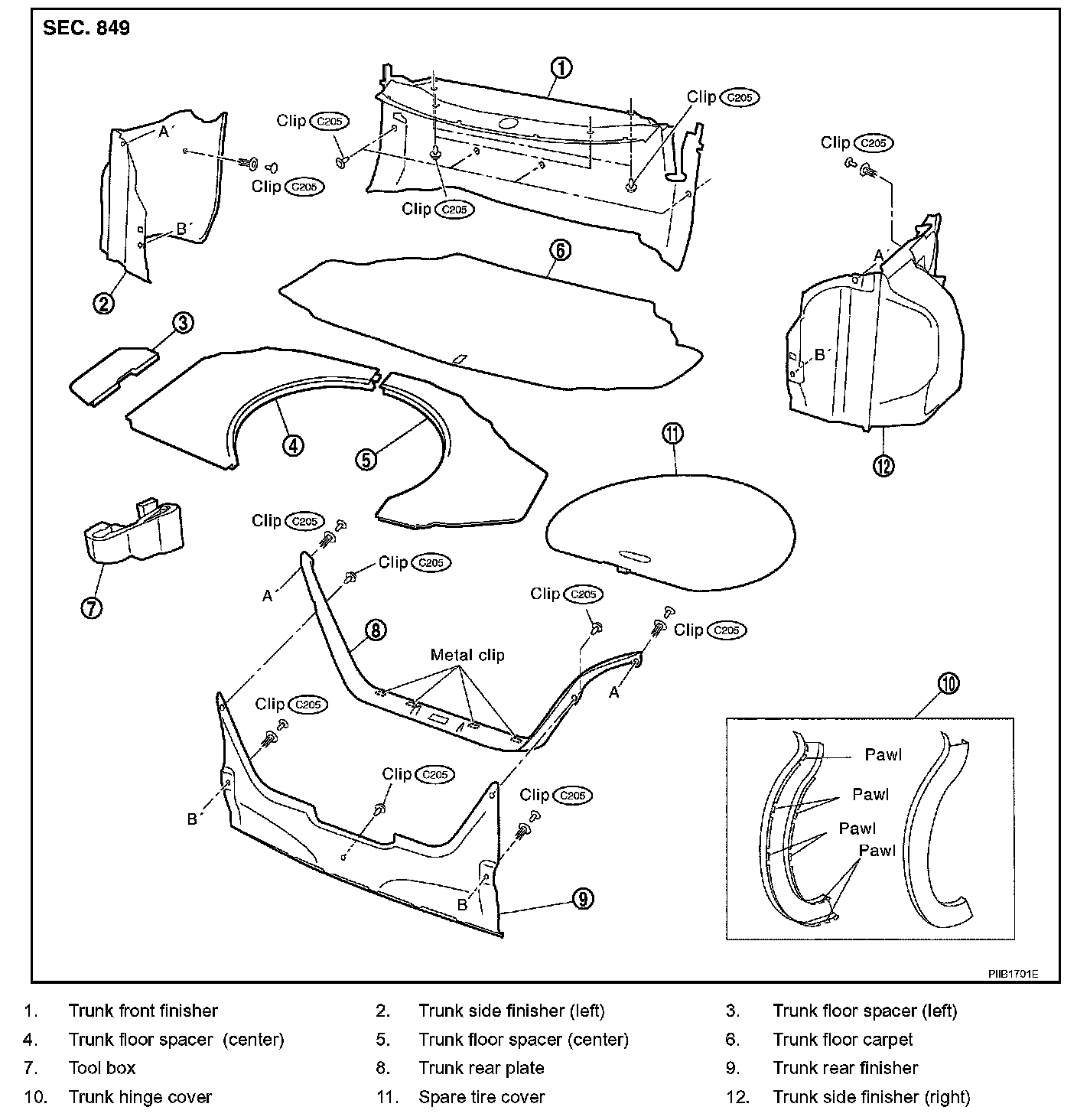

TRUNK ROOM TRIM

Removal
1. Open trunk lid fully.
2. Remove trunk floor carpet.
3. Remove spare tire cover.
4. Remove trunk floor spacer (left/center/right).
5. Remove tool box.
6. Remove trunk rear plate assembly clips.
7. Remove trunk rear finisher assembly clips.
8. Remove trunk front finisher assembly clips.
9. Remove trunk side finisher assembly clips (left/right).
10. Remove trunk hinge cover.

Installation
Install in the reverse order of removal.

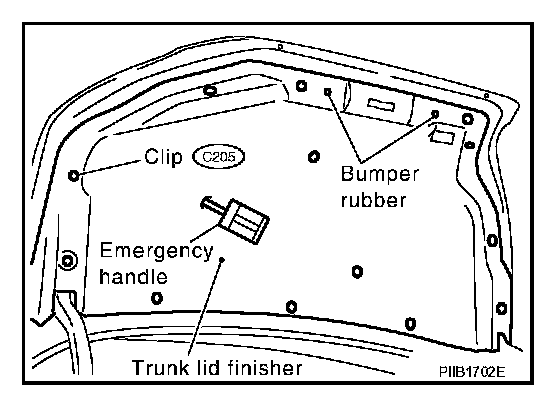

TRUNK LID FINISHER (INNER)

Removal
1. Remove emergency handle assembly.




2. Remove clips from trunk lid finisher (inner).
3. Remove trunk lid finisher (inner).

Installation
Install in the reverse order of removal.
