Shifter A/T: Service and Repair

SHIFT CONTROL SYSTEM

Control Device Removal and Installation

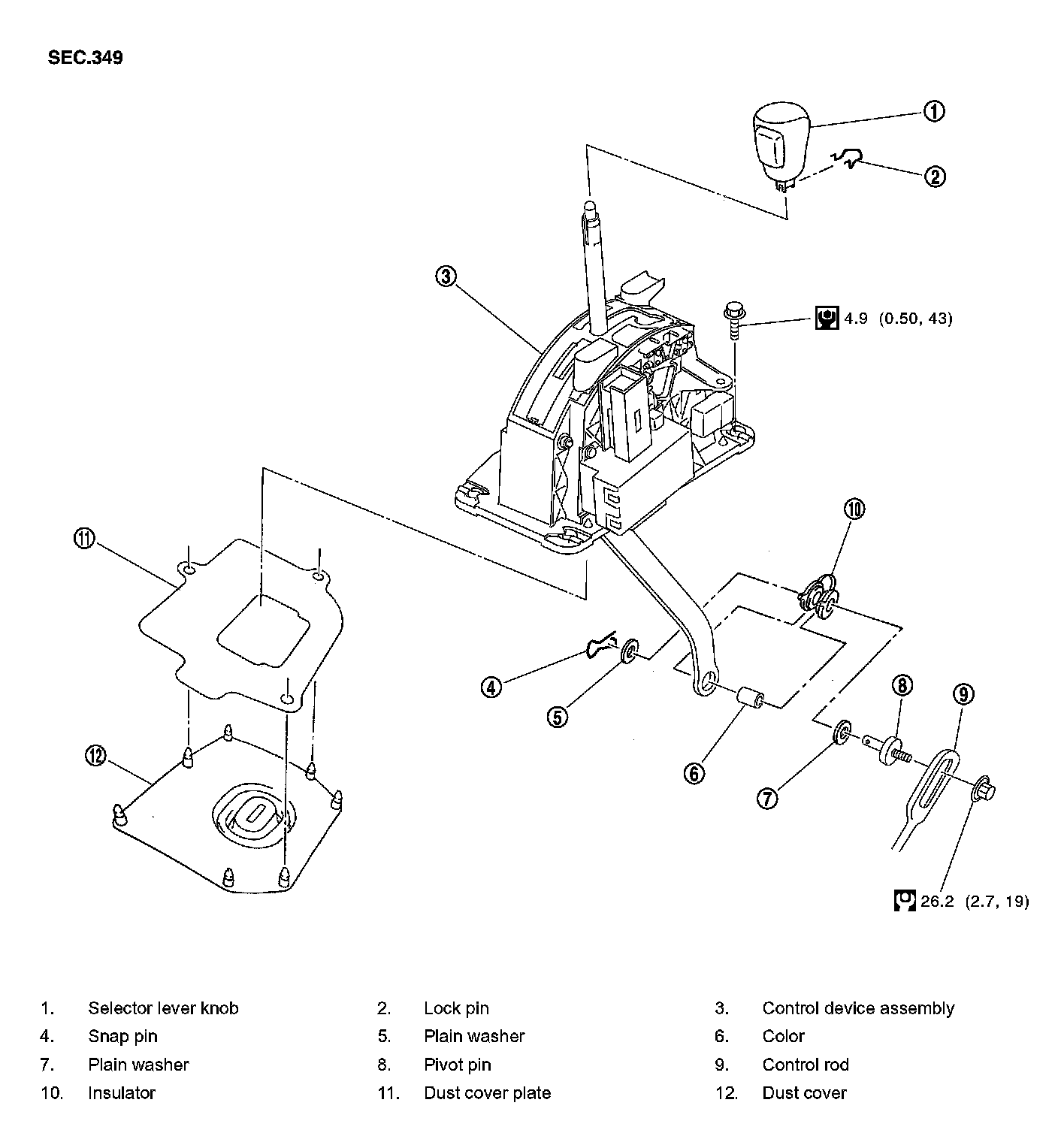

CONTROL DEVICE COMPONENTS (2WD MODELS):

REMOVAL
1. Disconnect lower lever of control device and control rod.
2. Move selector lever to "N" position.

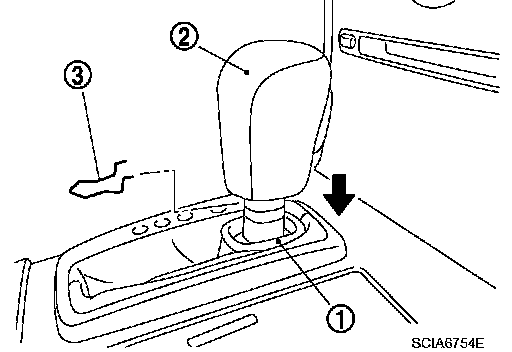

3. Remove knob cover (1) below selector lever downward.
4. Pull lock pin (3) out of selector lever knob (2).
5. Remove selector lever knob (2).
6. Remove cup holder, switch finisher, cluster lid C and A/T console finisher.
7. Remove center console.
8. Disconnect A/T device harness connector.
9. Remove control device assembly.

INSTALLATION
Note the following, and install in the reverse order of removal.
^ After installation is completed, adjust and check A/T position.
