Power Steering Line/Hose: Service and Repair

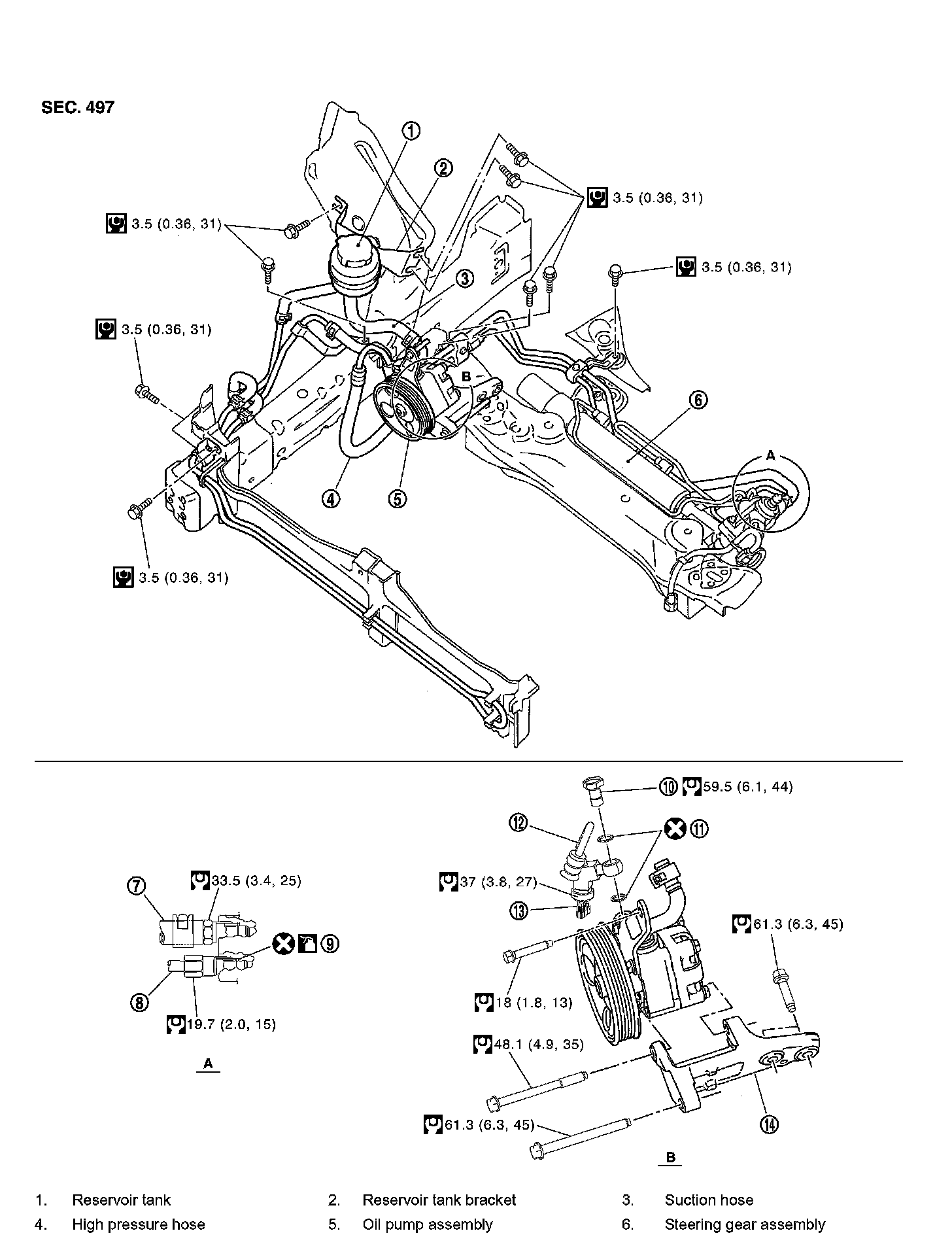

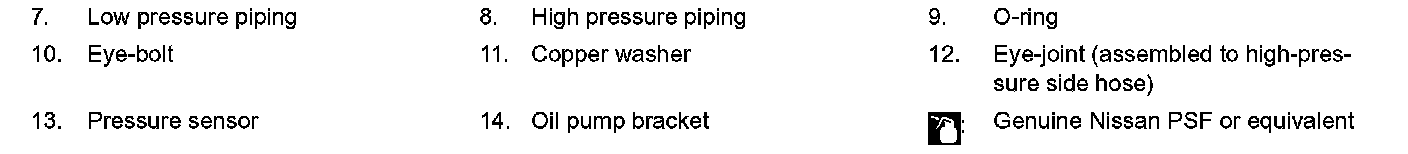

HYDRAULIC LINEComponent (Models with VQ35DE):
Component (Models with VQ35DE):
CAUTION: Securely insert harness connector to pressure sensor.

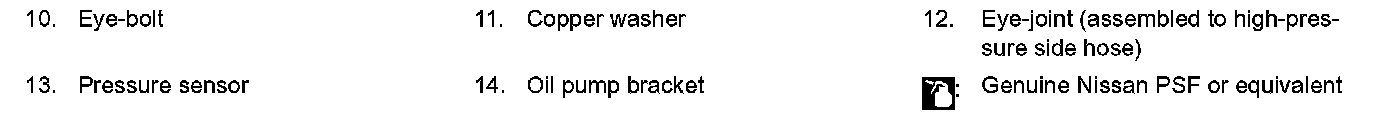

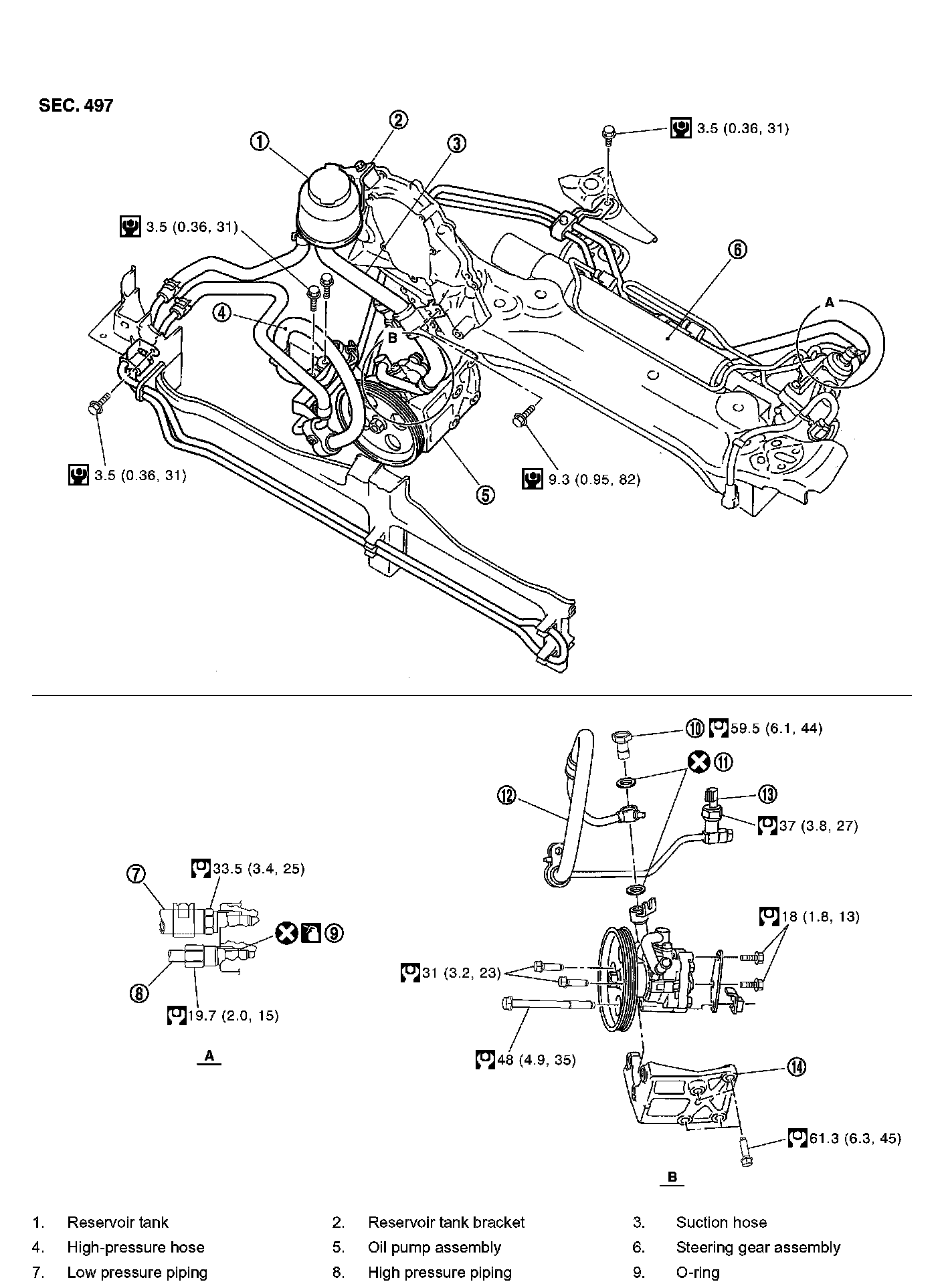

Component (Models with VQ35DE AWD):
Component (Models with VQ35DE AWD):
CAUTION: Securely insert harness connector to pressure sensor.

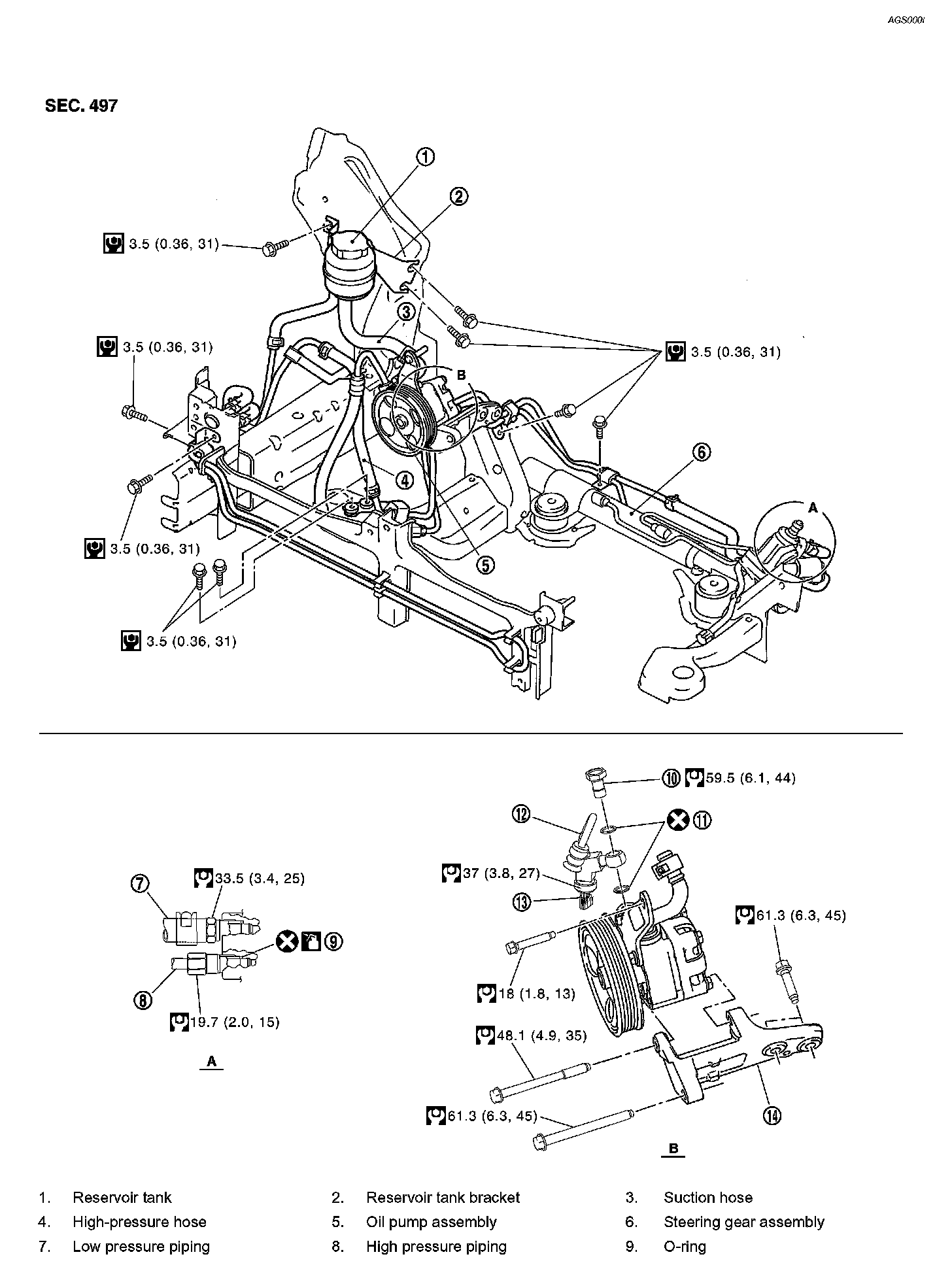

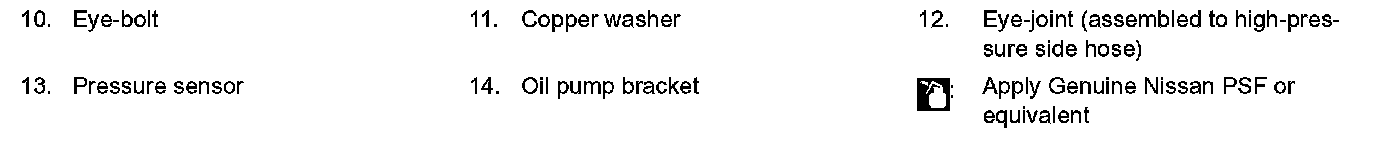

Component (Models with VK45DE):
Component (Models with VK45DE):
CAUTION: Securely insert harness connector to pressure sensor.
Removal and Installation

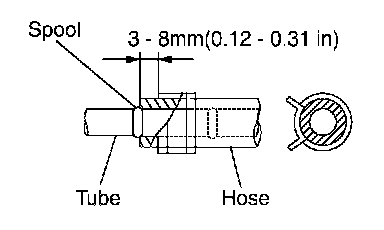

^ Insert hose securely until it contacts tube spool.
CAUTION: Do not apply fluid.

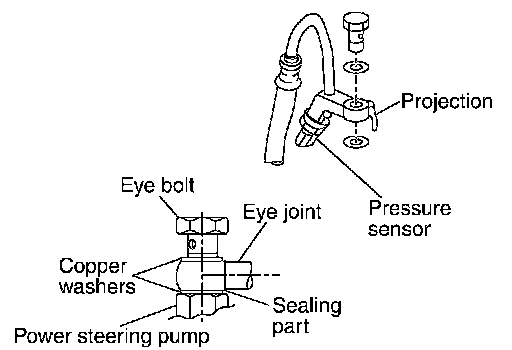

^ Install eye-bolt with eye-joint (assembled to high-pressure hose) protrusion facing with pump side cutout, and then tighten it to the specified torque after tightening by hand.
